R20-3000802
Hardware - Spacer (Standoff, Pillar)

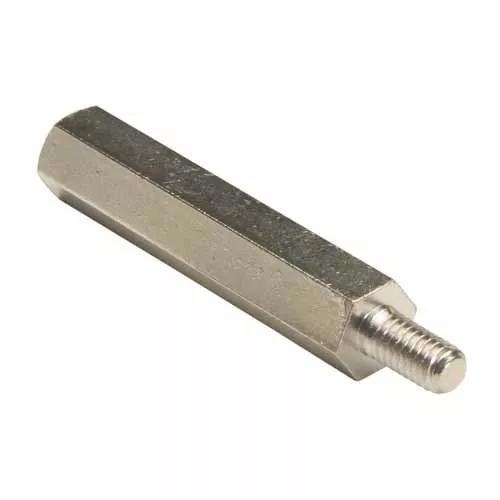

M2 Male/Female Threaded Hexagonal Brass Spacer.
4mm A/F across body, 8mm body length, 4mm male stud.
Nickel plating for corrosion resistance.
View Technical Details
Out of Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Weight:
0.945g
Dimensions:
12.00 x 4.00 A/F Hexagon
Body Length:
8.00mm
Stud Length:
4.00mm
Thread Size:
M2
Technical Drawing / Datasheet - R20-300.pdf
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R20-3000802 product
RoHS - R20-3000802
