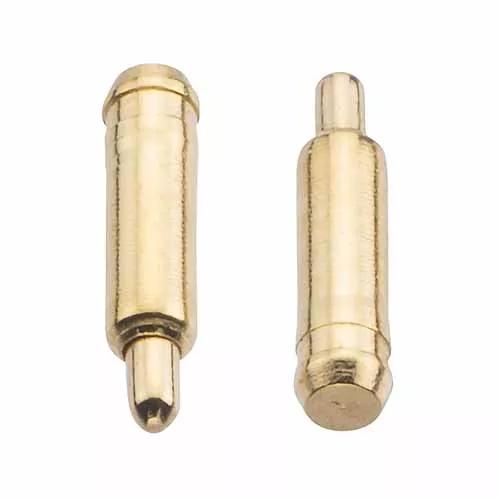

Individual SMT Spring Loaded Contact, Pogo Pin
Spring Loaded Contact - Pogo-Pin
- Surface Mount, 4.8mm free height. Gold finish on contact area and termination.
- Packaged loose.
- Mates with any contact surface, or Surface Mount Contact Pads S70 series.
EU RoHS Status:
Surface Mount (SMT)
-40°C to +85°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
4.80 x Ø1.14
Height of Connector above PCB:
Questions & Answers Ask a Question
I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?
These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.
What is the difference between the maximum height and the maximum working height? Is it conducting at maximum height?
At maximum height, the item has reached the limit of its travel. if any surface is making contact at maximum height, there is no spring force maintaining a positive contact – any tiny amount of movement might cause disconnection from the mating surface. At the maximum working height, the contact is maintaining a good electrical contact to the mating surface with a positive spring force.
P70-5100045 CAD Model (ZIP file containing STP and IGES)Download
