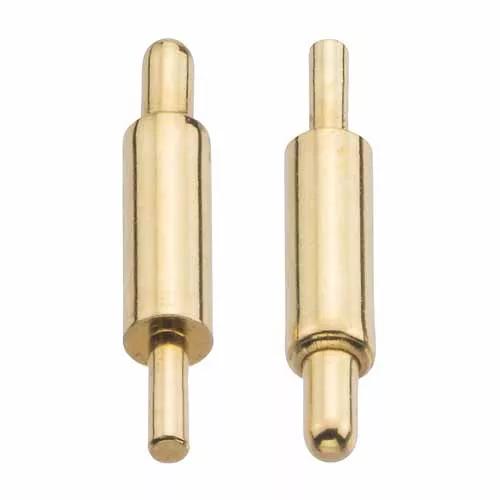

Surface Mount with location peg or PC Tail mounting, 6.2mm free height and 4.9mm working height.
Gold finish on contact area and termination. Packaged in Tape & Reel, with Pick & Place cap.
Mates with any contact surface, or Surface Mount Contact Pads S70 series.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Vertical
Country of Origin
CN
Number of Signal Contacts
1
Operating Temperature
-40°C to +85°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
2A
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
No
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Brass
Packaging Style
Tape and Reel
Finish / Plating on Termination
Gold
Dimensions
Weight
0.083g
Dimensions
8.40 x Ø1.50
PC Tail Length
2.20mm
Height of Connector above PCB
6.20mm
Downloads
Product Information
Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)
Pogo Pins - graph of complete range of heights and compression
Product Datasheet - POGOPINS: Pogo Pins and Contact Pads (EZi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for P70-2300045R product
RoHS Declaration - P70-2300045R
