Home > P70-2200045
Active

P70-2200045

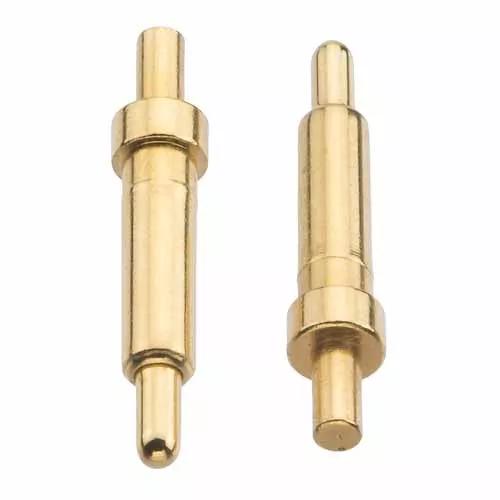

Individual SMT Spring Loaded Pogo Pin with Peg, 8.2mm

Spring Loaded Contact - Pogo-Pin

  • Surface Mount with location peg or PC Tail mounting, 8.2mm free height and 7.1mm working height.
  • Gold finish on contact area and termination. Packaged loose.
  • Mates with any contact surface, or Surface Mount Contact Pads S70 series.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.081g

Overall Dimensions (L x W x D) in mm:

10.30 x Ø2.00

Height of Connector above PCB:

8.20mm

Length of Throughboard Tail:

2.10mm

Availability

22,985 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 10930
Distributor Farnell
Location Europe
Quantity (Updated Daily) 8935
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1000
Distributor Newark
Location USA
Quantity (Updated Daily) 880
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 706
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 534

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?

These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.

What is the difference between the maximum height and the maximum working height? Is it conducting at maximum height?

At maximum height, the item has reached the limit of its travel. if any surface is making contact at maximum height, there is no spring force maintaining a positive contact – any tiny amount of movement might cause disconnection from the mating surface. At the maximum working height, the contact is maintaining a good electrical contact to the mating surface with a positive spring force.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

INSTRUCTION SHEETS

OTHER DOWNLOADS
