Home > P70-2100045R
Active Product

P70-2100045R

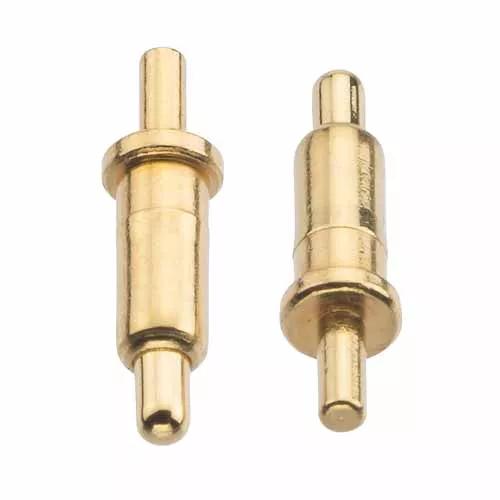

Individual SMT Spring Loaded Pogo Pin with Peg, 5.5mm

Spring Loaded Contact - Pogo-Pin

Add to Favorites

Loading…   Check availability

9 similar products View products

Traceparts account required

Product Description

  • Surface Mount with location peg or PC Tail mounting, 5.5mm free height and 4.5mm working height.
  • Gold finish on contact area and termination. Packaged in Tape & Reel, with Pick & Place cap.
  • Mates with any contact surface, or Surface Mount Contact Pads S70 series.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.087g

Overall Dimensions (L x W x D) in mm:

7.50 x Ø2.00

Height of Connector above PCB:

5.50mm

Length of Throughboard Tail:

2.00mm

Frequently Asked Questions Ask a Question

On the reel, are the caps covering the pins for Pick & Place suitable for a reflow process?

The material used for the pick and place cap is a high temperature plastic made from Polyamide (Nylon) 46 – this will withstand a reflow soldering process.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?

These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.

Was this answer useful?

What is the difference between the maximum height and the maximum working height? Is it conducting at maximum height?

At maximum height, the item has reached the limit of its travel. if any surface is making contact at maximum height, there is no spring force maintaining a positive contact – any tiny amount of movement might cause disconnection from the mating surface. At the maximum working height, the contact is maintaining a good electrical contact to the mating surface with a positive spring force.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
