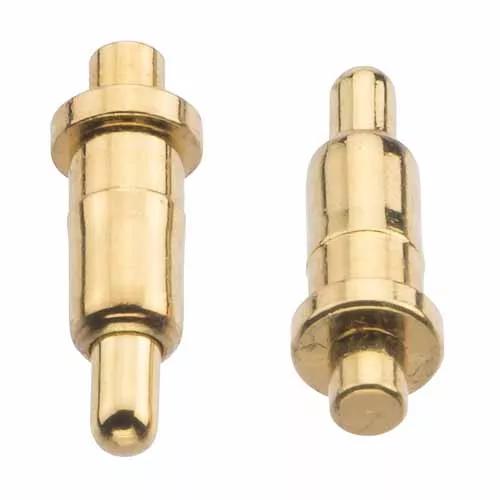

Individual SMT Spring Loaded Pogo Pin with Peg, 5mm
Spring Loaded Contact - Pogo-Pin
- Surface Mount with location peg or PC Tail mounting, 5mm free height and 4mm working height.
- Gold finish on contact area and termination. Packaged in Tape & Reel, with Pick & Place cap.
- Mates with any contact surface, or Surface Mount Contact Pads S70 series.
EU RoHS Status:
Surface Mount (SMT)
-40°C to +85°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
6.00 x Ø2.00
Height of Connector above PCB:
Length of Throughboard Tail:
19,174 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?
These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.
What is the difference between the maximum height and the maximum working height? Is it conducting at maximum height?
At maximum height, the item has reached the limit of its travel. if any surface is making contact at maximum height, there is no spring force maintaining a positive contact – any tiny amount of movement might cause disconnection from the mating surface. At the maximum working height, the contact is maintaining a good electrical contact to the mating surface with a positive spring force.
P70-2010045R CAD Model (ZIP file containing STP and IGES)Download
