P70-1030045R

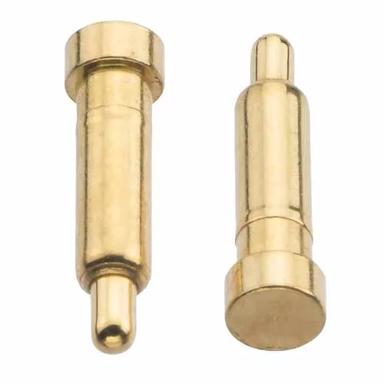

Individual SMT Spring Loaded Contact, Pogo Pin

Spring Loaded Contact - Pogo-Pin

  • Surface Mount, 7.3mm free height.
  • Packaged in Tape & Reel, with Pick & Place cap.
  • Mates with any contact surface, or Surface Mount Contact Pads S70 series.

Technical Details

Specification

Contact Gender:

Female/Spring Contact

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.094g

Overall Dimensions (L x W x D) in mm:

7.30 x Ø2.00

Height of Connector above PCB:

7.30mm

Availability

Distributor Location Quantity
Avnet Abacus
Europe
Status600
Digi-Key
Global
Status1147
Harwin
Europe
Status600
Mouser Electronics Inc
Global
Status1037
Newark
USA
Status185

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - P70-10X.pdf

ZIP

P70-1030045R CAD Model (ZIP file containing STP and IGES)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (24-Jul-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for P70-1030045R product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)

OTHER DOWNLOADS

PDF

Catalog page - Spring Loaded Contact (SMT)

PDF

Catalog page - Spring Loaded Contacts Specification
