P70-1020045R

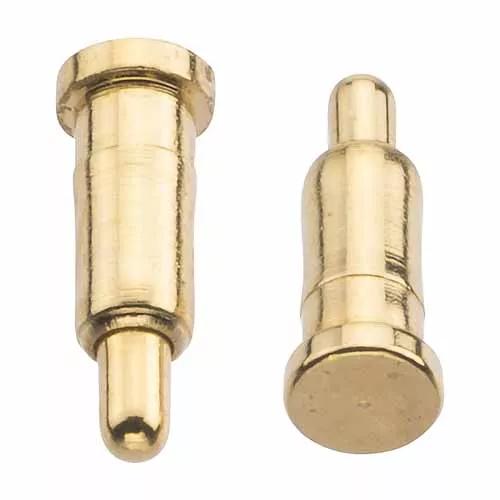

Individual SMT Spring Loaded Contact, Pogo Pin

Spring Loaded Contact - Pogo-Pin

  • Surface Mount, 5.5mm free height. Gold finish on contact area and termination.
  • Packaged in Tape & Reel, with Pick & Place cap.
  • Mates with any contact surface, or Surface Mount Contact Pads S70 series.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Spring Contact

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.077g

Overall Dimensions (L x W x D) in mm:

5.50 x Ø2.00

Height of Connector above PCB:

5.50mm

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status2089
Mouser Electronics Inc
Global
Status1787
Newark
USA
Status208

*Stock available: contact distributor to purchase
