P70-1000045R

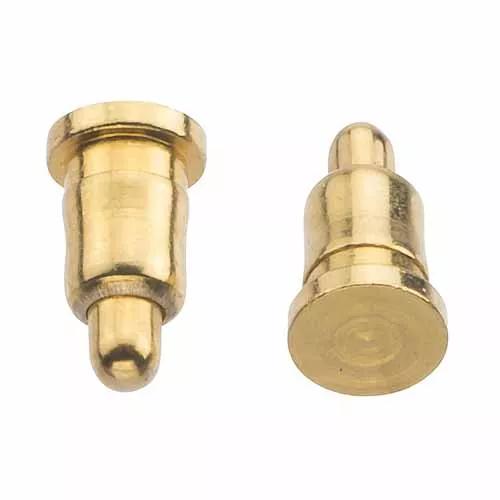

Individual SMT Spring Loaded Contact, Pogo Pin

Spring Loaded Contact - Pogo-Pin

  • Surface Mount, 3.5mm free height. Gold finish on contact area and termination.
  • Packaged in Tape & Reel, with Pick & Place cap.
  • Mates with any contact surface, or Surface Mount Contact Pads S70 series.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Spring Contact

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.063g

Overall Dimensions (L x W x D) in mm:

3.50 x Ø2.00

Height of Connector above PCB:

3.50mm

Availability

29,381 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 5370
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1593
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1400
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1400
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1224
Distributor Newark
Location USA
Quantity (Updated Daily) 194

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 18200

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?

These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.

What is the difference between the maximum height and the maximum working height? Is it conducting at maximum height?

At maximum height, the item has reached the limit of its travel. if any surface is making contact at maximum height, there is no spring force maintaining a positive contact – any tiny amount of movement might cause disconnection from the mating surface. At the maximum working height, the contact is maintaining a good electrical contact to the mating surface with a positive spring force.
