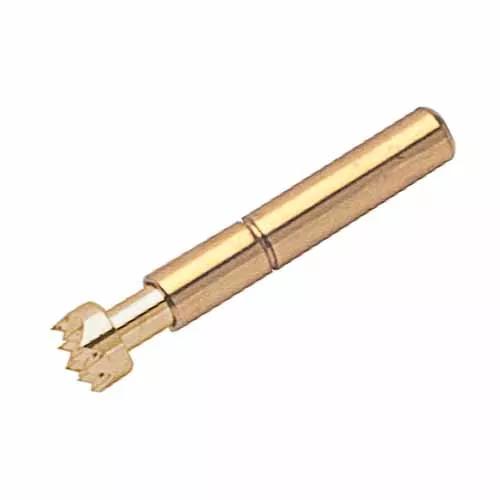

ATE Two-Part Spring Probe, 2.50mm Centres
ATE Spring Probe, Spring Contact, Test Probe
- Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Ø1.8mm Crown Head.
- Gold finish on probe head and body.
- Use with receptacle / sleeve S25-501.
EU RoHS Status:
PC Tail / Throughboard
-40°C to +180°C
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper plunger, Brass barrel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.00 x Ø1.80
672 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
