P25-0126

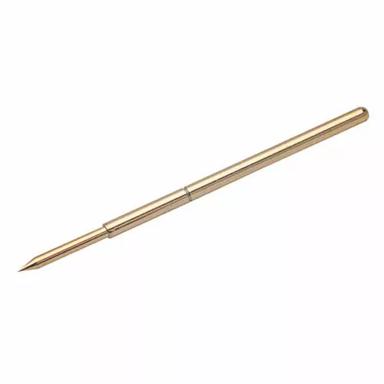

ATE Two-Part Spring Probe, 2.50mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Spear Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S25-346 or S25-546.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A max

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Phosphor Bronze shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.22g

Overall Dimensions (L x W x D) in mm:

33.30 x Ø1.36

Availability

1,470 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 954
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 345
Distributor Newark
Location USA
Quantity (Updated Daily) 171

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
