P19-4021

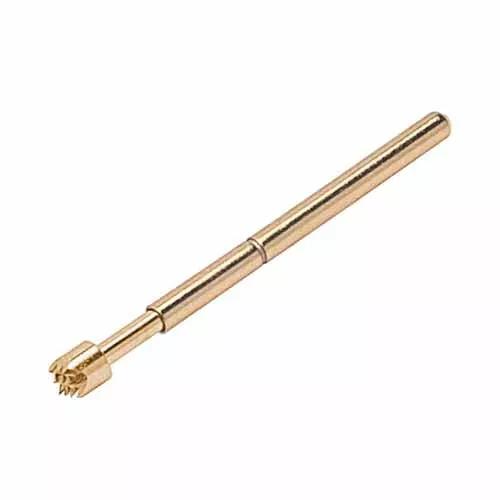

Two Part Spring Probe, 1.90mm minimum pitch, √ò1.5mm Serrated Head


ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 1.90mm minimum pitch, √ò1.5mm Serrated Head.

  • Gold finish on probe head and body.

  • Use with receptacle / sleeve S19-501.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper plunger, Brass barrel

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    3A

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.075g

  • Dimensions:

    17.04 x √ò1.50

  • Operating Temperature:

    -40°C to +180°C

Downloads

    Environmental Compliance

  • RoHS - P19-4021

  • Material composition for P19-4021 product

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - P19-XX21.pdf

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-41 - ATE Spring Probes Instruction Sheet

  • ATE Test Probes - graph of complete range of heights and compression

  • Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)
