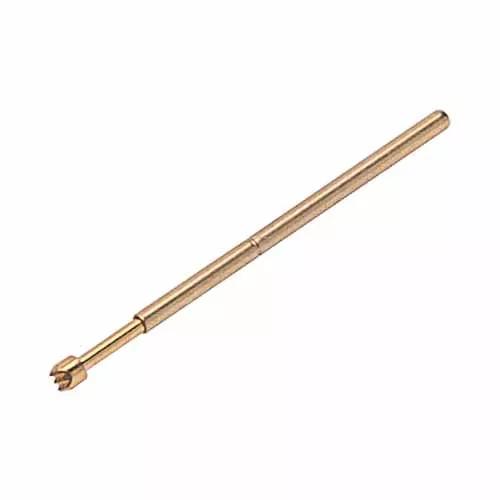

Two Part Spring Probe, 1.27mm minimum pitch, Ø0.9mm Serrated Head

EZi

Traceparts account required

P13-4023

Two Part Spring Probe, 1.27mm minimum pitch, Ø0.9mm Serrated Head


ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 1.27mm (0.05") minimum pitch, Ø0.9mm Serrated Head.

  • Gold finish on probe head and body.

  • Use with receptacle / sleeve S13-503.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • Connector Orientation:

    Vertical

  • Country of Origin:

    TW

  • Operating Temperature:

    -40°C to +180°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    1.5A

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper plunger, Phosphor Bronze shell

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

Dimensions

  • Weight:

    0.033g

  • Dimensions:

    16.55 x Ø0.90

Downloads

    Product Information

  • IS-41 - ATE Spring Probes Instruction Sheet

  • ATE Test Probes - graph of complete range of heights and compression

  • Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)

  • Technical Documentation

  • Technical Drawing / Datasheet - P13-XX23.pdf

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - P13-4023

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
