Home > P1113CV3
Active Product

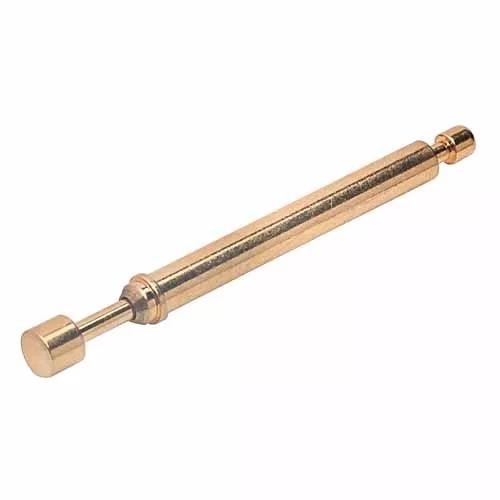

P1113CV3

ATE One-Part Spring Probe, 3.00mm Centres

ATE Spring Probe, Spring Contact, Test Probe

Add to Favorites

Made to order

1 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • One Part Spring Probe, 3mm minimum pitch, Ø2.39mm Convex Radius Head.
  • Gold finish on probe head and body.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

2A max

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass plunger, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.222g

Overall Dimensions (L x W x D) in mm:

27.00 x Ø2.55

Frequently Asked Questions Ask a Question

Is this a double or single side spring probe?

These probes are single-ended – the other end has a turned groove for wire-wrapping and soldering.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?
