M83-LMT2MHN18-0000-000

M83-LMT2MHN18-0000-000

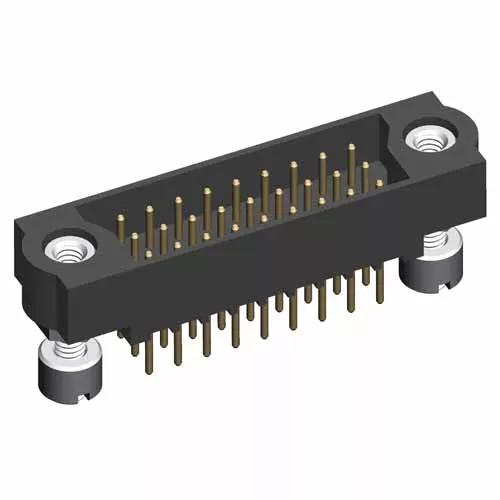

Datamate J-Tek 3-Row Male Vertical 4.5mm Throughboard Connector, gold, jackscrews + 6mm board mount, 3 x 6 contacts (18)

HRi

Traceparts account required

M83-LMT2MHN18-0000-000

Datamate J-Tek 3-Row Male Vertical 4.5mm Throughboard Connector, gold, jackscrews + 6mm board mount, 3 x 6 contacts (18)


2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row

  • Triple Row, 4.5mm PC Tail connector with 6mm board mount jackscrews - 18 contacts (3 x 6).

  • Gold finish on contact area and termination. Slotted nuts provided for assembly to board mount jackscrew. For spare board mount nuts, order M80-2130000B.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.5mm

  • Style of Jackscrews:

    Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    3

  • Number of Signal Contacts:

    18

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tray

  • Height of Connector above PCB:

    6.05mm

  • PC Tail Length:

    4.40mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    3.3A max individual contact, 3A max simultaneous (25°C)

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    2.573g

  • Dimensions:

    25.00 x 7.70 x 12.05

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:

    GB

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Black

  • Thread Size:

    M2

Downloads

    Environmental Compliance

  • RoHS - M83-LMT2MHN18-0000-000

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M83-LMT2MHNXX-0000-000.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Catalog page - Datamate J-Tek 3-Row Specification + Pin Numbering + Mating Profiles

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Test Reports

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
