  • M83-LMT1M3N54-0000-000 - 18 x 3-Row Male Vertical Throughboard Conn. Jackscrews

Representative image of product family.

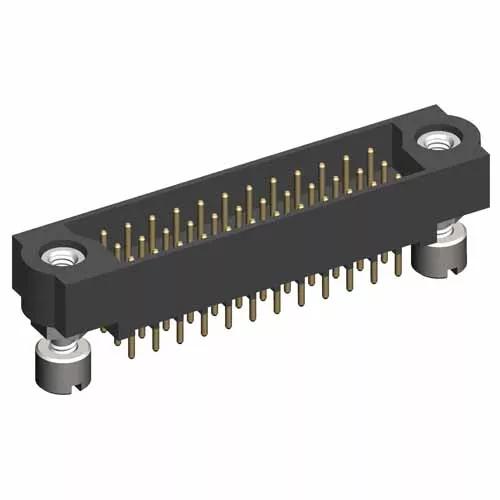

M83-LMT1M3N54-0000-000

18 x 3-Row Male Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row

  • Triple Row, 3mm PC Tail connector with 5mm board mount jackscrews - 54 contacts (3 x 18).
  • Gold finish on contact area and termination. Slotted nuts provided for assembly to panel mount jackscrew.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Mouser Electronics Inc Global 8 Buy Now

View more stock

Part Number Stock Count View Stock
M83-LMT1M3N54-0000-000 8 View Stock

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Maximum Soldering Temperature: 260°C for 10 seconds
Style of Jackscrews: Jackscrew with Board Mount

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 3.87g
Packaging Style: Tray

Dimensions

+
Number of Rows: 3
Total Number of Contacts: 54
Body Length: 49mm
Height of Connector above PCB: 6.05mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Mating Profiles/Heights

Related Products

+
Screwdriver (for board mount units): Z80-298
Product Family: M83-LMT1M3

Mating Products
