M83-LMT1M2N54-0000-000
18 x 3-Row Male Vertical Throughboard Conn. Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row
155 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description

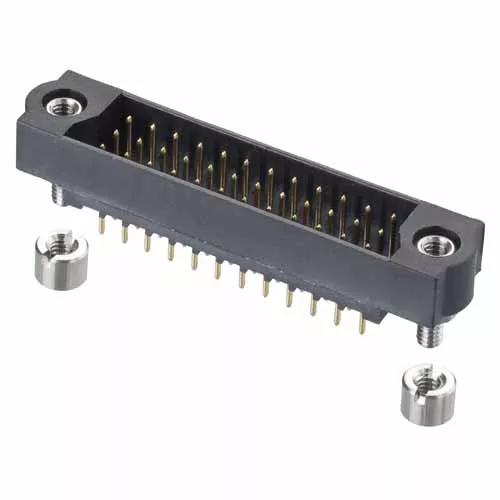

- Triple Row, 3mm PC Tail connector with 3.5mm board mount jackscrews – 54 contacts (3 x 18).
- Gold finish on contact area and termination. Slotted nuts provided for assembly to board mount jackscrew. For spare board mount nuts, order M80-2130000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
3
Number of Signal Contacts:
54
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tray
Dimensions
Individual Part Weight:
3.748g
Overall Dimensions (L x W x D) in mm:
49.00 x 7.70 x 9.55
Thread Size:
M2
Height of Connector above PCB:
6.05mm
Length of Throughboard Tail:
3.20mm
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
