M83-LML3M7N96-0000-000

32 x 3-Row Male Horizontal Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

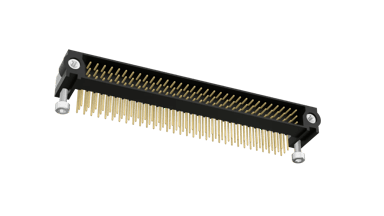

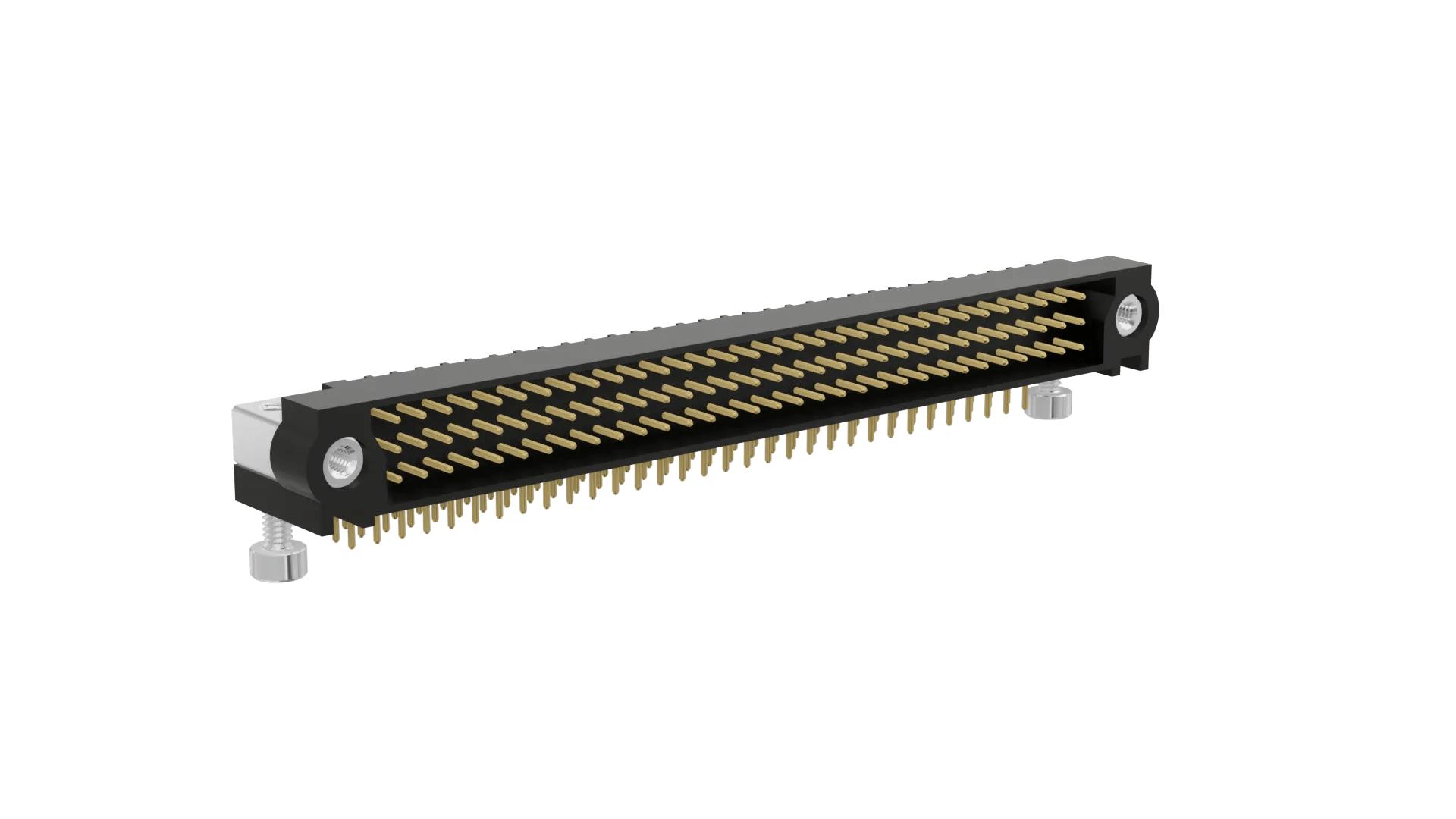

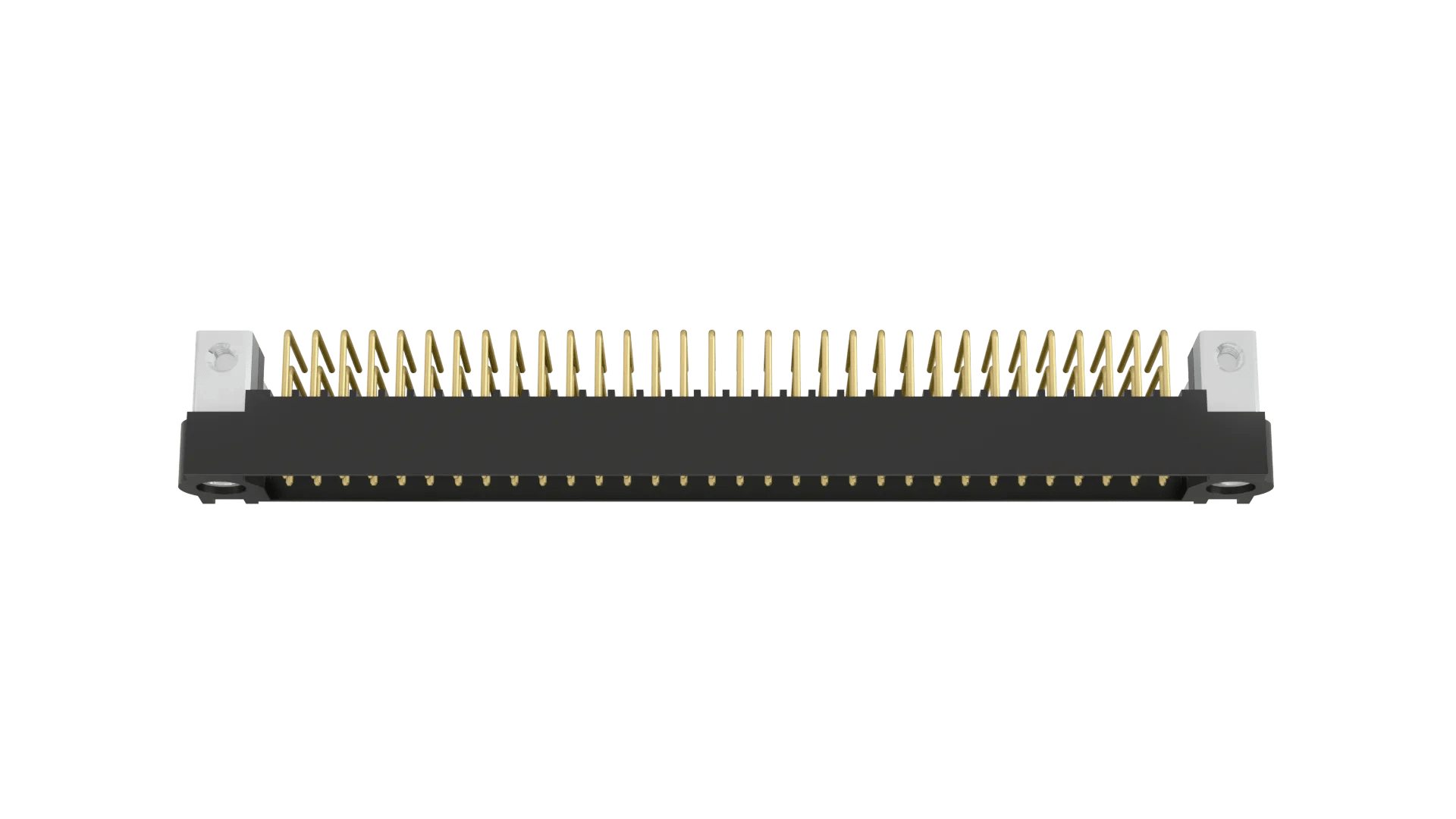

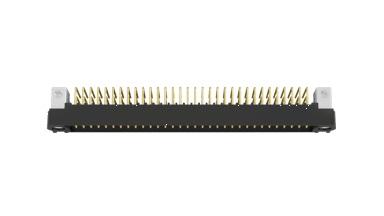

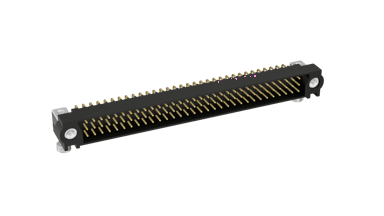

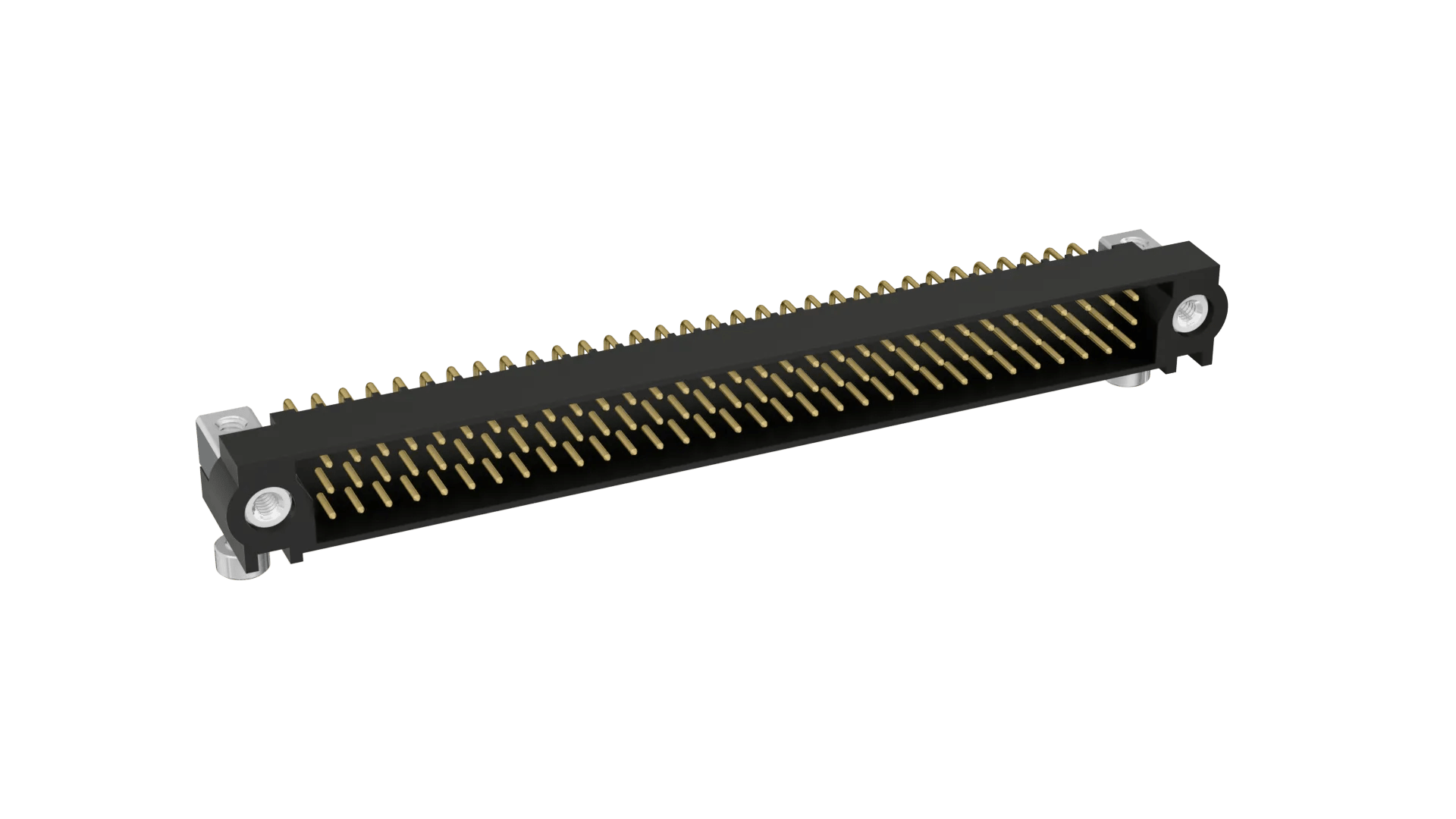

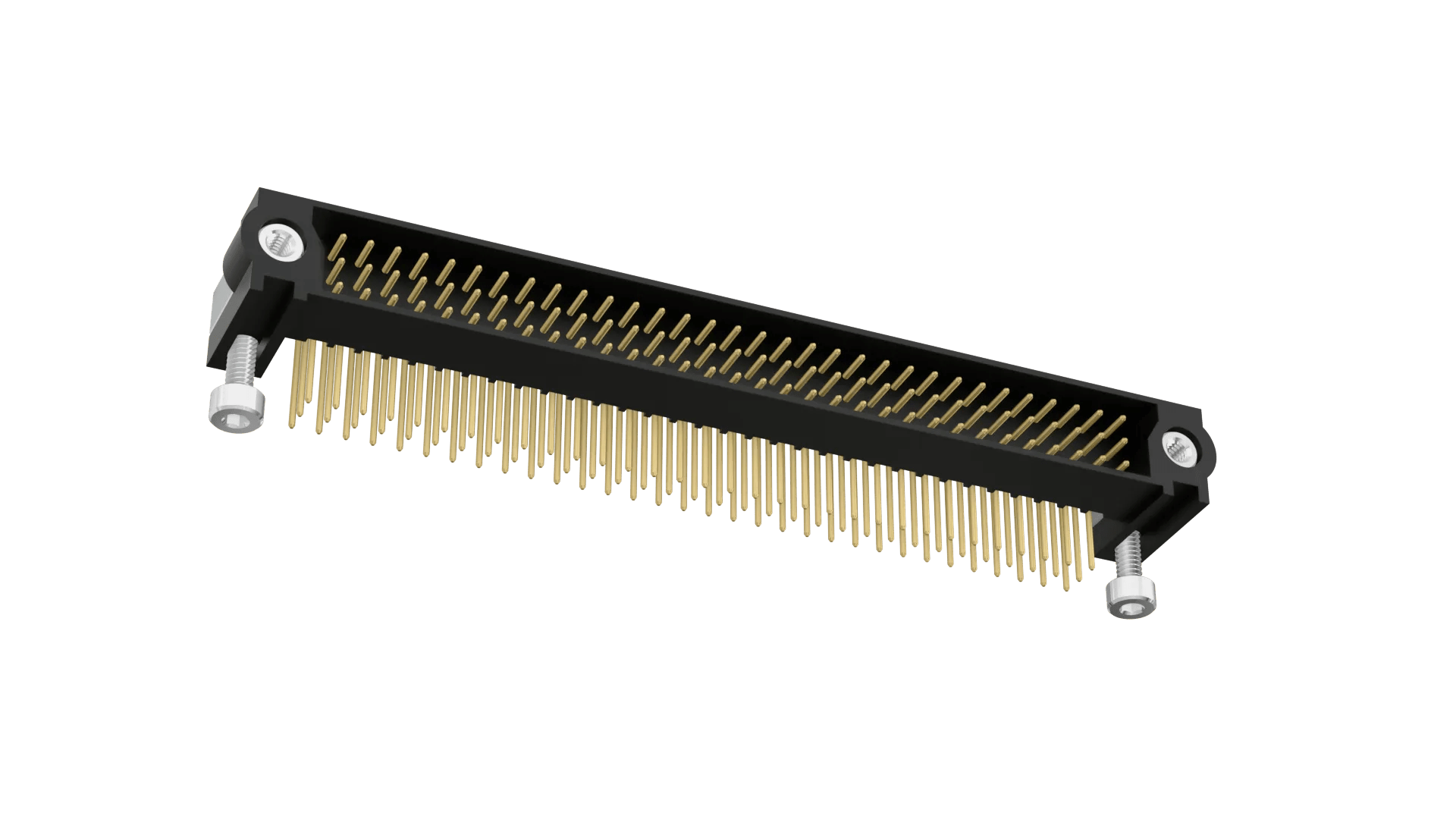

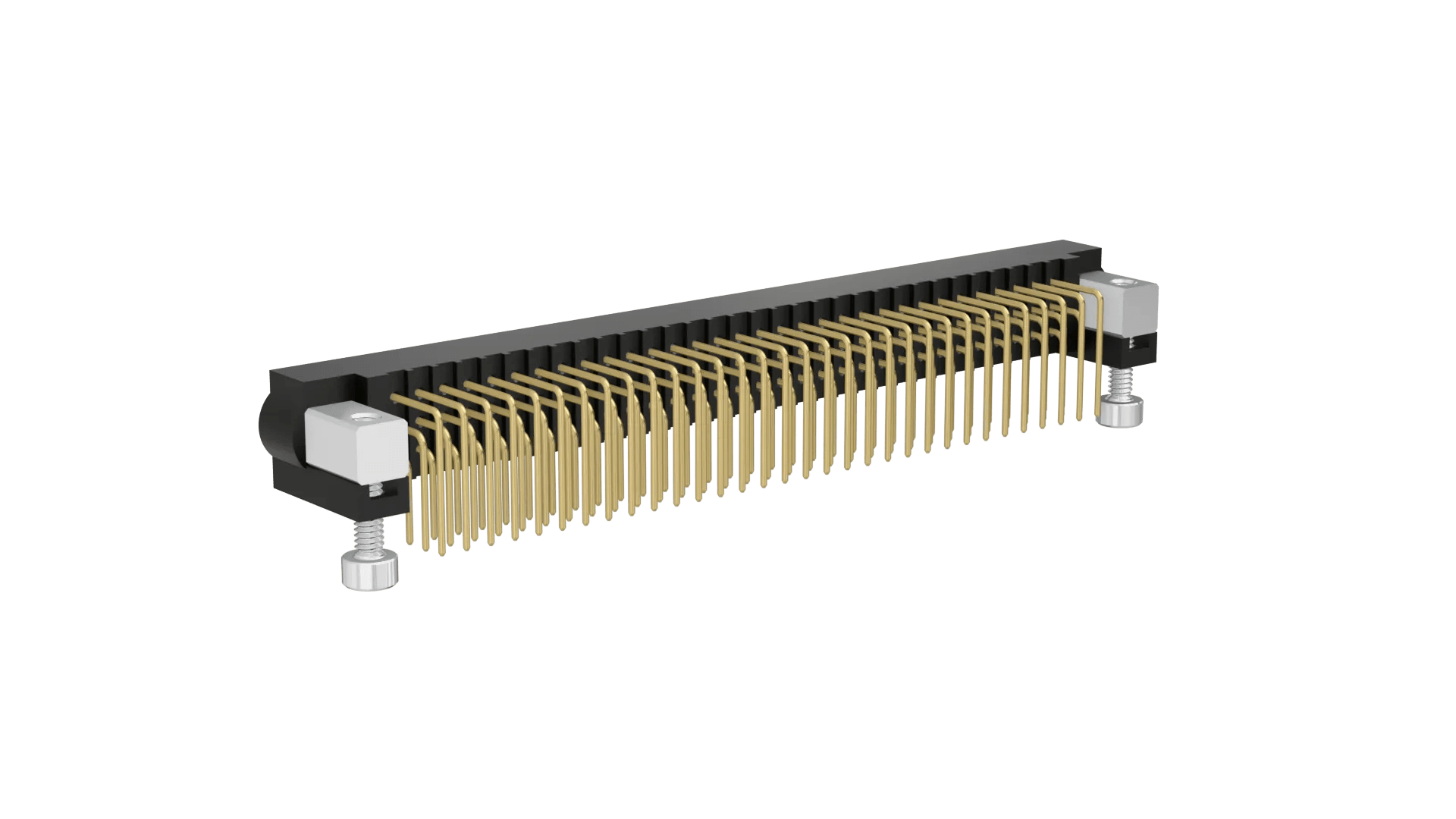

Triple Row, 3.5mm PC Tail connector with 8mm board mount jackscrews – 96 contacts (3 x 32).
Gold finish on contact area and termination. Hex socket head (Allen) bolts provided for assembly to panel mount jackscrews.
For complete pin numbering or pin out information, see Component Specification C005XX.

M83-LML3M7N96-0000-000 - 32 x 3-Row Male Horizontal Throughboard Conn. Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Hex Socket Board Mount Bolts (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Individual Part Weight:

7.352g

Overall Dimensions (L x W x D) in mm:

77.00 x 11.25 x 11.85

Thread Size:

Height of Connector above PCB:

8.35mm

Length of Throughboard Tail:

3.50mm

Mating Profiles:

Catalog page - Datamate J-Tek 3-Row Specification, Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag.

Was this answer useful?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
