M83-LML3M5N13-0302-333

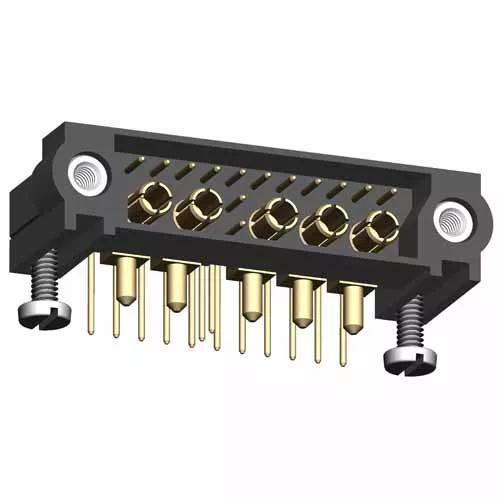

Datamate 3-Row Mix-Tek Male Horizontal Throughboard Connector, Jackscrews + 8mm slotted board mount bolts, 13 x 3.5mm Throughboard signal contacts, 5 x 3.5mm Throughboard Power contacts


2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek 3-Row

  • Jackscrews + 8mm board mount (with slotted bolt), 13 x signal and 5 x power contacts assembled for horizontal PCB connection.

  • 3.5mm length PC Tail signal contacts, 3mm length PC Tail power contacts. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C005XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Change Notifications

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)

  • Mating Pin Size:

    Ø0.5mm

  • Number of Rows:

    3

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    5

  • Number of Signal Contacts:

    13

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Phosphor Bronze (signal), Beryllium Copper (power)

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tray

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Weight:

    6.255g

  • Dimensions:

    35.00 x 11.25 x 12.35

  • Thread Size:

    M2

  • PC Tail Length:

    3.00mm and 3.50mm

  • Height of Connector above PCB:

    8.35mm
