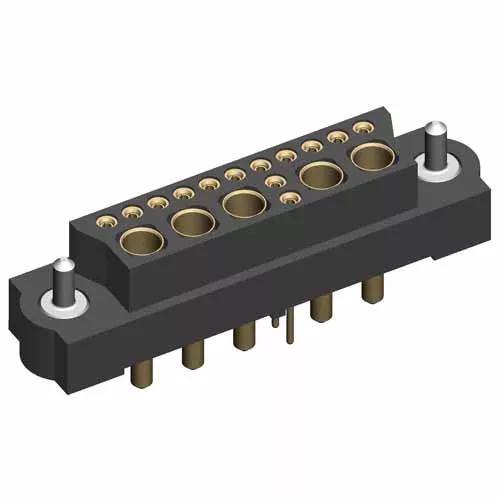

M83-LFT2F4N13-0302-322
13+5 Female 3-Row Signal+Power Vertical Throughboard Conn. Guide Pin
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek 3-Row
Made to order
1 similiar products View products
Samacsys account required
No login is required
Product Description
- Guide Pin jackscrews, 13 x signal and 5 x power contacts assembled for vertical PCB connection.
- 4.5mm length PC Tail signal and power contacts. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm (signal)
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Guide Pin (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
3
Number of Signal Contacts:
13
Number of Special (Power or Coax) Contacts:
5
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tray
Dimensions
Individual Part Weight:
3.562g
Overall Dimensions (L x W x D) in mm:
35.00 x 8.00 x 12.85
Thread Size:
M2
Height of Connector above PCB:
8.35mm
Length of Throughboard Tail:
4.50mm
