Active Product

M83-LFT1F2N36-0000-000

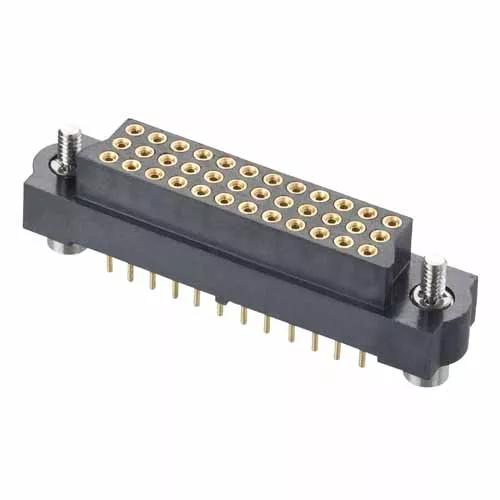

12 x 3-Row Female Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row

Order Sample

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

Triple Row, 3mm PC Tail connector with Hexagonal socket head jackscrews – 36 contacts (3 x 12).
Gold finish on contact area and termination. Accepts 2mm A/F hex (Allen) key.
For complete pin numbering or pin out information, see Component Specification C005XX.

M83-LFT1F2N36-0000-000 - 12 x 3-Row Female Vertical Throughboard Conn. Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tray

Individual Part Weight:

4.324g

Overall Dimensions (L x W x D) in mm:

37.00 x 8.00 x 11.40

Thread Size:

Height of Connector above PCB:

8.40mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate J-Tek 3-Row Specification, Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
