M83-0110005

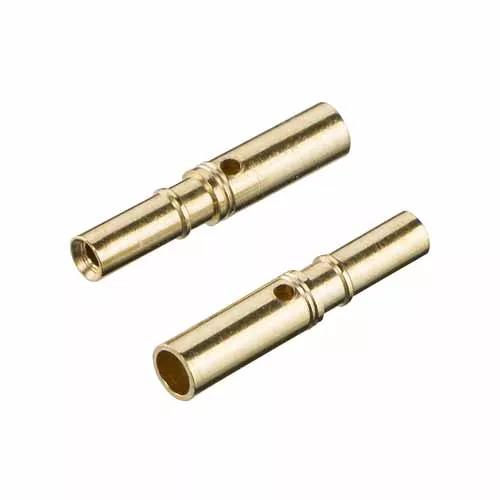

Female 22 AWG Cable Crimp Contact
2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row
Loading… Check availability
2 similar products View products
Traceparts account required
Product Description
- Spare Large Bore signal contact, for 22 AWG wire (Ø1.1mm max insulation).
- Use with female Datamate 3-Row (M83 Series), part numbers starting M83-LFD1.
- Gold finish on contact area and termination.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
22 AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.061g
Overall Dimensions (L x W x D) in mm:
7.45 x Ø1.46
Frequently Asked Questions Ask a Question
What’s the difference between M80-0110005 and M83-0110005, and can I use them interchangeably?
M80-0110005 and M83-0110005 do use the same outer shell design, and in theory, can be used both in M80 and M83 female cable housings. The difference between the two contacts is the insertion force required to mate the male pin. The force is lower in the M83 than it is in the M80. This is done to assist with a lower total insertion force in a higher pin count, as the M83 can go up to 96 pins. Generally we would not recommend interchanging the crimps, as our testing has only been done with M80 contacts in M80 housings, and M83 contacts in M83 housings. However, you are free to do your own testing and confirm that the crimps work if you require.
Was this answer useful?
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
