Active

M80-PM5

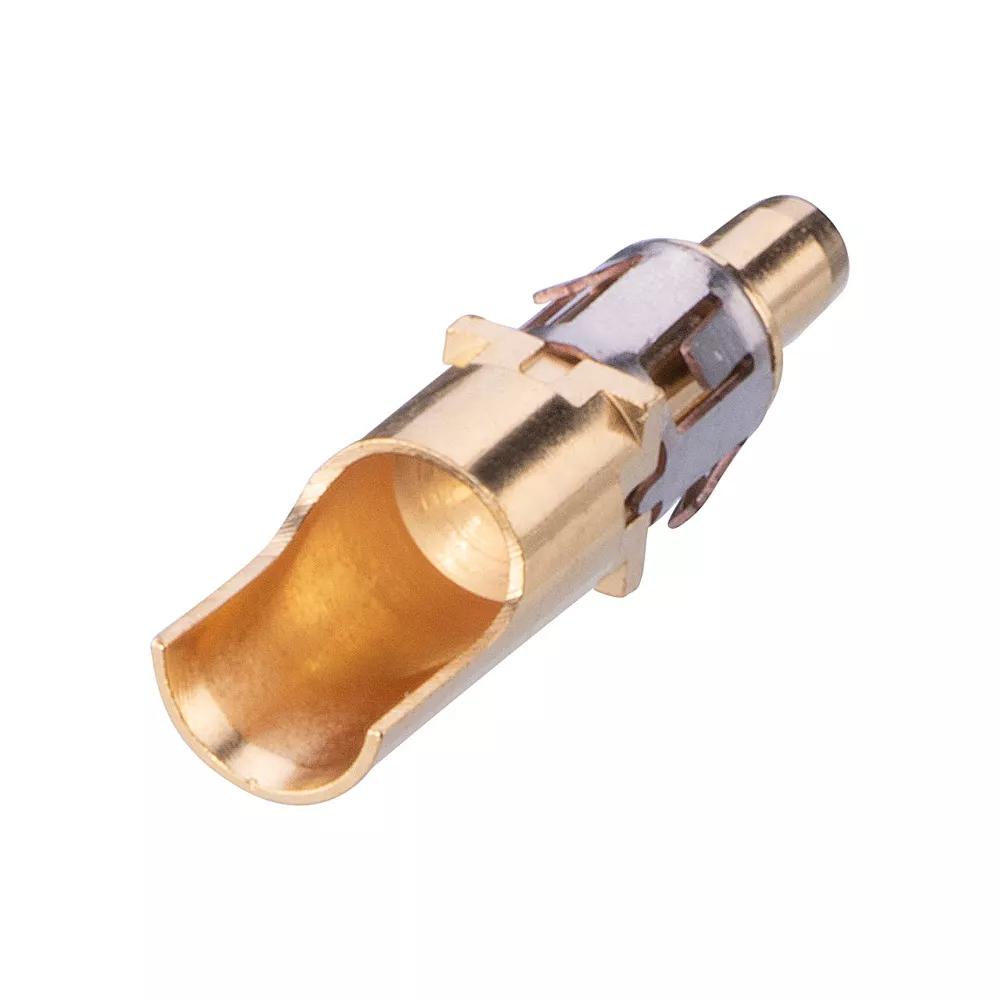

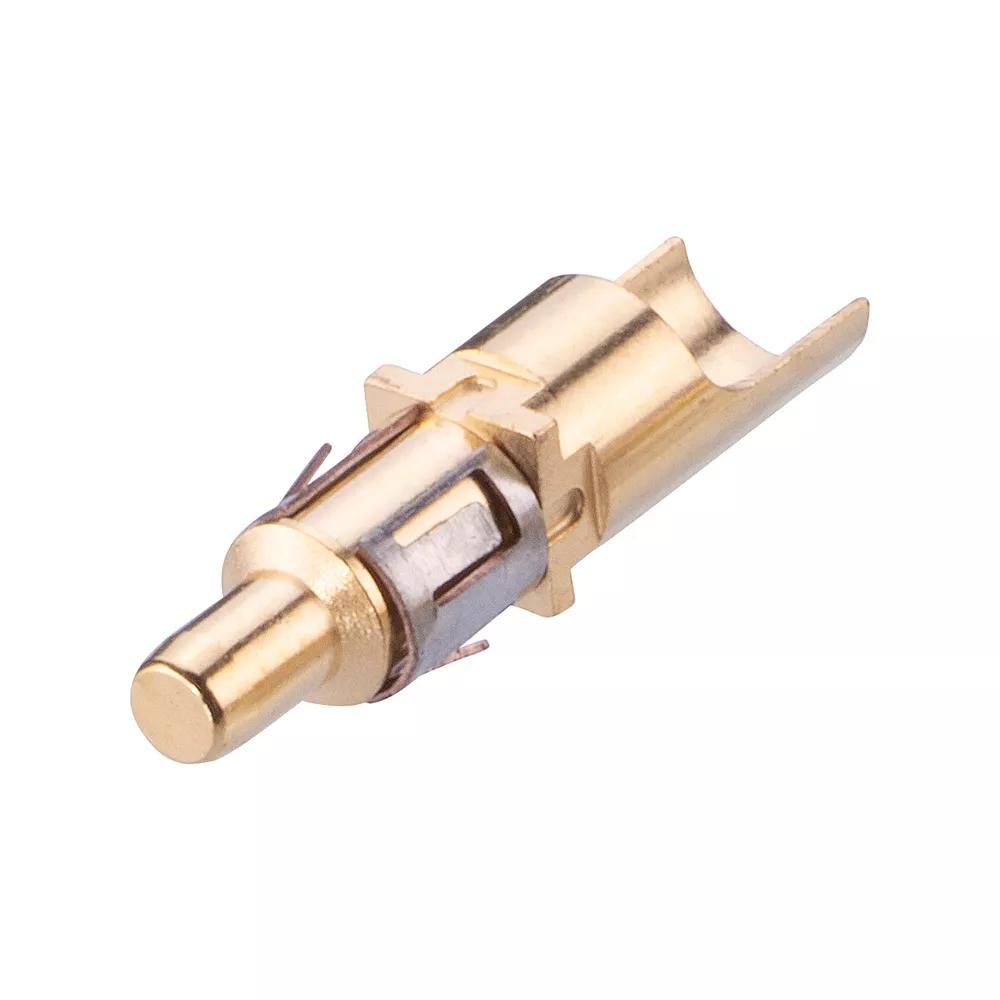

Male 10AWG Straight Solder High Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

Rated to 40A nominal, Straight Solder, suitable for 10AWG cable.
Specified as PM5 in a Mix-Tek connector part number.
Gold finish on contact area and termination.

Request Samples

Availability

M80-PM5 - Male 10AWG Straight Solder High Power Contact

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

10AWG

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.392g

Overall Dimensions (L x W x D) in mm:

13.30 x 2.95 square

Availability

623 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 462

Buy now

Distributor Farnell

Location Europe

Quantity (Updated Daily) 50

Buy now

Distributor Newark

Location USA

Quantity (Updated Daily) 50

Buy now

Distributor TTI Europe

Location Europe

Quantity (Updated Daily) 50

Buy now

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 11

Buy now

Questions & Answers Ask a Question

Can I use a Metal Backshell (M80-945 or M80-946) with this connector?

Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (33x or M80-33x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.

Downloads

PDF

Technical Drawing / Datasheet - M80-PM5.pdf

ZIP

M80-PM5 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-PM5 product

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Datamate Mix-Tek Power & Coax Contacts

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate Mix-Tek Cable Housings

PDF

Plating thickness on Datamate special contacts (power and coax)
