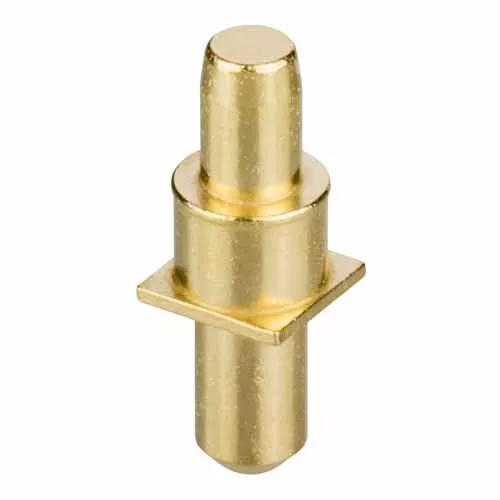

Rated to 40A nominal, Vertical orientation with 3.5mm PC Tail.
Specified as PM1 in a Mix-Tek connector part number.
Gold finish on contact area and termination.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Vertical
Country of Origin
GB
Number of Power/Coax Contacts
1
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
40A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
Gold
Base Material of Contact
Beryllium Copper
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Dimensions
Contact Pitch
4.00mm (0.157")
Weight
0.257g
Dimensions
8.35 x 2.95 square
PC Tail Length
3.50mm
Height of Connector above PCB
4.85mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-PM1-PM2.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Plating thickness on Datamate power and coax contacts
Product Information
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Datasheet - Datamate Mix-Tek range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-PM1 product
RoHS Declaration - M80-PM1
