Home > M80-PF5
Active

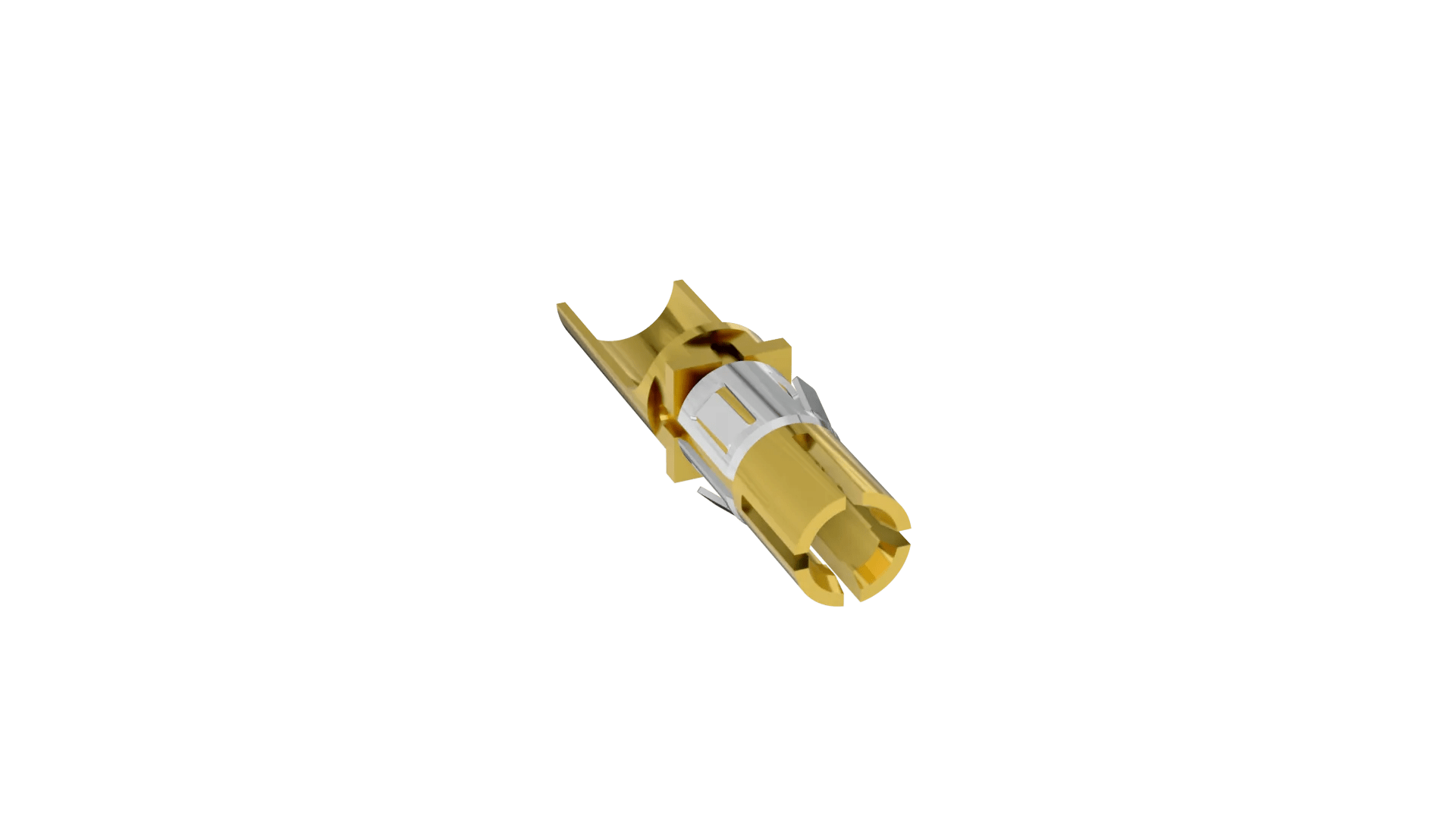

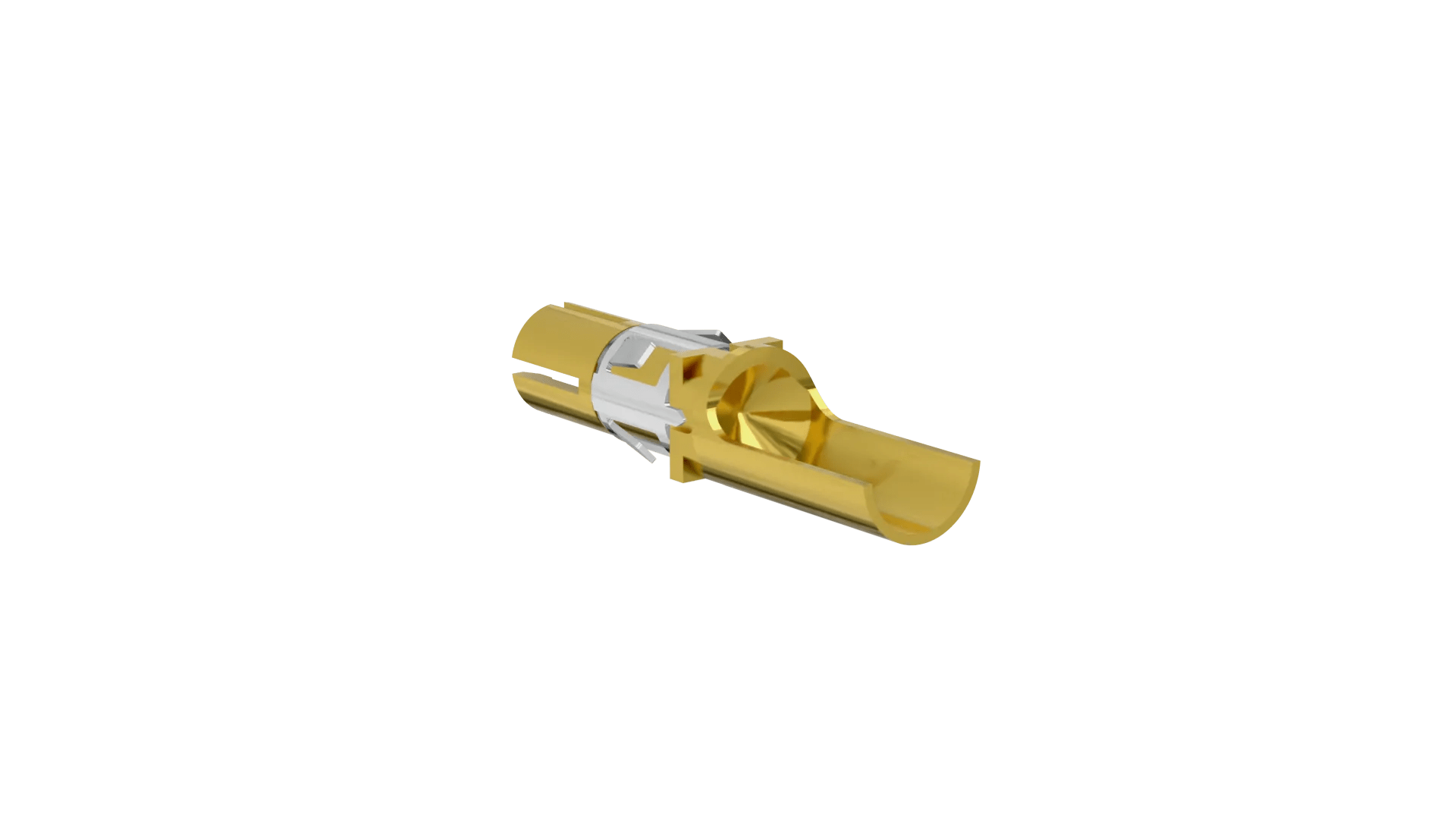

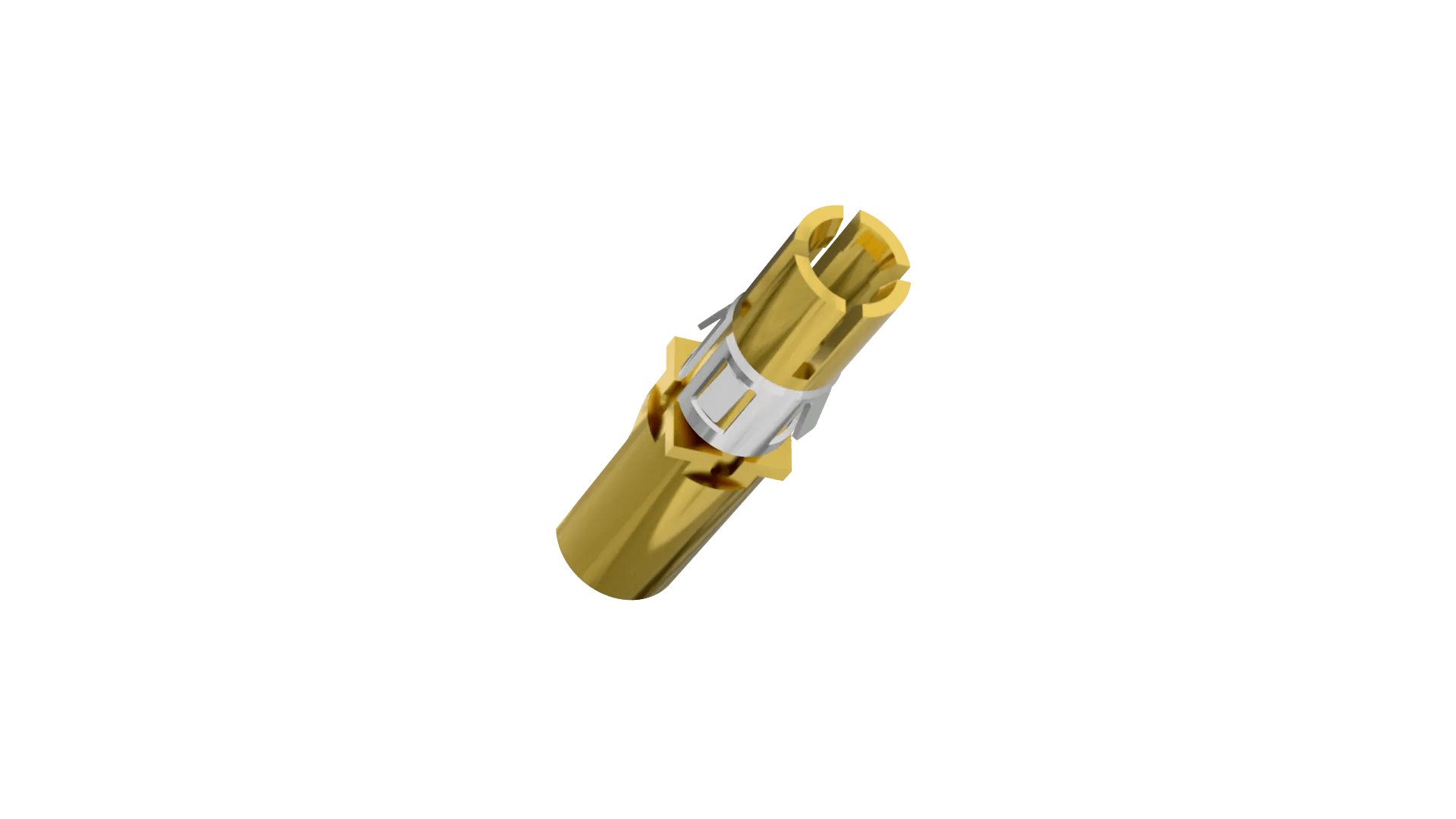

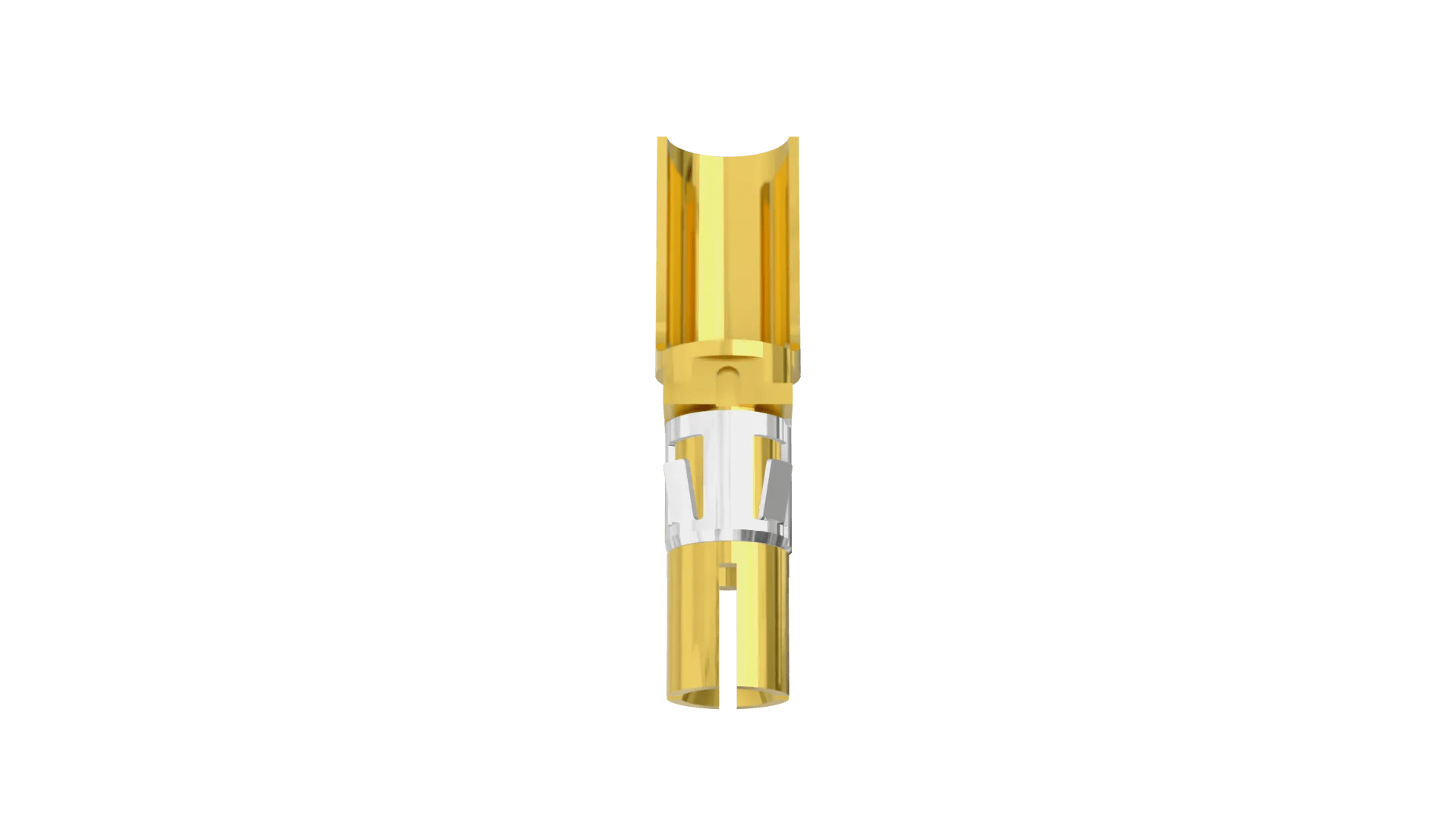

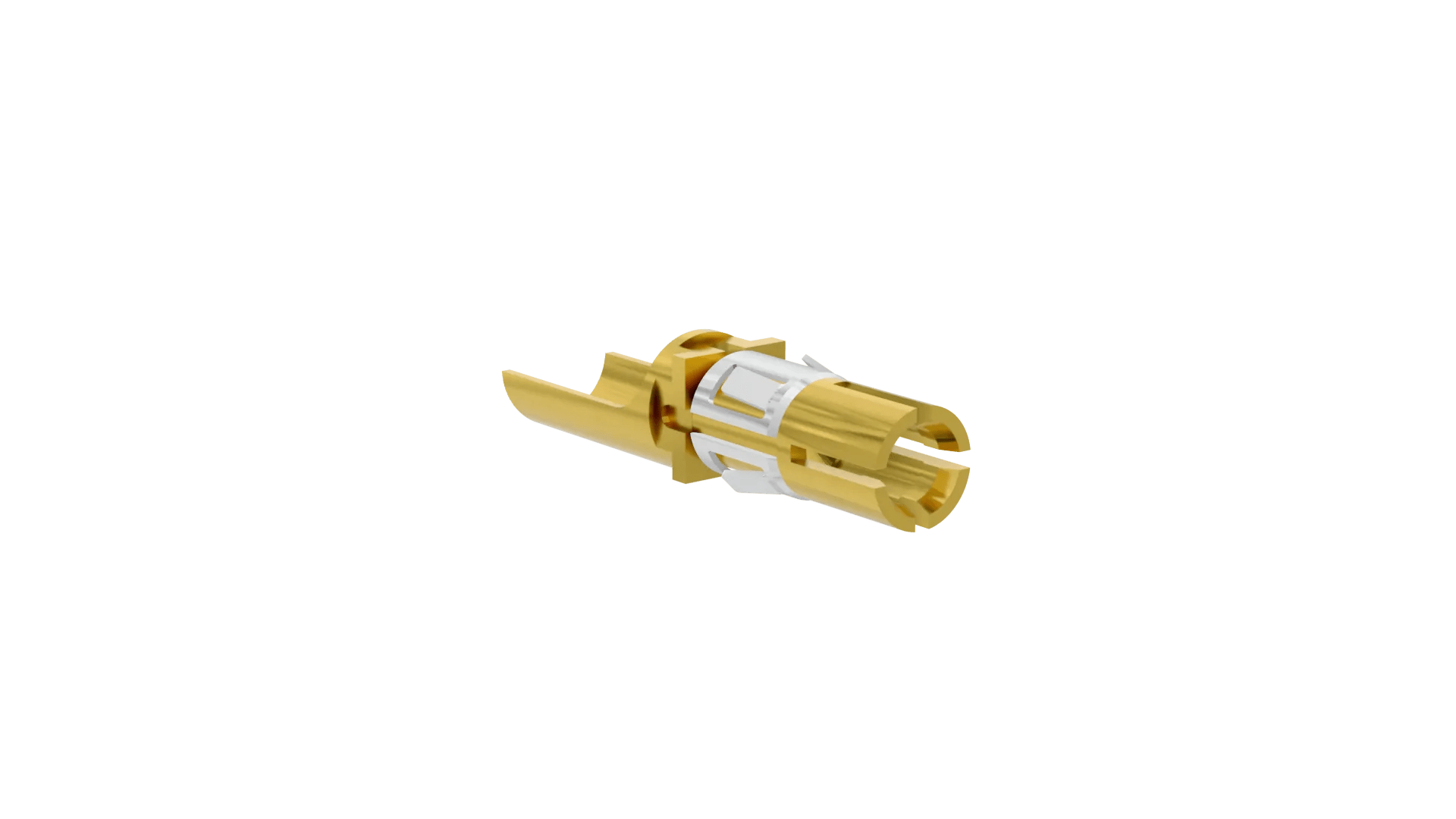

M80-PF5

Female 10AWG Straight Solder High Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Rated to 40A nominal, Straight Solder, suitable for 10AWG cable.
  • Specified as PF5 in a Mix-Tek connector part number.
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

10AWG

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Number of Special (Power or Coax) Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.387g

Overall Dimensions (L x W x D) in mm:

13.55 x 2.95 square

Availability

1,873 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 944
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 53
Distributor Farnell
Location Europe
Quantity (Updated Daily) 50
Distributor Newark
Location USA
Quantity (Updated Daily) 50

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 776

Questions & Answers Ask a Question

Is it OK to use 2 x high power contact M80-PF5 with housing M80-263F102-00-00 – there appears to be only 1mm separation?

Yes, it’s OK to use the high power contacts with these housings. In test report HT040xx, you will see the testing was carried out on kit M80-4000000F1-02-PF5-00-000 – which is the kit of M80-PF5 and housing M80-263F102-00-00 supplied together.

The test report shows the derating values when tested with increasing contact quantities in these same housings, on 4mm pitch.

Can I use a Metal Backshell (M80-945 or M80-946) with this connector?

Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (32x or M80-32x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-PF5.pdf

ZIP

M80-PF5 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-PF5 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

Catalog page - Datamate Power Female Cable Kit

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300

PDF

Product Summary - Datamate Mix-Tek Cable Housings
