Active Product

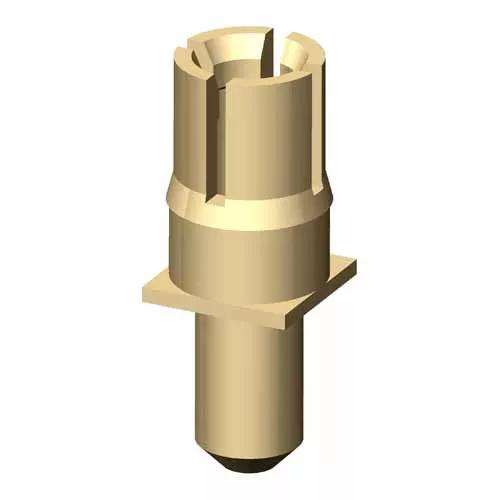

M80-PF1

Female Vertical Throughboard High Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

Order Sample

Add to Favorites

Made to order

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Rated to 40A nominal, Vertical orientation with 3.5mm PC Tail.
Specified as PF1 in a Mix-Tek connector part number.
Gold finish on contact area and termination.

M80-PF1 - Female Vertical Throughboard High Power Contact

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.26g

Overall Dimensions (L x W x D) in mm:

8.15 x 2.95 square

Height of Connector above PCB:

4.65mm

Length of Throughboard Tail:

3.50mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download
