Home > M80-MV312M3-04
Active Product

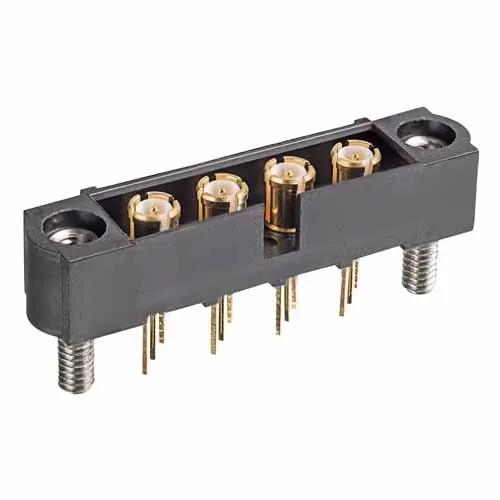

M80-MV312M3-04

4 Pos. Male SIL Coax Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Add to Favorites

150 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Jackscrews + 5mm board mount studs, 4 x 4.5mm PC Tail plug coax contacts assembled for vertical PCB connection. Gold finish on contact area and termination.
  • Use with slotted nuts M80-2130000B or hexagonal nuts M80-2430000B for board mount retention.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Beryllium Copper outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.657g

Overall Dimensions (L x W x D) in mm:

26.00 x 6.00 x 10.55

Thread Size:

M2

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

4.50mm

Frequently Asked Questions Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
