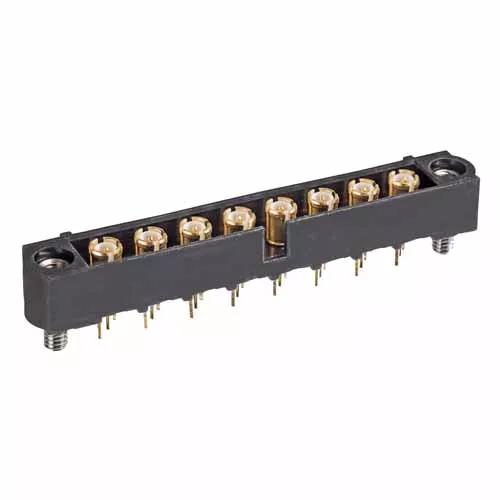

8 Pos. Male SIL Coax Vertical Throughboard Conn. Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Coax
- Jackscrews + 3.5mm board mount studs, 8 x 3mm PC Tail plug coax contacts assembled for vertical PCB connection. Gold finish on contact area and termination.
- Use with slotted nuts M80-2130000B or hexagonal nuts M80-2430000B for board mount retention.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
0.5A per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Phosphor Bronze inner contact, Beryllium Copper outer shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
42.00 x 6.00 x 9.05
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
