Active Product

M80-MV311M2-06

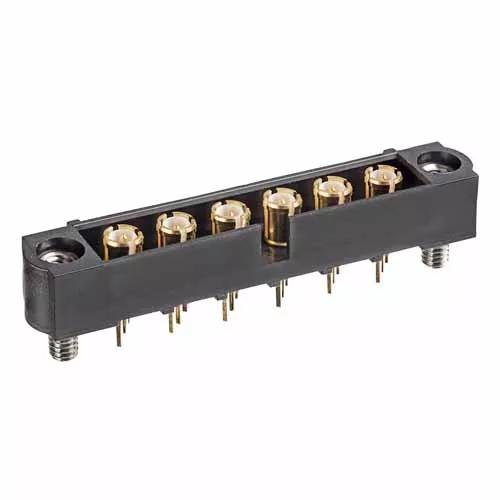

6 Pos. Male SIL Coax Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Order Sample

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

Jackscrews + 3.5mm board mount studs, 6 x 3mm PC Tail plug coax contacts assembled for vertical PCB connection. Gold finish on contact area and termination.
Use with slotted nuts M80-2130000B or hexagonal nuts M80-2430000B for board mount retention.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-MV311M2-06 - 6 Pos. Male SIL Coax Vertical Throughboard Conn. Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Beryllium Copper outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.971g

Overall Dimensions (L x W x D) in mm:

34.00 x 6.00 x 9.05

Thread Size:

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).

Was this answer useful?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).

Was this answer useful?
