M80-MV311M2-02

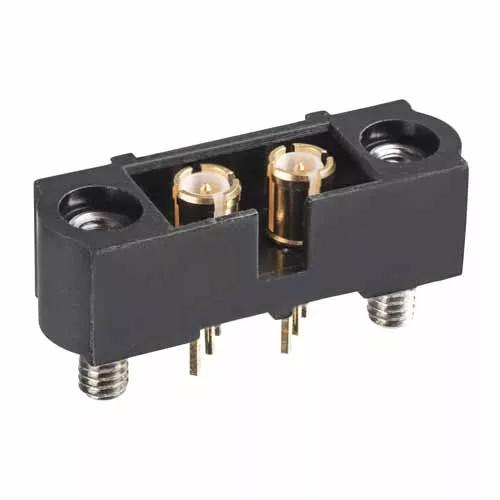

2 Pos. Male SIL Coax Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

  • Jackscrews + 3.5mm board mount studs, 2 x 3mm PC Tail plug coax contacts assembled for vertical PCB connection. Gold finish on contact area and termination.
  • Use with slotted nuts M80-2130000B or hexagonal nuts M80-2430000B for board mount retention.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Jackscrew with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Beryllium Copper outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.176g

Overall Dimensions (L x W x D) in mm:

18.00 x 6.00 x 9.05

Thread Size:

M2

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.00mm

Availability

38 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 22
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 14
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 2

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
