M80-MH314M5-08

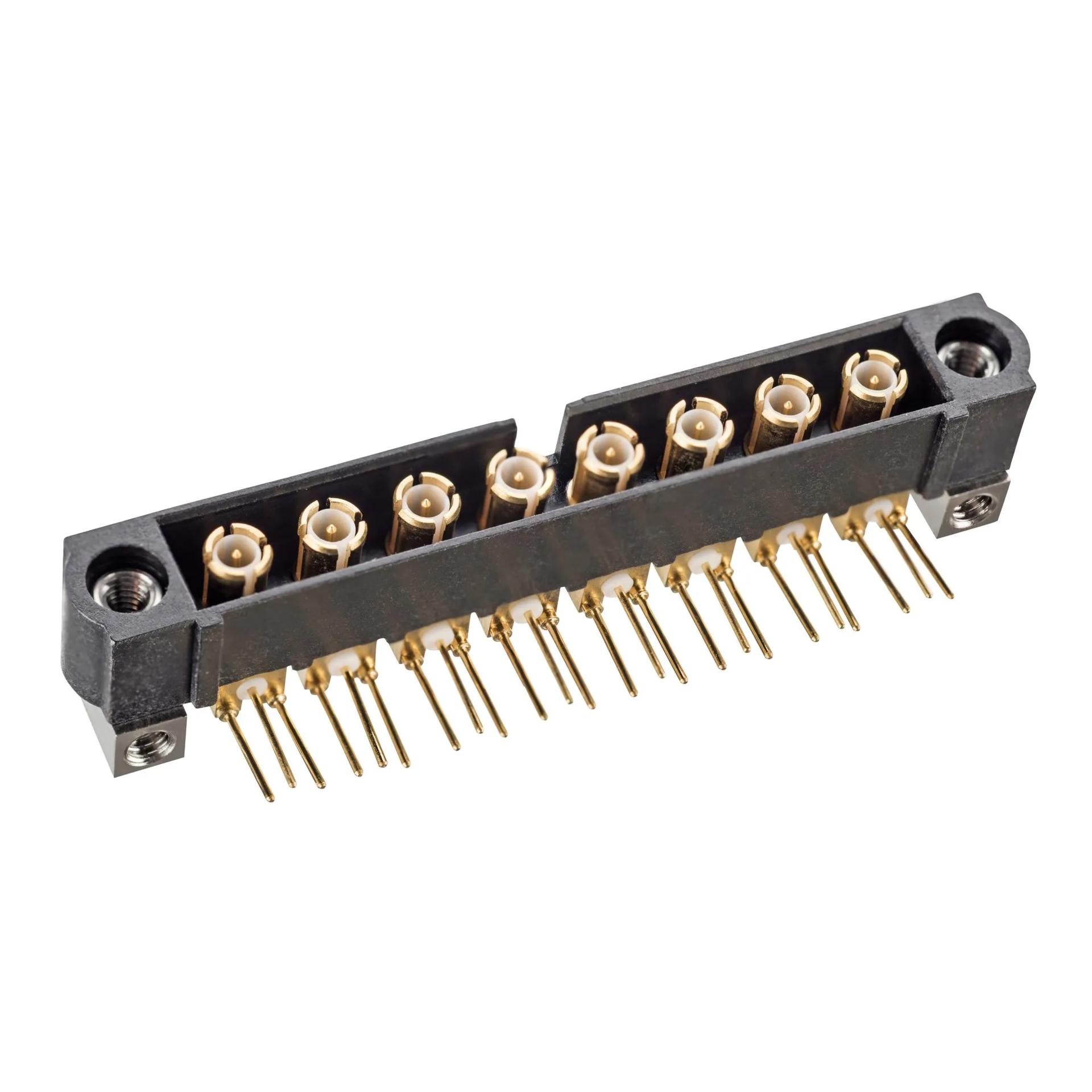

8 Pos. Male SIL Coax Horizontal Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

  • Jackscrews + board mount female threads, 8 x 4.5mm PC Tail plug coax contacts assembled for horizontal PCB connection. Gold finish on contact area and termination.
  • Use with slotted bolts M80-2270000B (5mm), M80-2260000B (3.5mm), or hex socket bolts M80-2320000B (5mm) for board mount retention.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

8

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Beryllium Copper outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

4.221g

Overall Dimensions (L x W x D) in mm:

42.00 x 8.60 x 10.50

Thread Size:

M2

Height of Connector above PCB:

6.00mm

Length of Throughboard Tail:

4.50mm

Availability

13 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 7
Distributor Anglia
Location Europe
Quantity (Updated Daily) 5
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1

Questions & Answers Ask a Question

Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount bolts – you will need to order them separately. You have a choice of M80-2260000B (3.5mm slotted), M80-2270000B (5mm slotted), or M80-2320000B (5mm hex socket).

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
