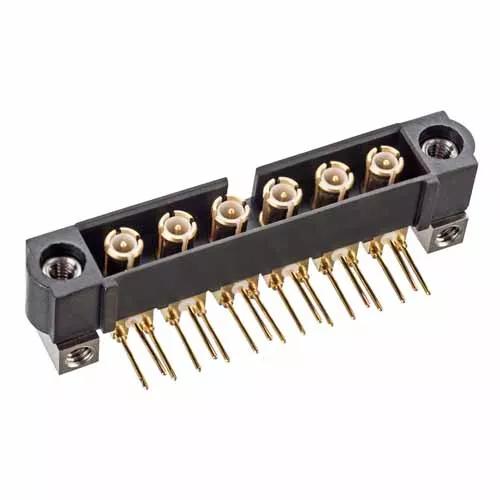

6 Pos. Male SIL Coax Horizontal Throughboard Conn. Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Coax
- Jackscrews + board mount female threads, 6 x 4.5mm PC Tail plug coax contacts assembled for horizontal PCB connection. Gold finish on contact area and termination.
- Use with slotted bolts M80-2270000B (5mm), M80-2260000B (3.5mm), or hex socket bolts M80-2320000B (5mm) for board mount retention.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
0.5A per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Jackscrew with Board Mount
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Phosphor Bronze inner contact, Beryllium Copper outer shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
34.00 x 8.60 x 10.50
Height of Connector above PCB:
Length of Throughboard Tail:
39 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
M80-MH314M5-06 CAD Model (ZIP file containing STP and IGES)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
