M80-MH314M5-04

M80-MH314M5-04

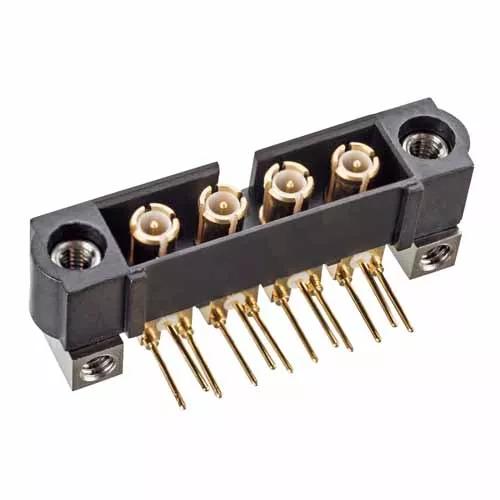

Datamate Coax Plug (Male) Horizontal Throughboard Connector, Jackscrews for board mount, no signal contacts, 4 x 4.5mm Throughboard Coax contacts

HRi

Traceparts account required

M80-MH314M5-04

Datamate Coax Plug (Male) Horizontal Throughboard Connector, Jackscrews for board mount, no signal contacts, 4 x 4.5mm Throughboard Coax contacts


4.00mm Pitch High-Reliability Connector - Datamate Coax

  • Jackscrews + board mount female threads, 4 x 4.5mm PC Tail plug coax contacts assembled for horizontal PCB connection. Gold finish on contact area and termination.

  • Use with slotted bolts M80-2270000B (5mm), M80-2260000B (3.5mm), or hex socket bolts M80-2320000B (5mm) for board mount retention.

  • For complete pin numbering or pin out information, see Component Specification C005XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Jackscrew with Board Mount (Standard Gender)

  • Number of Rows:

    1

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    4

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    0.5A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Phosphor Bronze inner contact, Beryllium Copper outer shell

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    4.00mm (0.157")

  • Weight:

    2.7g

  • Dimensions:

    26.00 x 8.60 x 10.50

  • Thread Size:

    M2

  • PC Tail Length:

    4.50mm

  • Height of Connector above PCB:

    6.00mm

Downloads

    Product Information

  • Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles

  • Product Training Module - Guide to the Datamate Coax range

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-MH314M5-XX.pdf

  • Plating thickness on Datamate power and coax contacts

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M80-MH314M5-04

  • Material composition for M80-MH314M5-XX series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
