Home > M80-MH314M5-02
Active Product

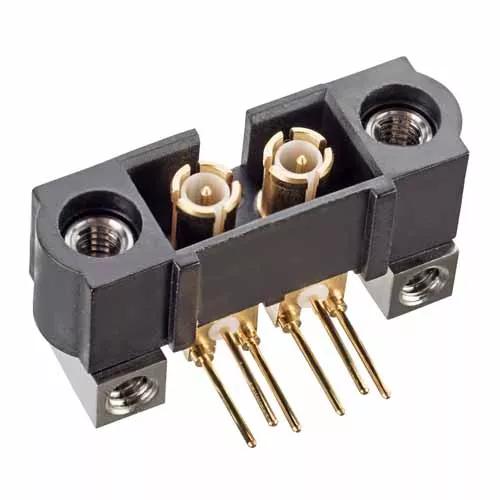

M80-MH314M5-02

2 Pos. Male SIL Coax Horizontal Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Add to Favorites

1 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Jackscrews + board mount female threads, 2 x 4.5mm PC Tail plug coax contacts assembled for horizontal PCB connection. Gold finish on contact area and termination.
  • Use with slotted bolts M80-2270000B (5mm), M80-2260000B (3.5mm), or hex socket bolts M80-2320000B (5mm) for board mount retention.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze inner contact, Beryllium Copper outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.939g

Overall Dimensions (L x W x D) in mm:

18.00 x 8.60 x 10.50

Thread Size:

M2

Height of Connector above PCB:

6.00mm

Length of Throughboard Tail:

4.50mm

Frequently Asked Questions Ask a Question

Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?

No, these connectors are not supplied with the board/panel mount bolts – you will need to order them separately. You have a choice of M80-2260000B (3.5mm slotted), M80-2270000B (5mm slotted), or M80-2320000B (5mm hex socket).

Was this answer useful?

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
