M80-MH313M5-08

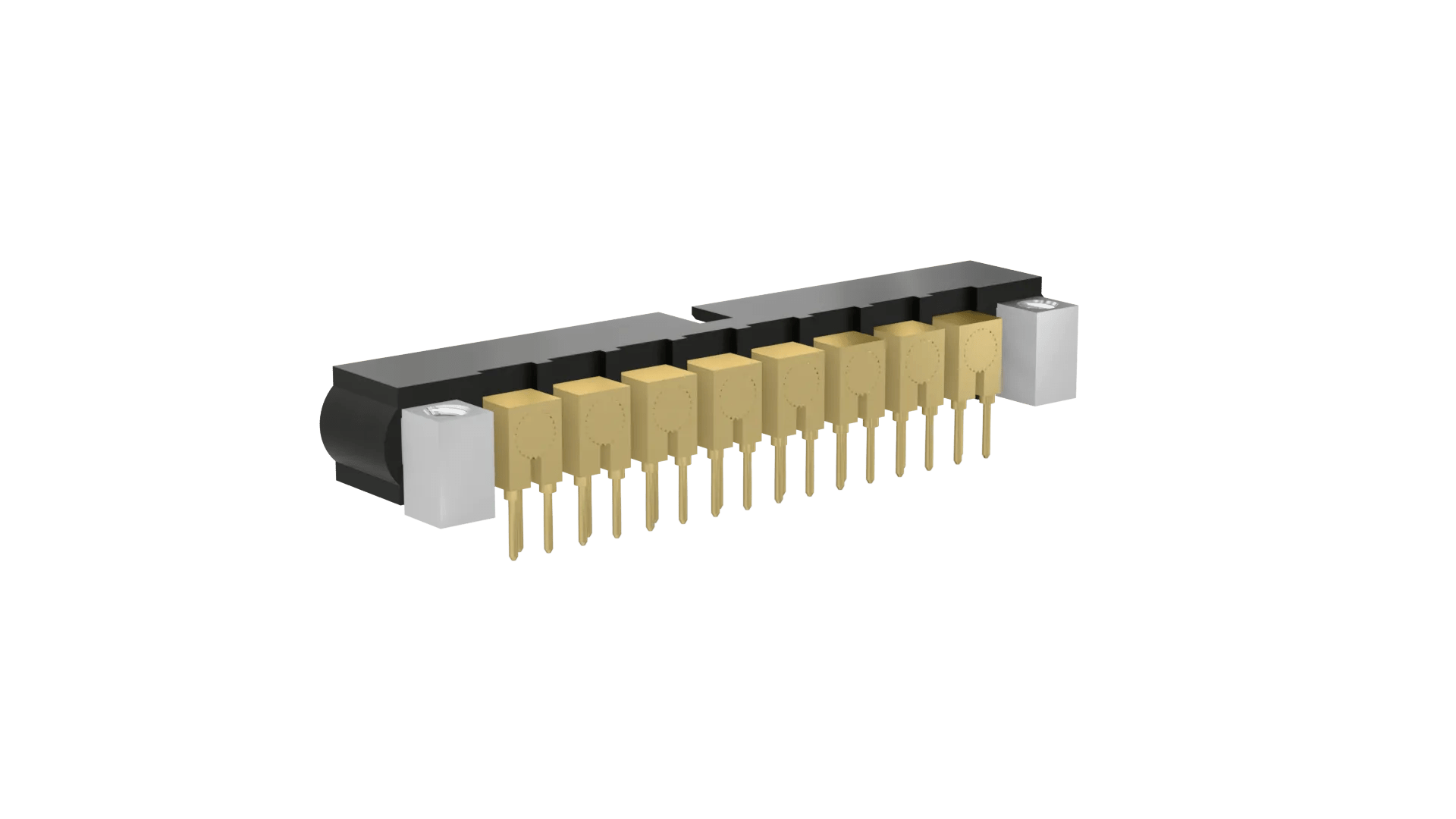

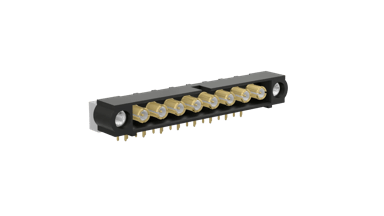

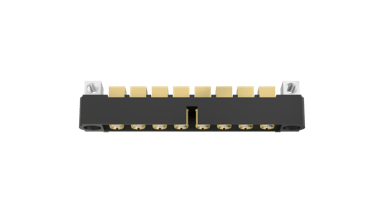

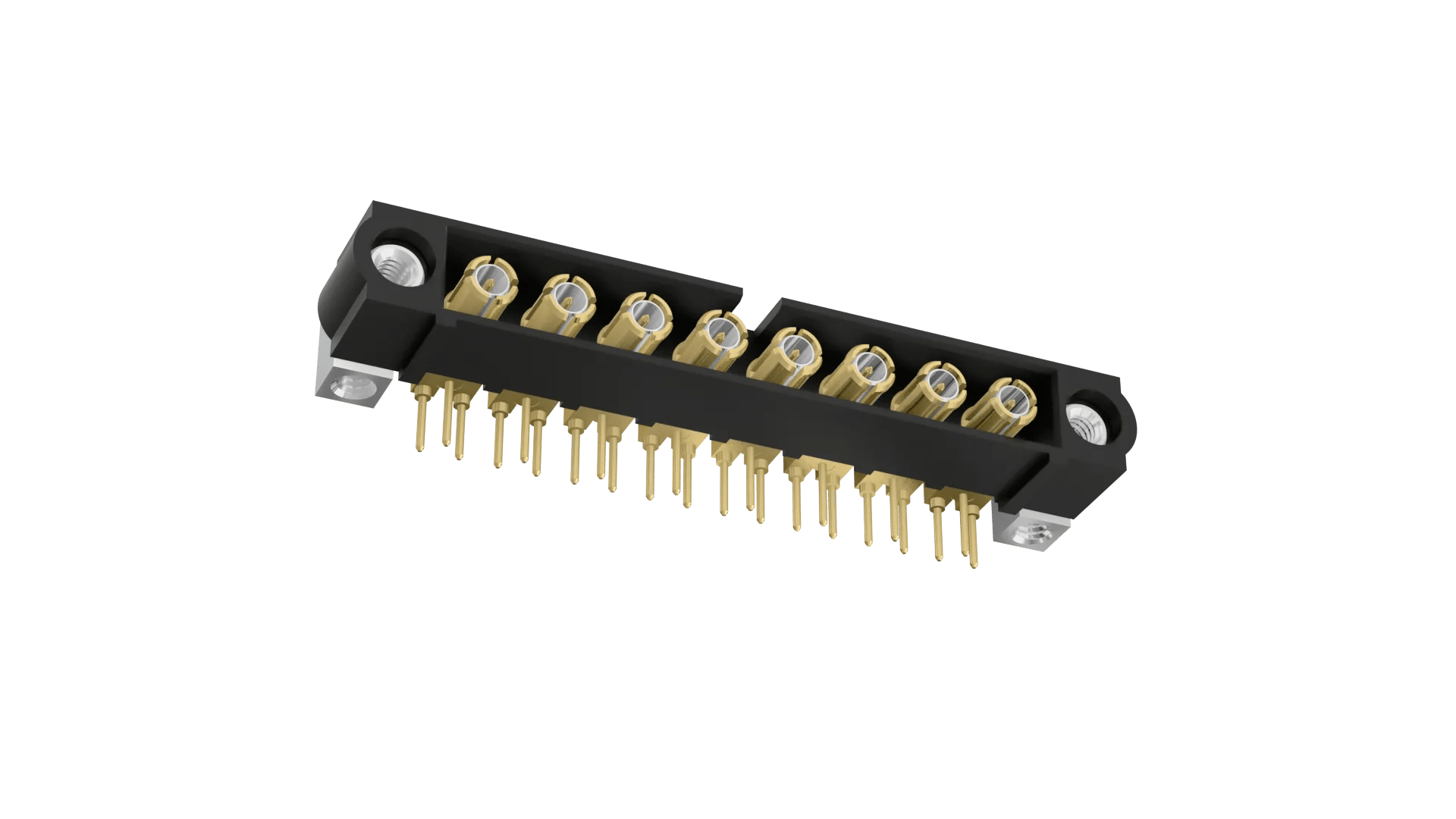

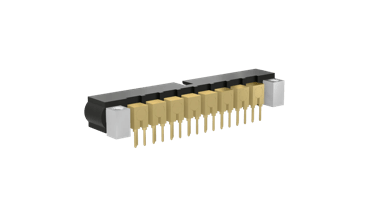

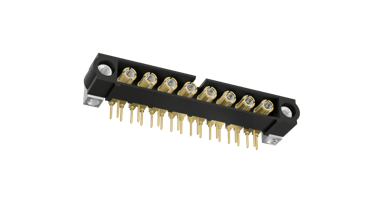

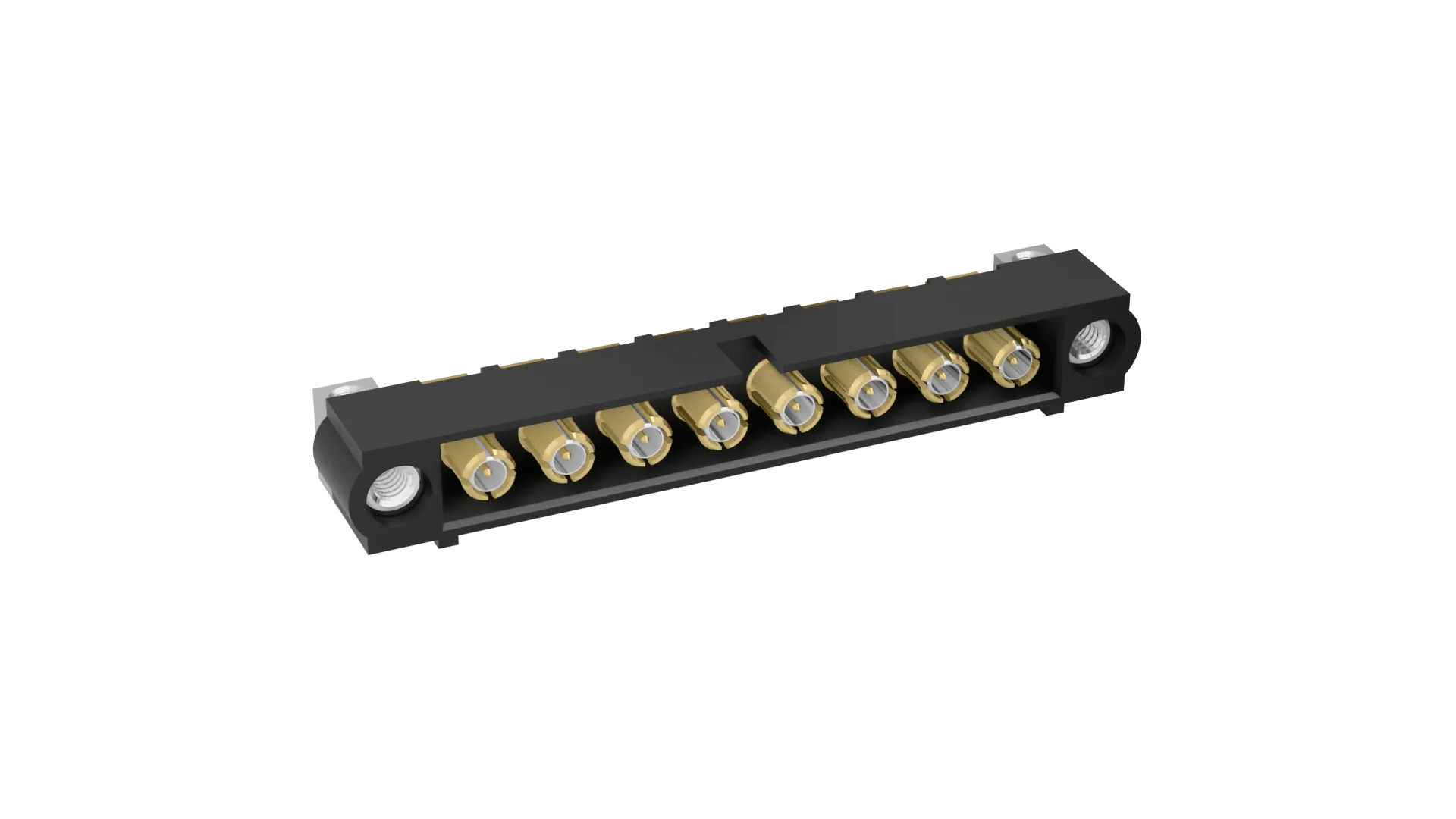

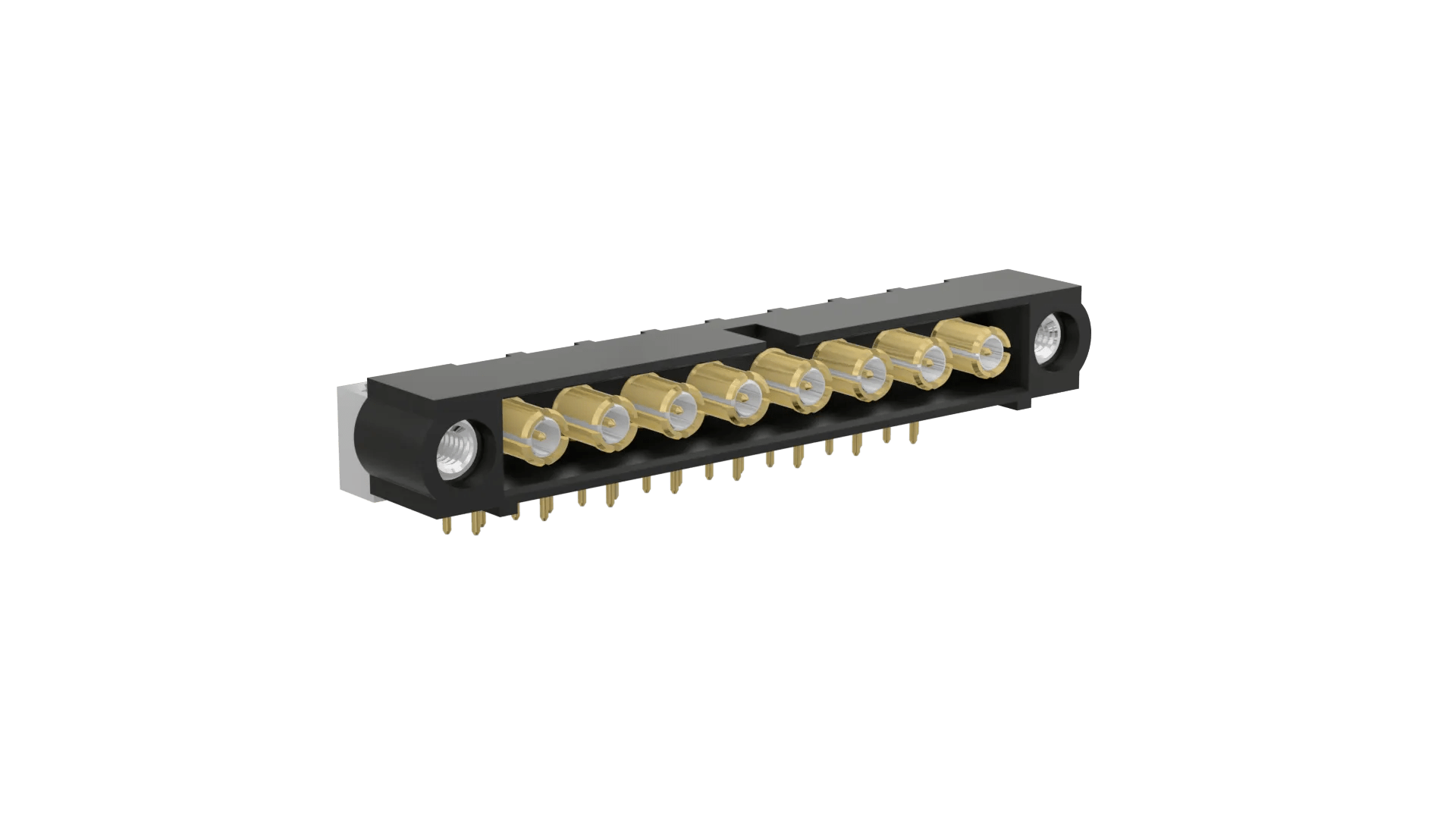

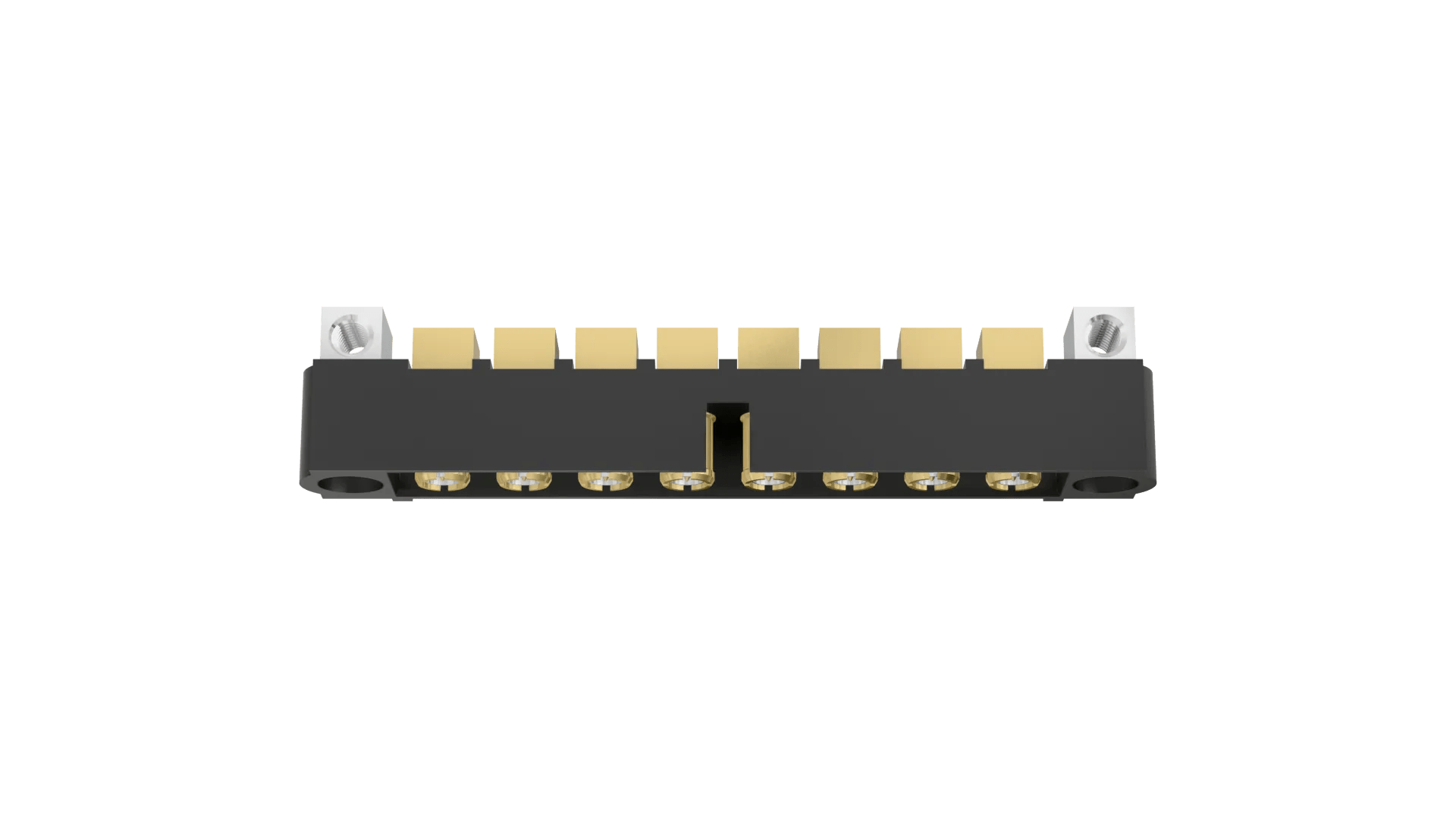

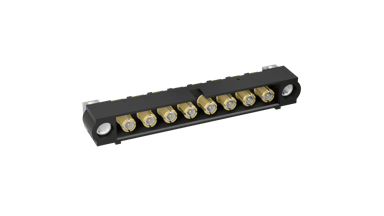

Datamate Coax Plug (Male) Horizontal Throughboard Connector, Jackscrews for board mount, no signal contacts, 8 x 3mm Throughboard Coax contacts


4.00mm Pitch High-Reliability Connector - Datamate Coax

  • Jackscrews + board mount female threads, 8 x 3mm PC Tail plug coax contacts assembled for horizontal PCB connection. Gold finish on contact area and termination.

  • Use with slotted bolts M80-2270000B (5mm), M80-2260000B (3.5mm), or hex socket bolts M80-2320000B (5mm) for board mount retention.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    4.00mm (0.157")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Horizontal

  • PCB Mounting:

    PC Tail / Throughboard

  • Style of Jackscrews:

    Internal Thread Jackscrew with Board Mount (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Special (Power or Coax) Contacts:

    8

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze inner contact, Beryllium Copper outer shell

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    6.00mm

  • PC Tail Length:

    3.00mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    0.5A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    4.165g

  • Dimensions:

    42.00 x 8.60 x 9.00

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M80-MH313M5-08

  • Material composition for M80-MH313M5-XX series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-MH313M5-XX.pdf

  • Plating thickness on Datamate power and coax contacts

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Guide to the Datamate Coax range

  • Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Test Reports

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
