Home > M80-MCPM5M1-06-0150L
Active Product

M80-MCPM5M1-06-0150L

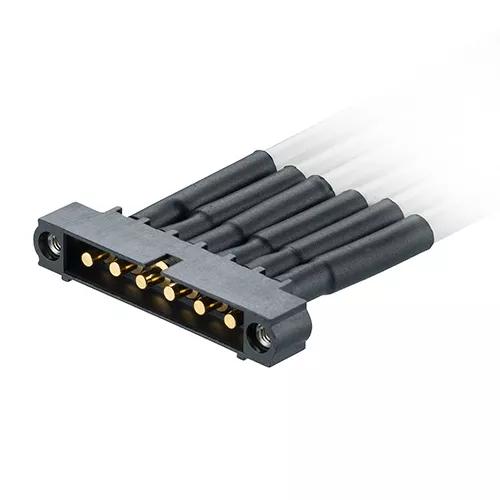

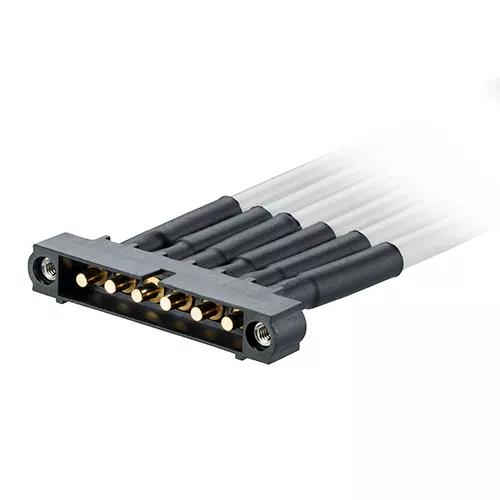

6 Pos. Male SIL 10 AWG Cable Assembly, 150mm, single-end, Jackscrew

4.00mm Pitch High-Reliability Connector - Datamate Power

Add to Favorites

Loading…   Check availability

2 similar products View products

Traceparts account required

Product Description

  • Male Single Ended with white 10 AWG cable, 150mm (6″) long – 6 contacts. Fitted with internally threaded jackscrew fixings.
  • Manufactured with M80-5000000M1-06-PM5-00-000 male Single Row solder connector kit. Gold finish on contact areas.
  • NOTE: This part number is being upgraded soon – please use M80-MP135-06-0150-LXX for future orders.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

10 AWG

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

49.56g

Overall Dimensions (L x W x D) in mm:

150.00 x 34.00 x 6.00

Thread Size:

M2

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Can I use a Metal Backshell (M80-945 or M80-946) with this connector?

Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (33x or M80-33x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
