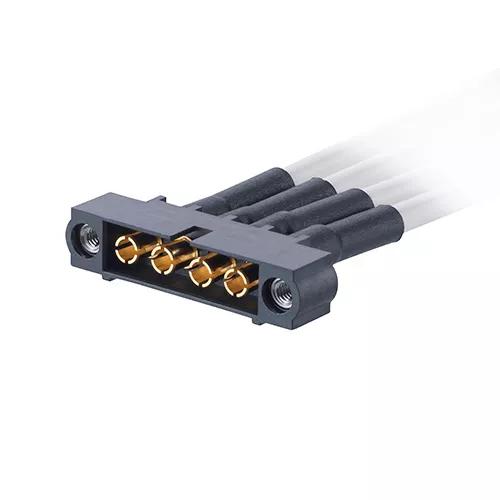

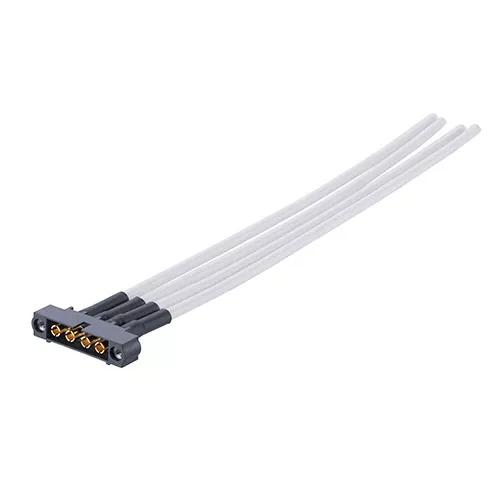

4.00mm Pitch High-Reliability Connector - Datamate Power
Male Single Ended with white 12 AWG cable, 150mm (6") long - 4 contacts. Fitted with internally threaded jackscrew fixings.
Manufactured with M80-5000000M1-04-335-00-000 male Single Row solder connector kit. Gold finish on contact areas.
NOTE: This part number is being upgraded soon - please use M80-MP135-04-0150-LXX for future orders.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB/US
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
4
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
20A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
21.906g
Dimensions:
150.00 x 26.00 x 6.00
Thread Size:
M2
Wire Size:
12 AWG
Downloads
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Datasheet - Datamate Mix-Tek range (HRi)
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Panel Mount with Datamate
Product Training Module - Cable Products from Harwin
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Technical Drawing / Datasheet - M80-MCXXXM1-XX-XXXXL.pdf
Plating thickness on Datamate power and coax contacts
C049XX Component Specification - Cable Assembly Specifications for all HRi products
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
RoHS - M80-MC335M1-04-0150L
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Test Report HT078 - Datamate Mix-Tek 20A Power testing
Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
