Active Product

M80-MC25068MA-0450L

25+25 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

10 in stock Check availability

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

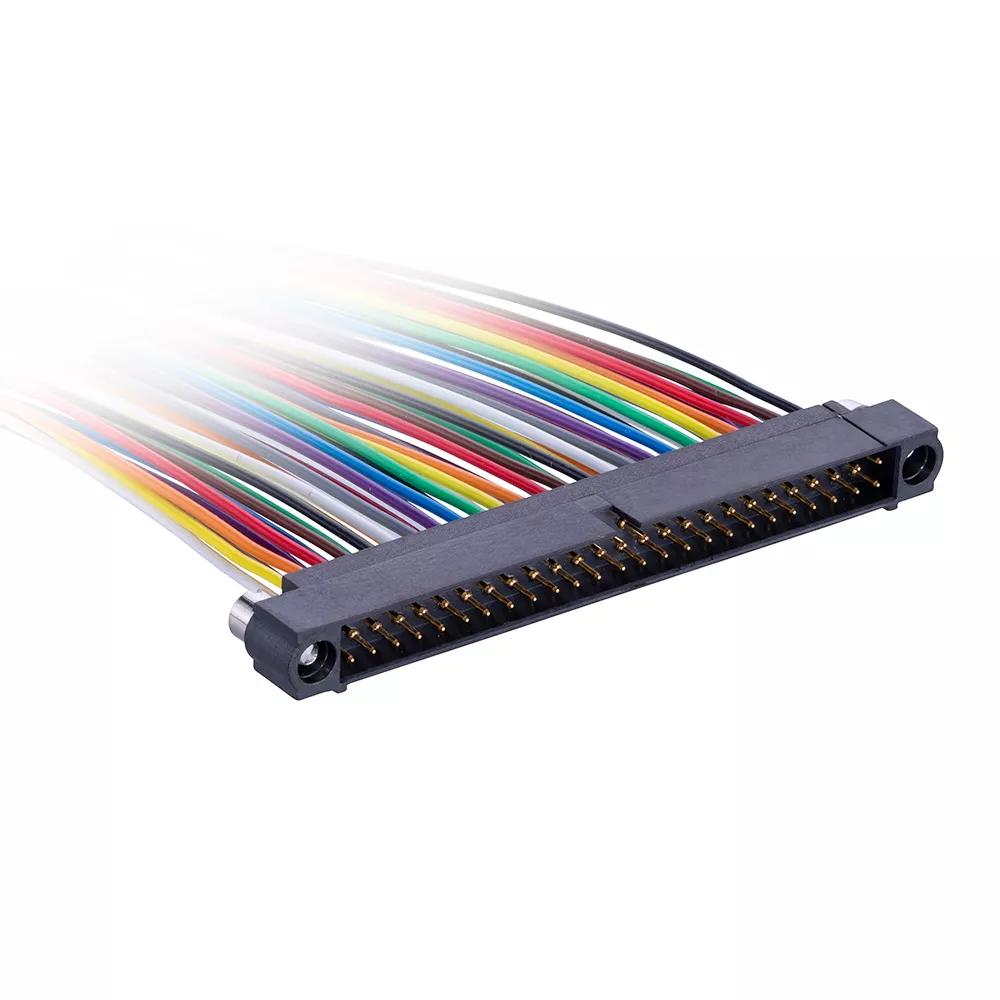

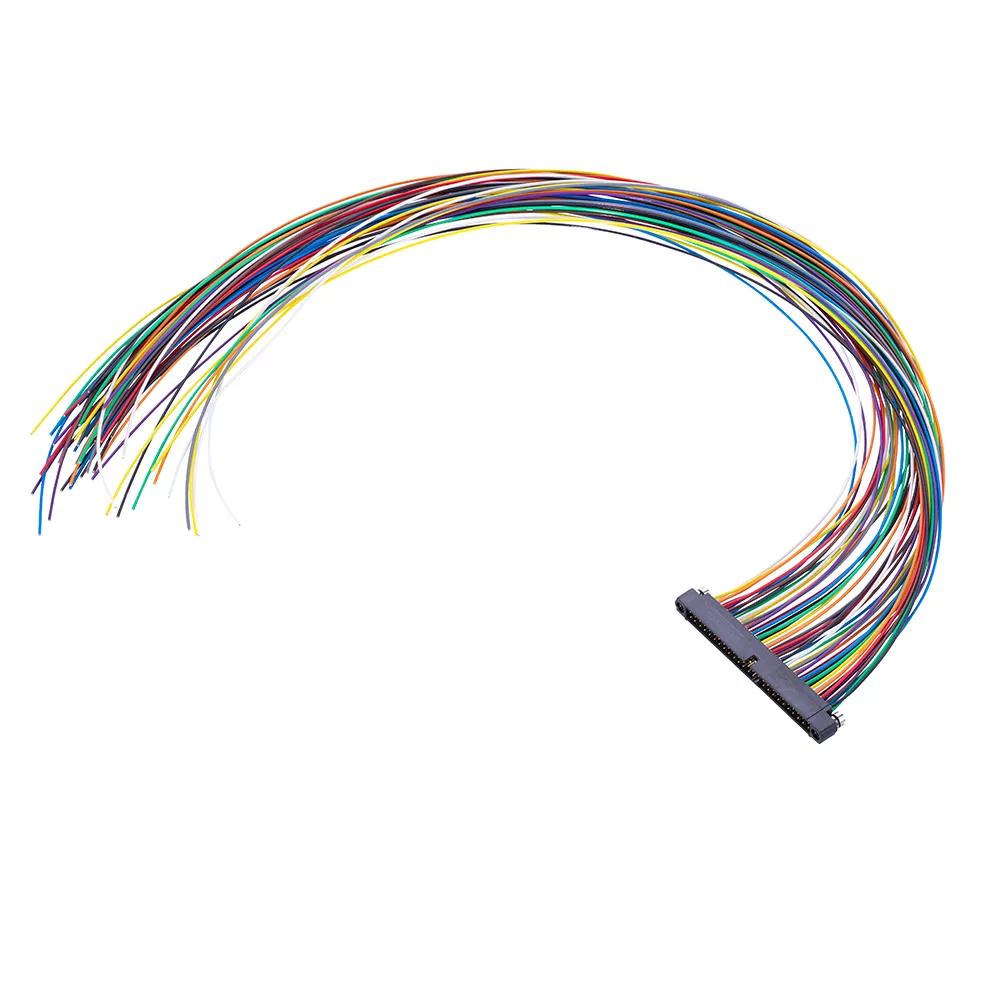

Male Single-Ended with multicolor 24 AWG cable, 450mm – 50 contacts (25+25). Fitted with floating jackscrews, slotted head. Gold finish on connector contact area.
Manufactured with the M80-5635005 Double Row crimp connector kit. Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-MC25068MA-0450L - 25+25 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Slotted Head (Reverse Fix)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

58.41g

Overall Dimensions (L x W x D) in mm:

450.00 x 60.00 x 6.00

Thread Size:

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles
