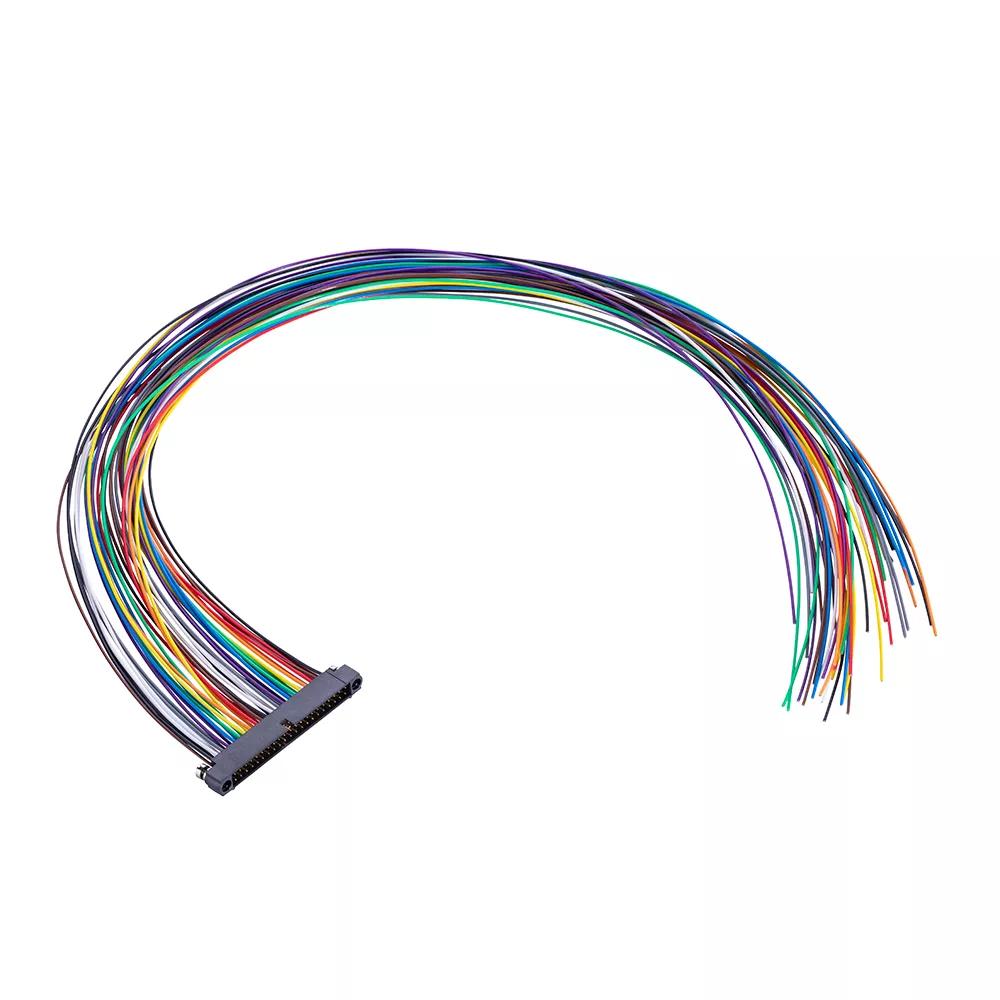

M80-MC24268MA-0450L

21+21 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix


2.00mm Pitch High-Reliability Connector - Datamate J-Tek

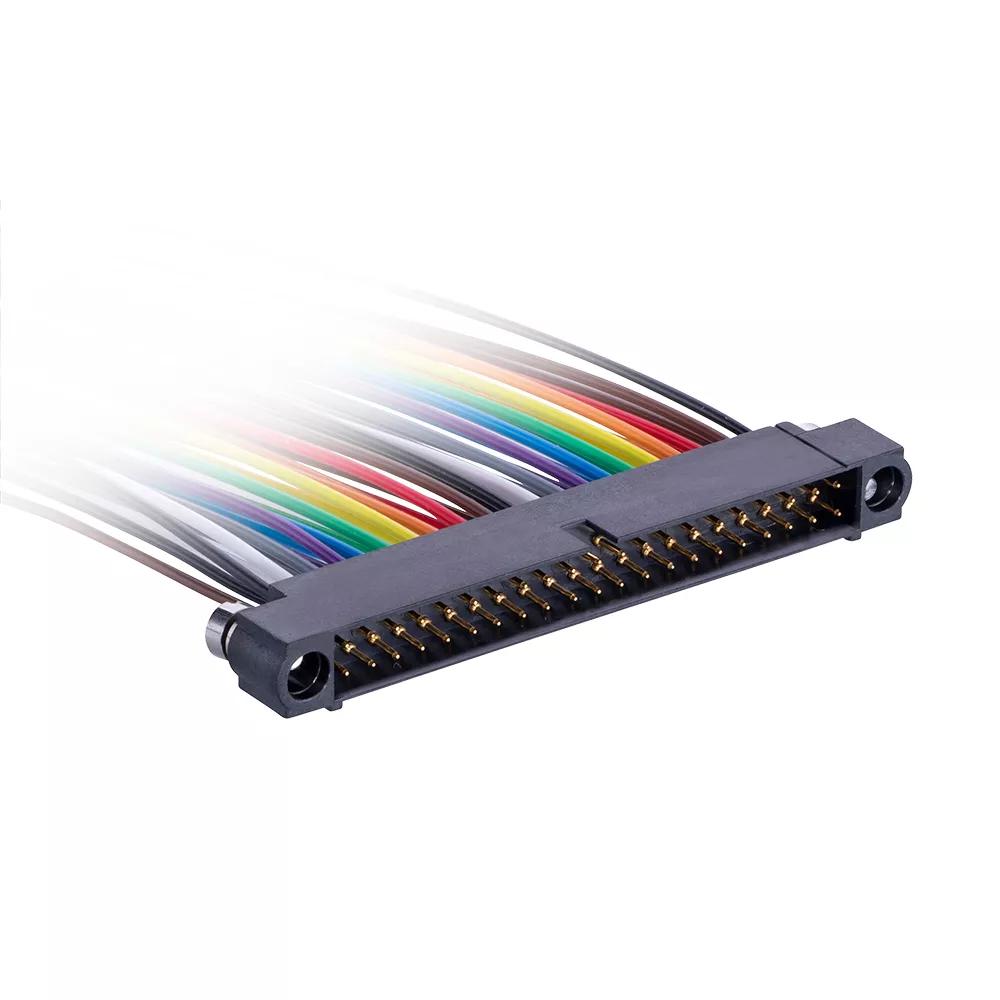

  • Male Single-Ended with multicolor 24 AWG cable, 450mm (18") long - 42 contacts (21+21). Fitted with floating jackscrews, slotted head.

  • Manufactured with the M80-5624205 Double Row crimp connector housing and M80-1940005 crimp contact. Gold finish on contact areas.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    24 AWG

  • Mating Pin Size:

    Ø0.5mm

  • Style of Jackscrews:

    Floating Jackscrew with Slotted Head (Reverse Fix)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    42

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    Dependent on mating contact

  • Weight:

    49.244g

  • Dimensions:

    450.00 x 52.00 x 6.00

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • RoHS - M80-MC24268MA-0450L

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-MCXXX68MA-XXXXL.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Panel Mount with Datamate

  • Catalog page - Datamate J-Tek Mating Profiles

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Test Reports

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
