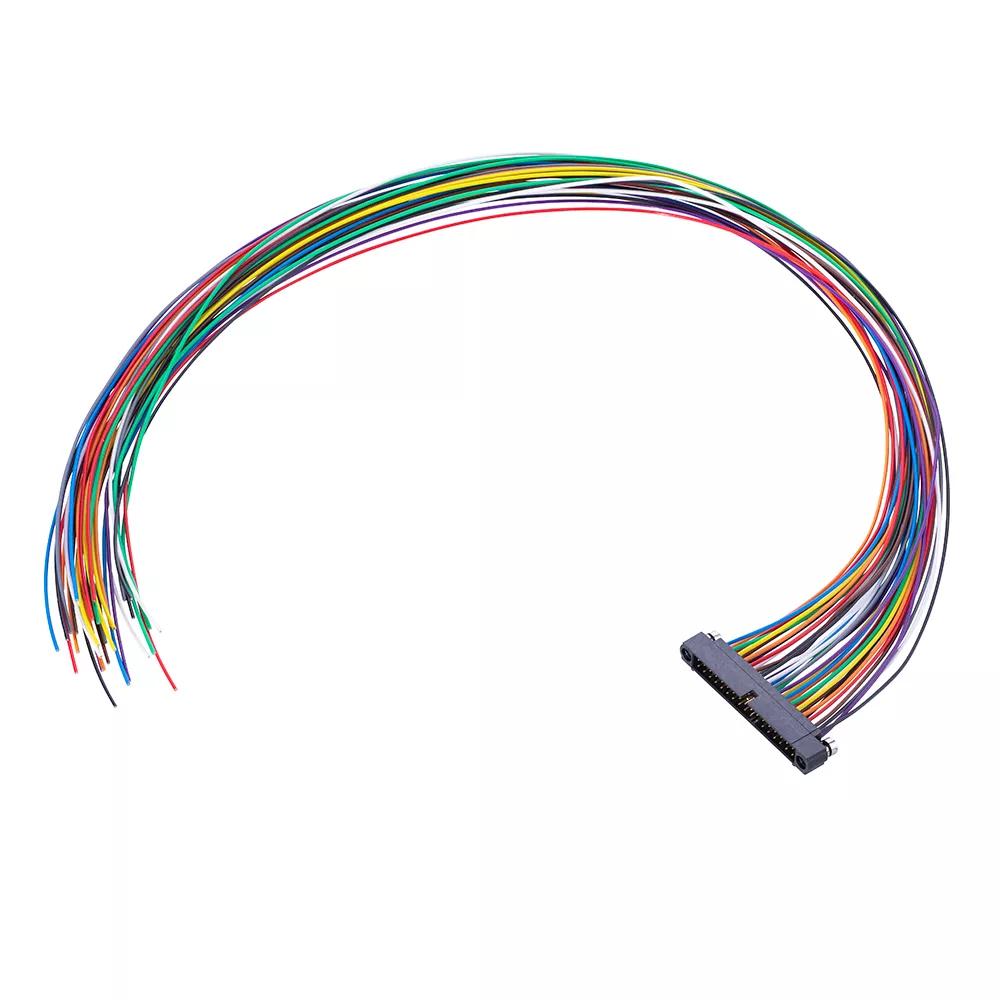

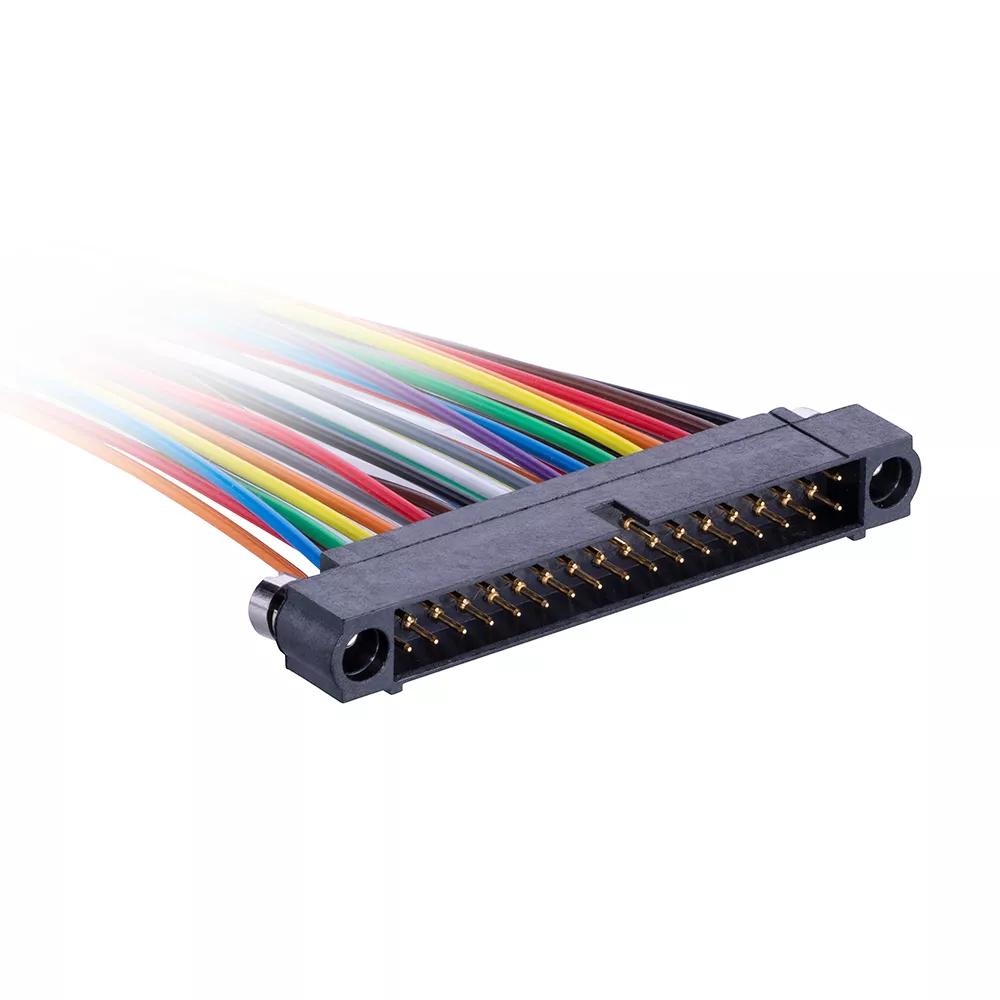

17+17 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Male Single-Ended with multicolor 24 AWG cable, 450mm – 34 contacts (17+17). Fitted with floating jackscrews, slotted head. Gold finish on connector contact area.
- Manufactured with the M80-5633405 Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Slotted Head (Reverse Fix)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
450.00 x 44.00 x 6.00
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
