M80-MC21468MA-0450L

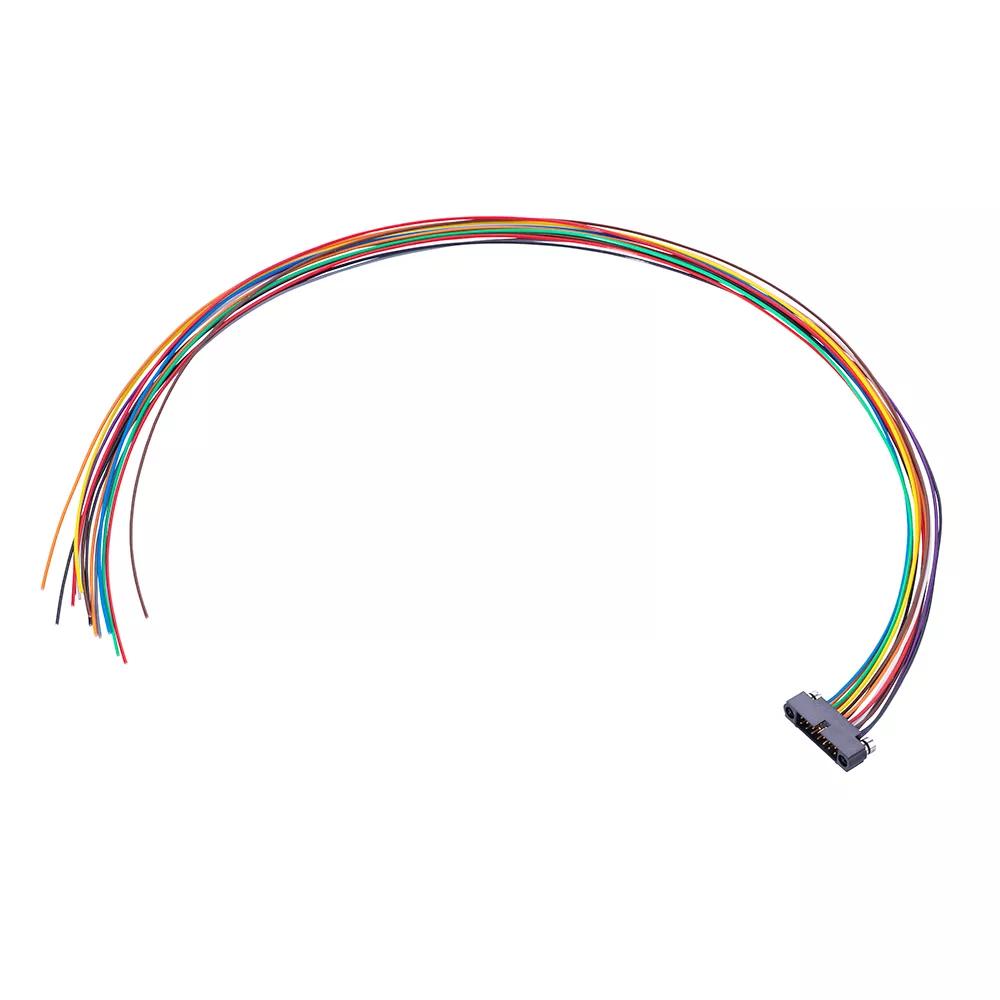

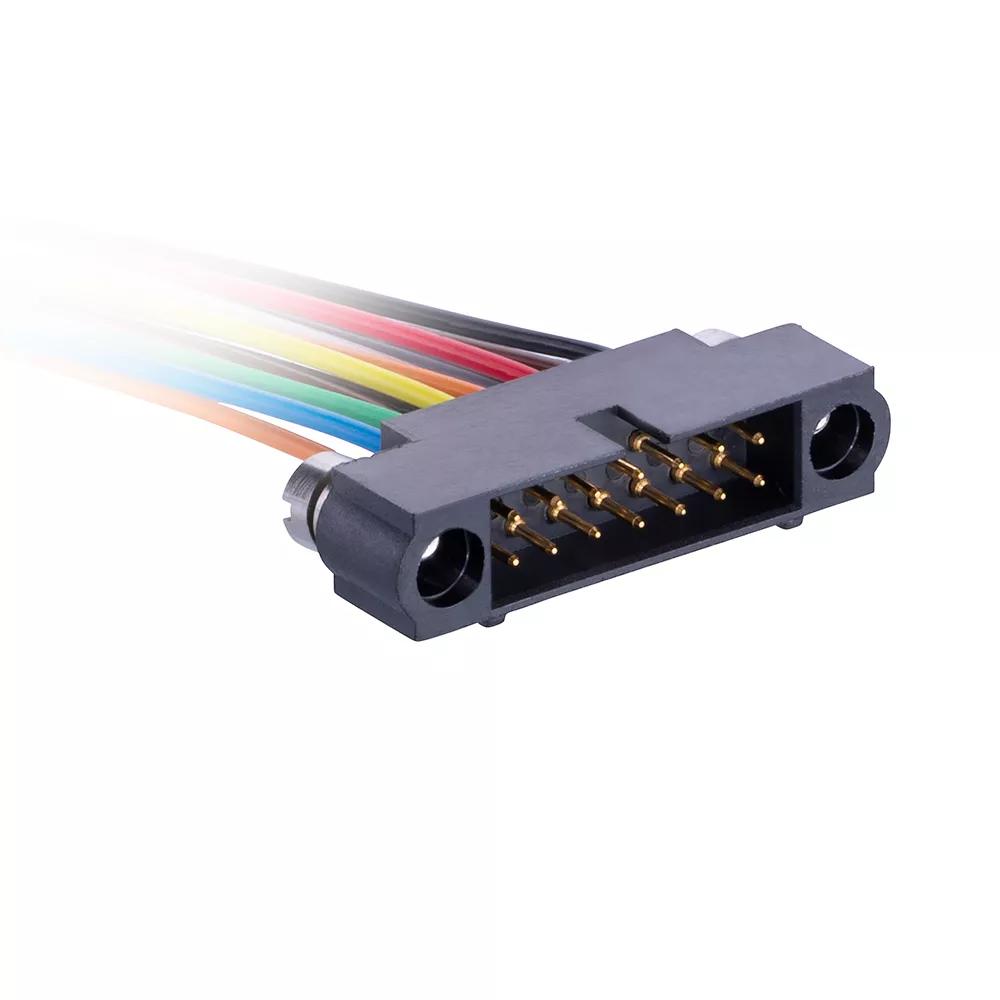

7+7 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Male Single-Ended with multicolor 24 AWG cable, 450mm – 14 contacts (7+7). Fitted with floating jackscrews, slotted head. Gold finish on connector contact area.
Manufactured with the M80-5631405 Double Row crimp connector kit. Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

Request Samples

Availability

M80-MC21468MA-0450L - 7+7 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Slotted Reverse Fix Jackscrew

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

17.162g

Overall Dimensions (L x W x D) in mm:

450.00 x 24.00 x 6.00

Thread Size:

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Availability

20 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 10

Buy now

Distributor TTI Inc

Location USA

Quantity (Updated Daily) 10

Buy now

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M80-MCXXX68MA-XXXXL.pdf

ZIP

M80-MC21468MA-XXXXL CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF

Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration, Shock and Bump

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Datamate J-Tek Male Cable Assemblies

PDF

Catalog page - Datamate J-Tek Mating Profiles

PDF

Catalog page - Datamate J-Tek Specification, Pin Numbering

PDF

Catalog page - Datamate Introduction

PDF

Product Summary - Datamate Cable Assemblies Off-The-Shelf

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors

PDF

Outgassing data for Harwin products (plastics)

PDF

Plating thickness on Datamate signal contacts & T-Contact
