Home > M80-MC20668MA-0450L
Active Product

M80-MC20668MA-0450L

3+3 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

38 in stock   Check availability

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

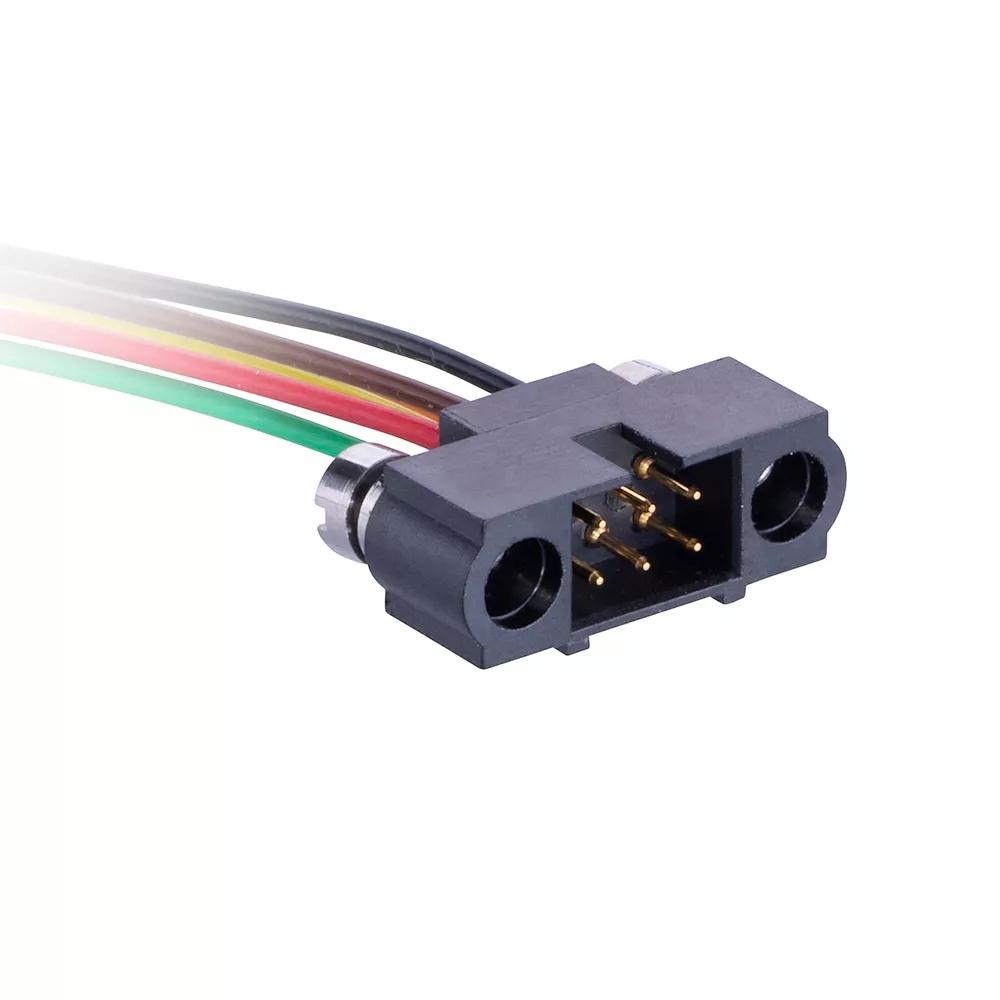

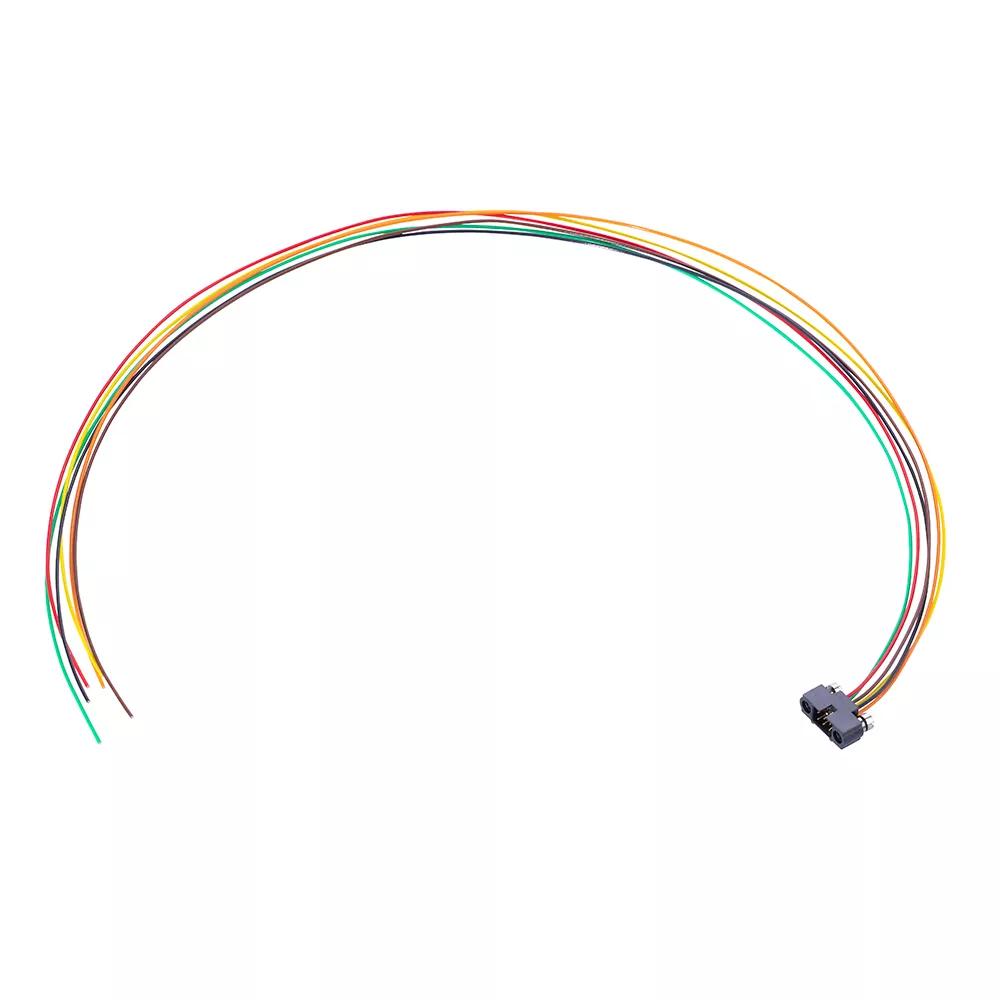

  • Male Single-Ended with multicolor 24 AWG cable, 450mm – 6 contacts (3+3). Fitted with floating jackscrews, slotted head. Gold finish on connector contact area.
  • Manufactured with the M80-5630605 Double Row crimp connector kit. Gold finish on contact areas.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Slotted Head (Reverse Fix)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

7.996g

Overall Dimensions (L x W x D) in mm:

450.00 x 16.00 x 6.00

Thread Size:

M2
