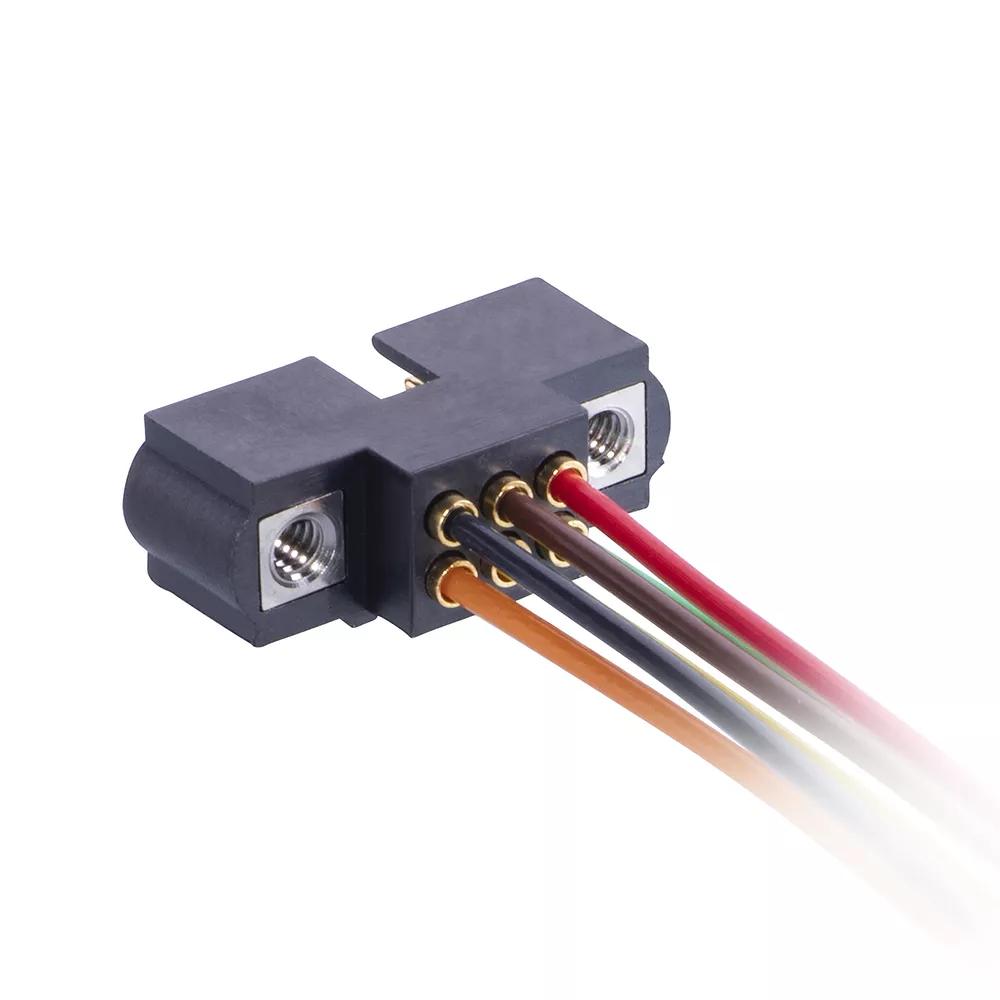

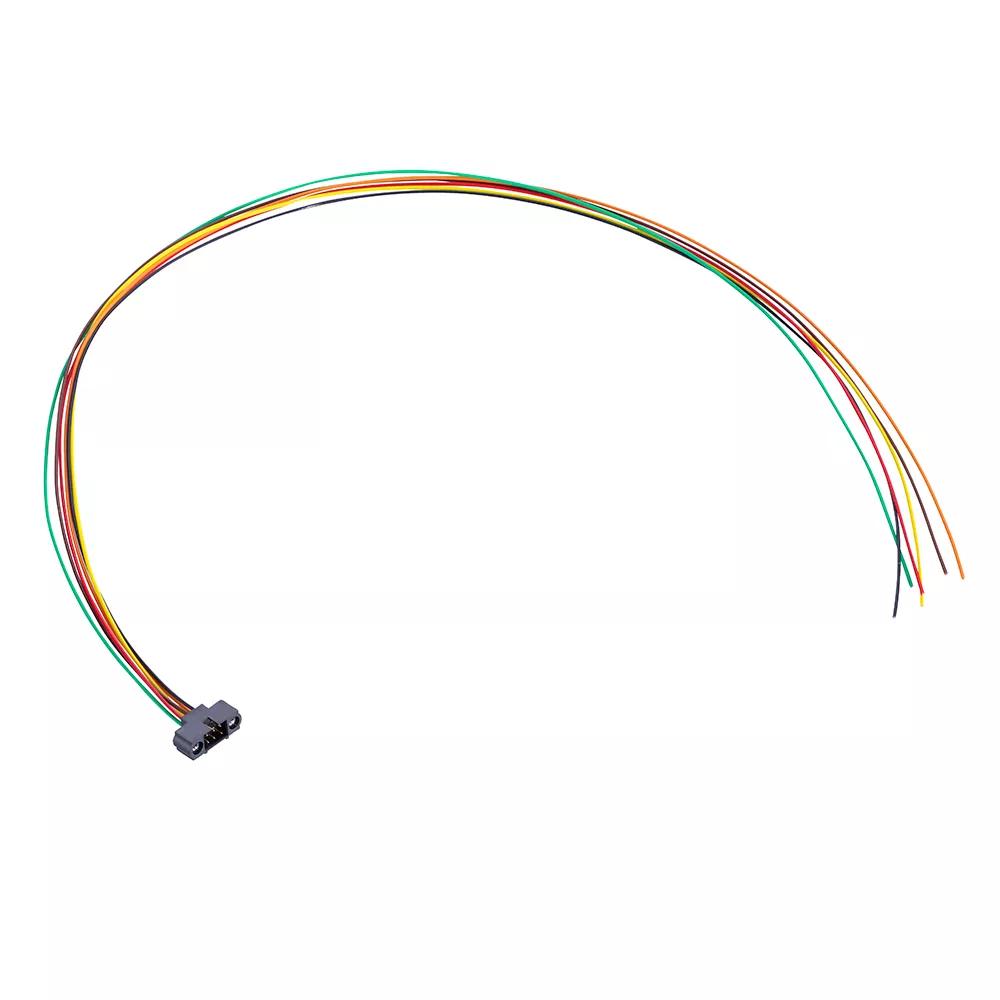

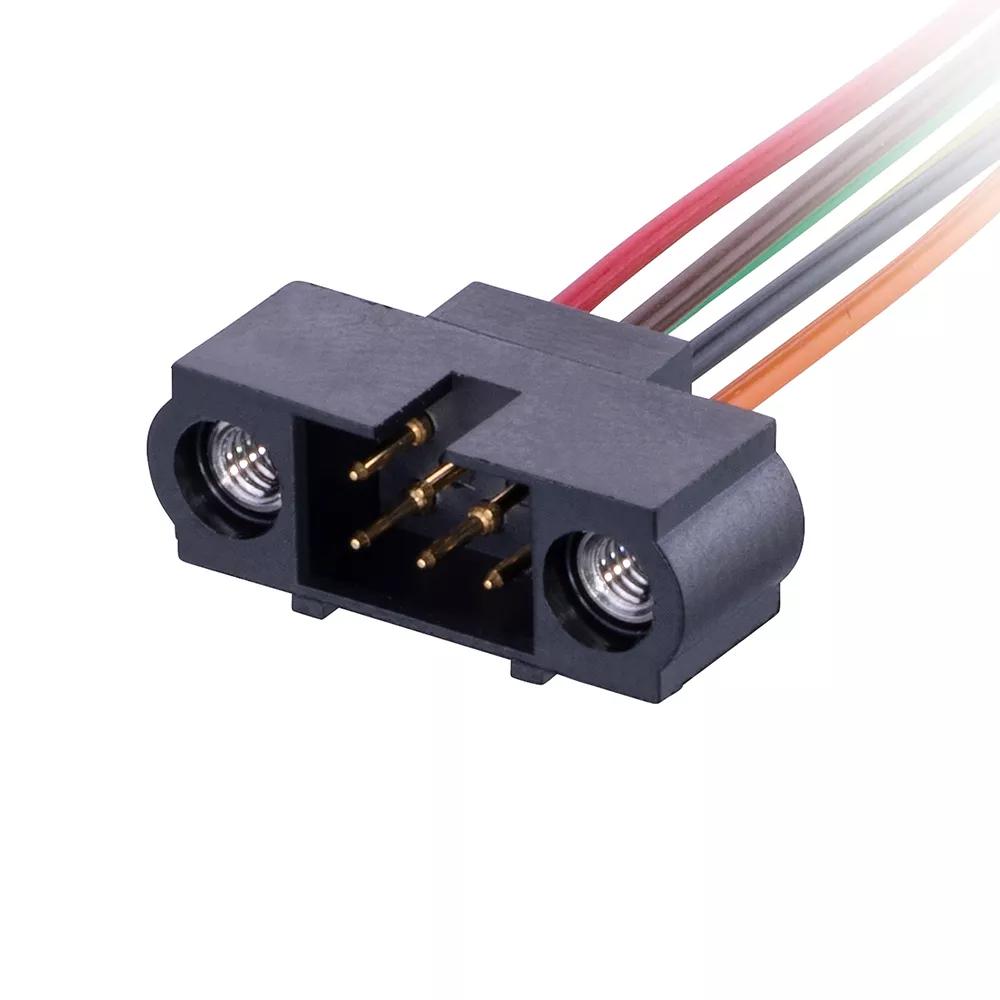

3+3 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Male Single-Ended with multicolor 24 AWG cable, 450mm – 6 contacts (3+3). Fitted with internally threaded jackscrews. Gold finish on connector contact area.
- Manufactured with the M80-5610605 Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
450.00 x 16.00 x 6.00
40 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
