M80-MC20468MA-0450L
2+2 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Reverse Fix
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
69 in stock Check availability
4 similiar products View products
Samacsys account required
No login is required
Product Description

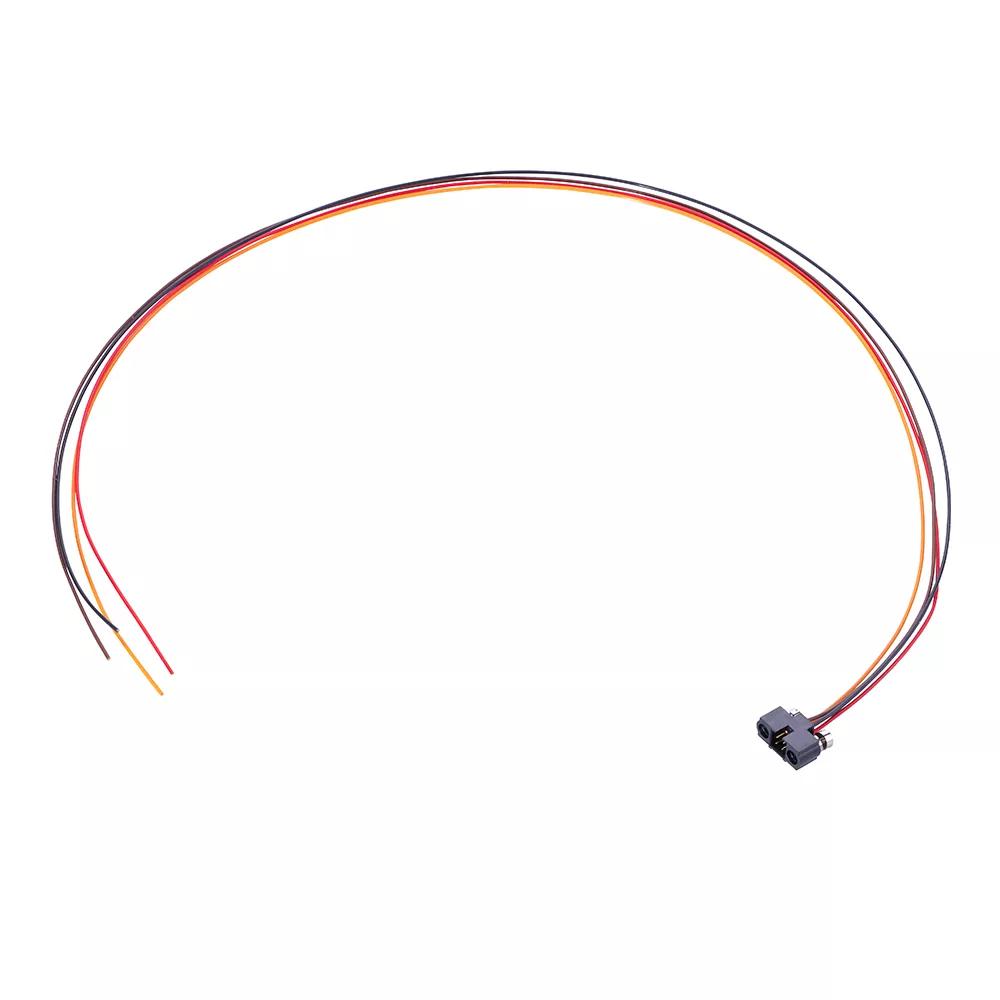

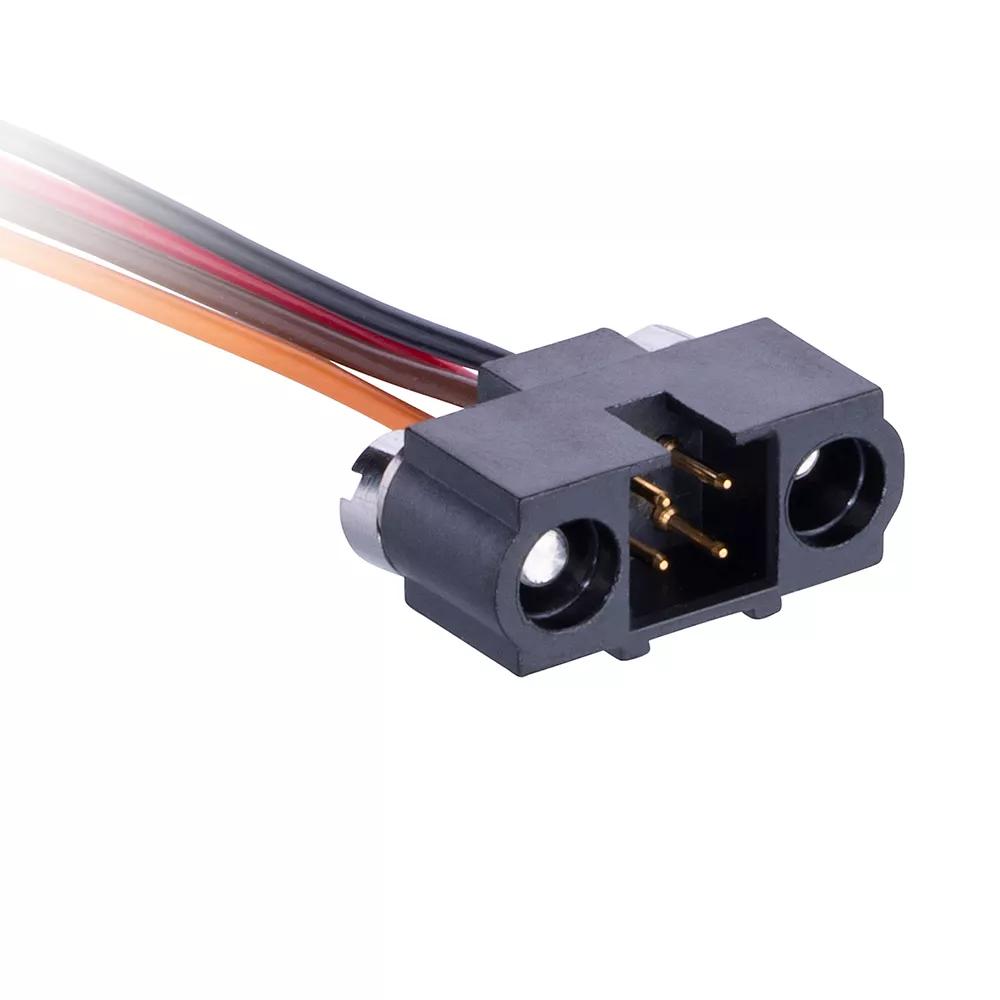

- Male Single-Ended with multicolor 24 AWG cable, 450mm – 4 contacts (2+2). Fitted with floating jackscrews, slotted head. Gold finish on connector contact area.
- Manufactured with the M80-5630405 Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
24AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
Dependent on mating contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Slotted Head (Reverse Fix)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
4
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
5.705g
Overall Dimensions (L x W x D) in mm:
450.00 x 14.00 x 6.00
Thread Size:
M2
Mating Profiles:
