Active

M80-MC20468M1-0450L

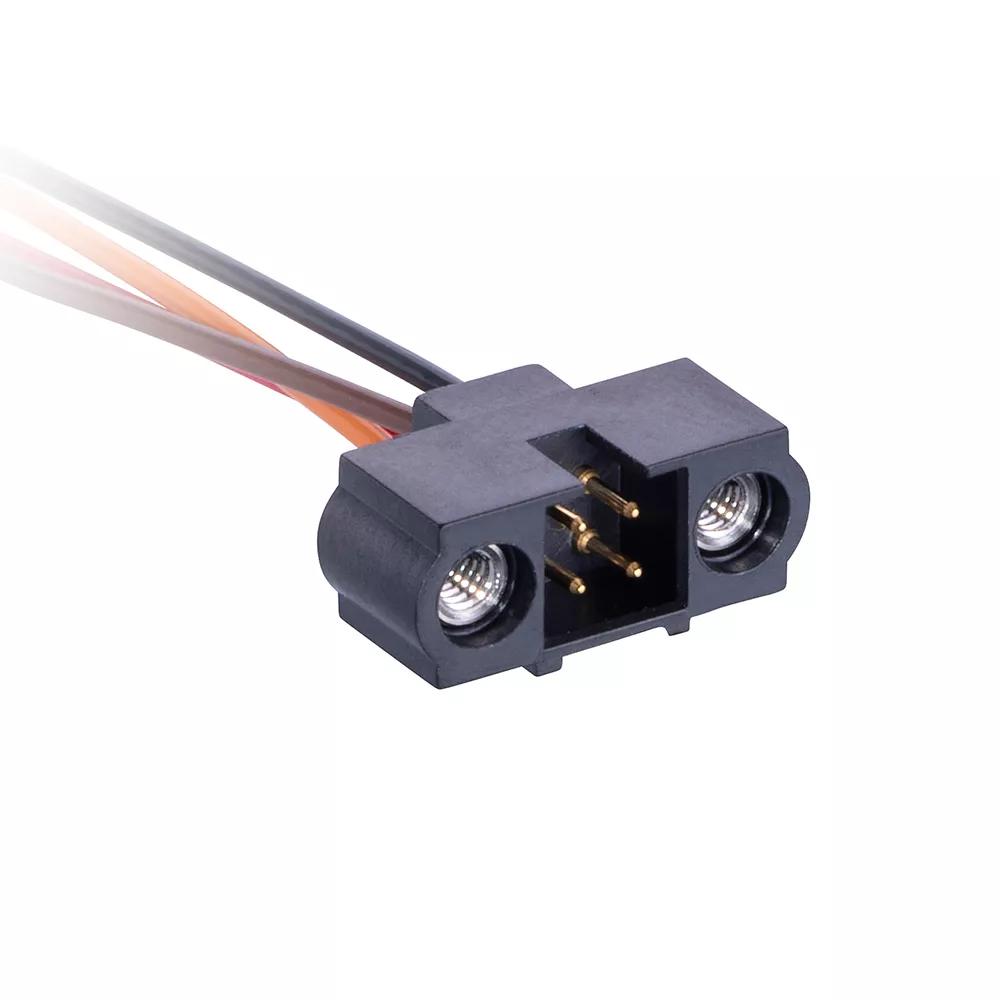

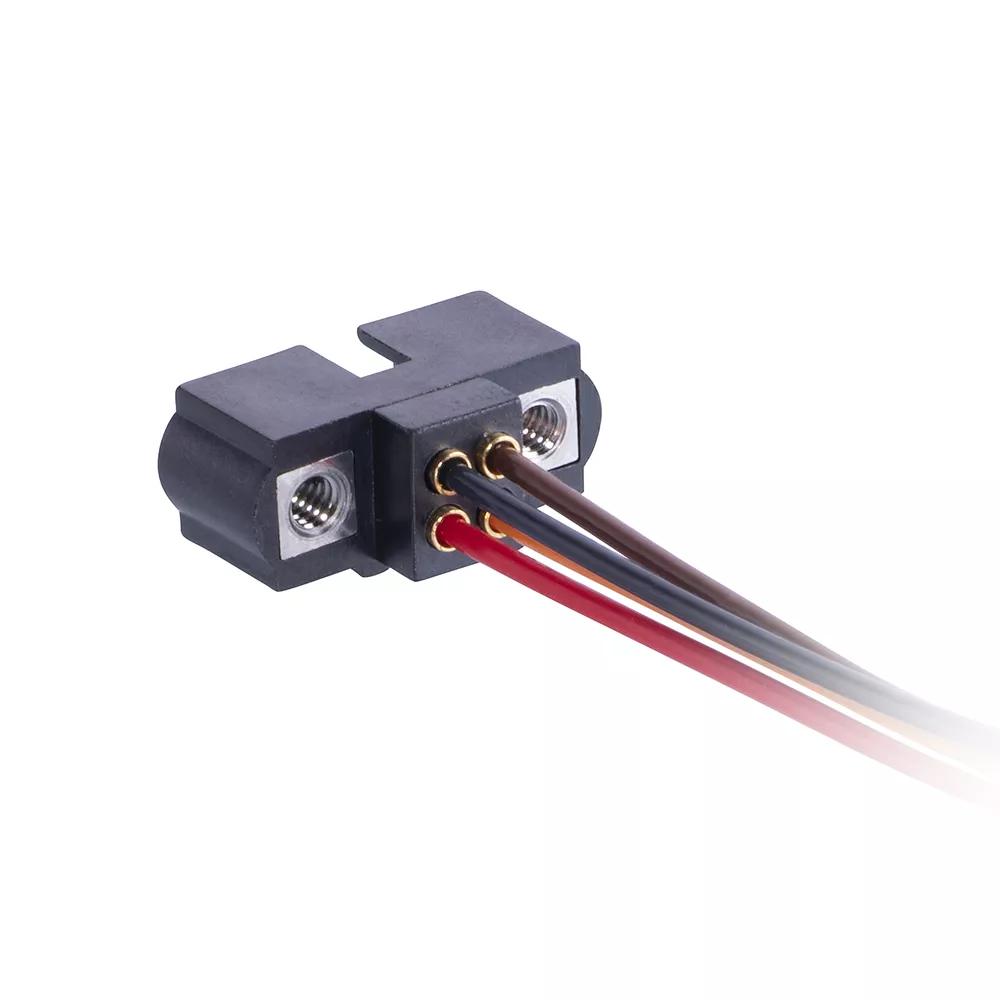

2+2 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

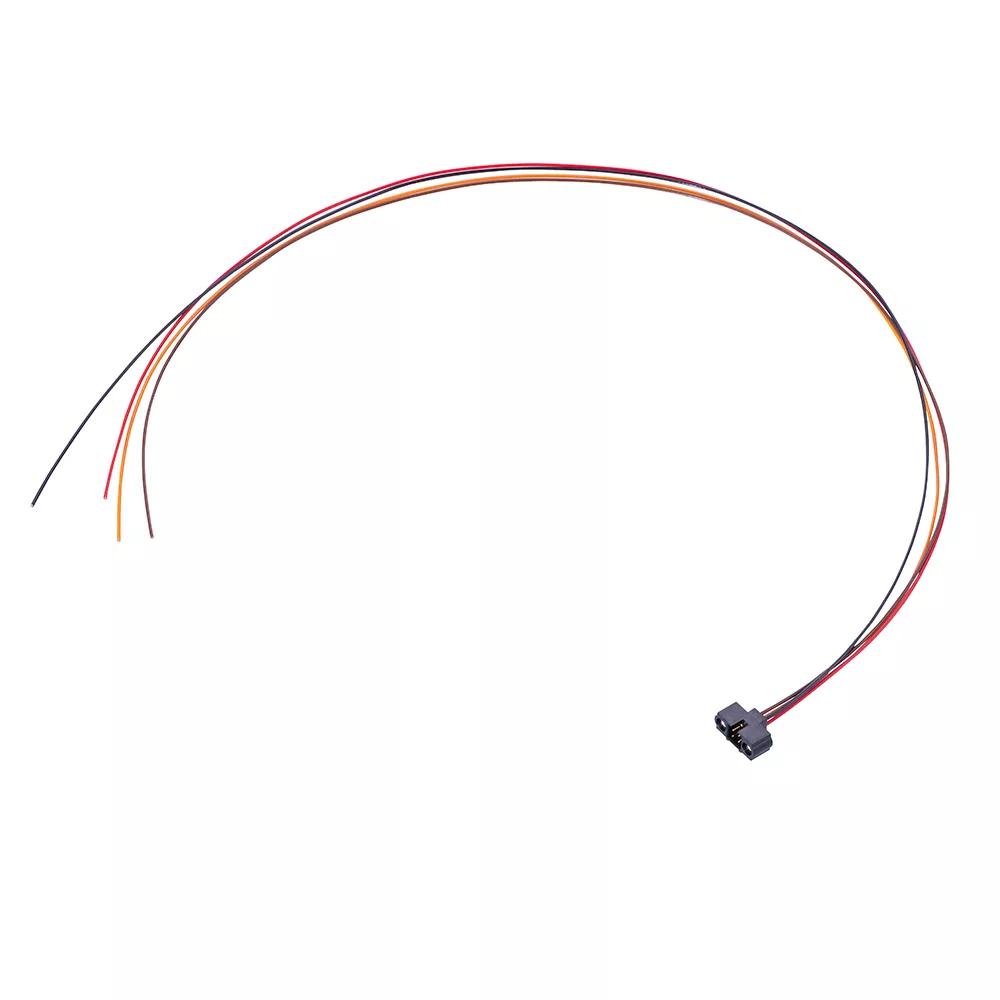

Male Single-Ended with multicolor 24 AWG cable, 450mm – 4 contacts (2+2). Fitted with internally threaded jackscrews. Gold finish on connector contact area.
Manufactured with the M80-5610405 Double Row crimp connector kit. Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

Request Samples

Availability

M80-MC20468M1-0450L - 2+2 Pos. Male DIL 24AWG Cable Assembly, 450mm, single-end, Jackscrews

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Jackscrew

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

5.24g

Overall Dimensions (L x W x D) in mm:

450.00 x 14.00 x 6.00

Thread Size:

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Availability

10 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor TTI Inc

Location USA

Quantity (Updated Daily) 10

Buy now
