M80-FF22068F2-0450L

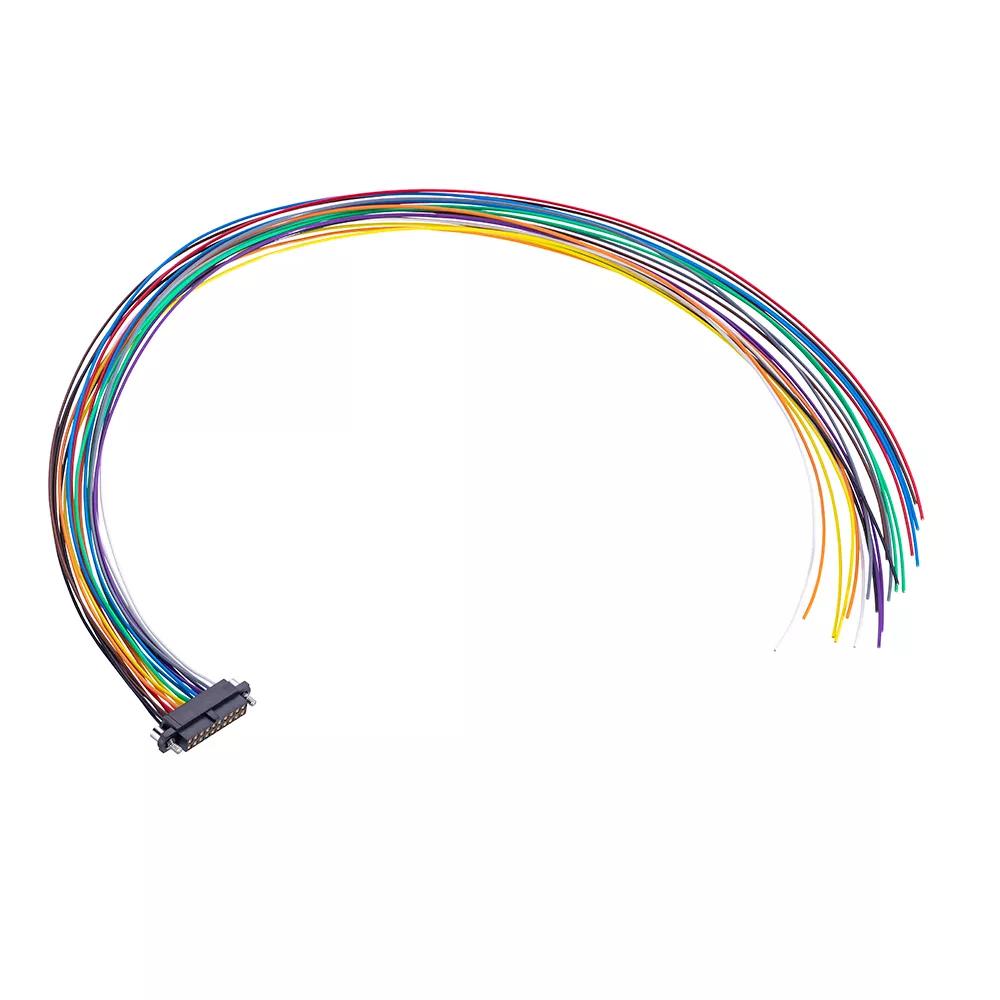

10+10 Pos. Female DIL 24AWG Cable Assembly, 450mm, single-end, Extended Wall, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
21 in stock Check availability
6 similiar products View products
Samacsys account required
No login is required
Product Description

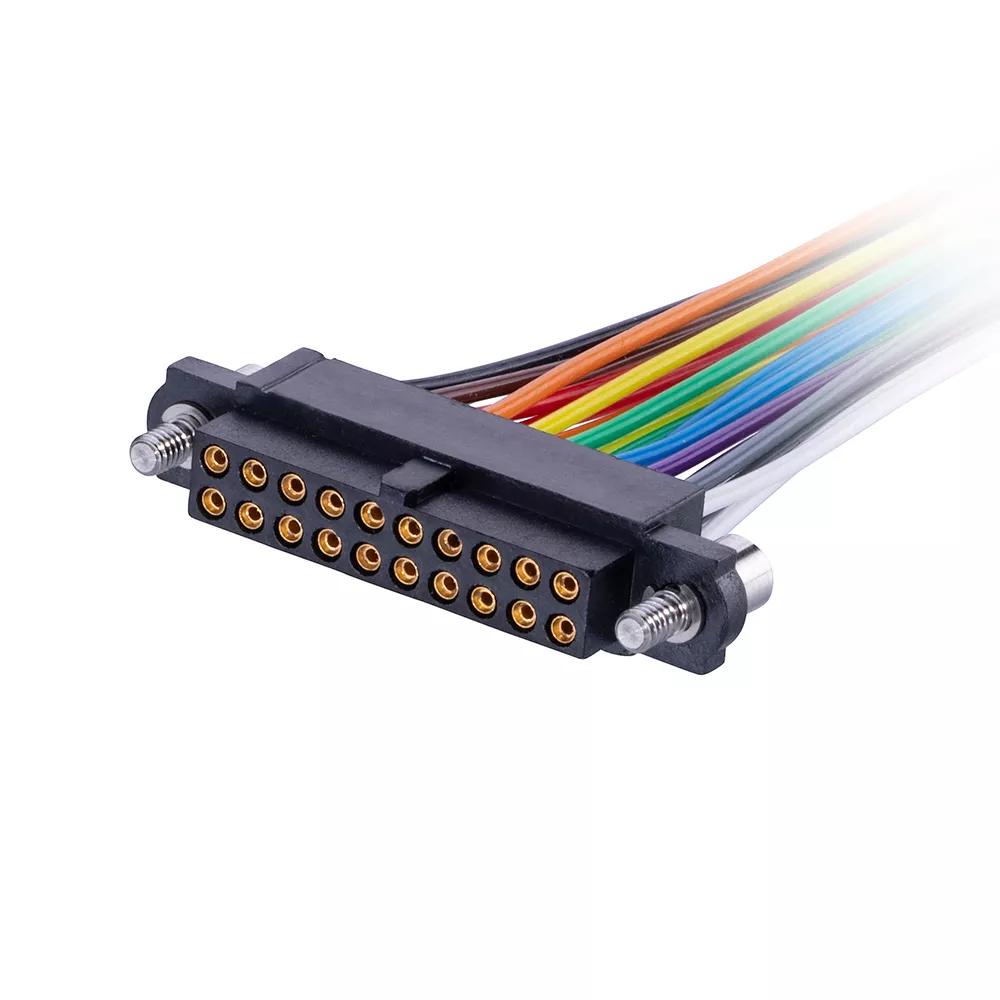

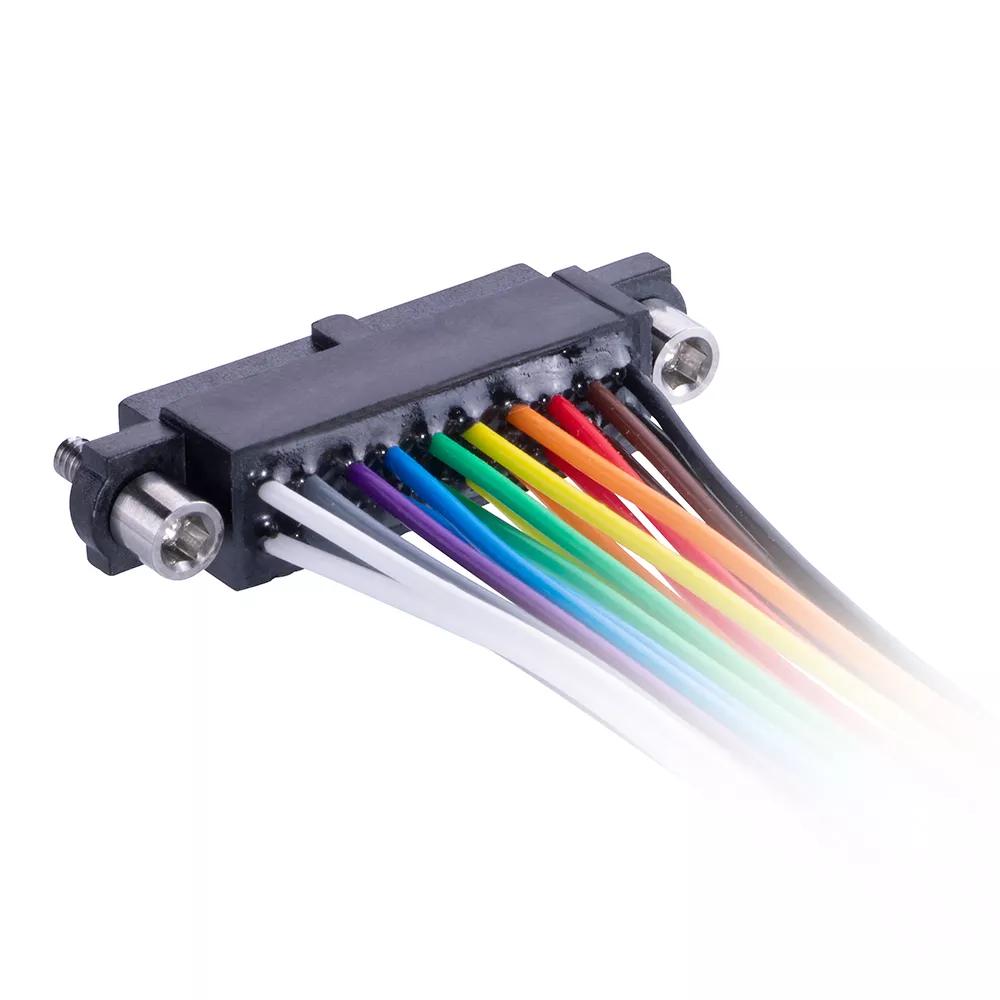

- Female Single-Ended with multicolor 24 AWG cable, 450mm – 20 contacts (10+10). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area. Backpotted inside 1mm rear extended wall.
- Manufactured with the M80-4862005A Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable Assembly
Cable Conductor Size:
24AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
20
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
24.135g
Overall Dimensions (L x W x D) in mm:
450.30 x 30.00 x 5.50
Thread Size:
M2
Mating Profiles:
