5+5 Pos. Female DIL 24AWG Cable Assembly, 450mm, single-end, Extended Wall, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
15 in stock Check availability
6 similiar products View products

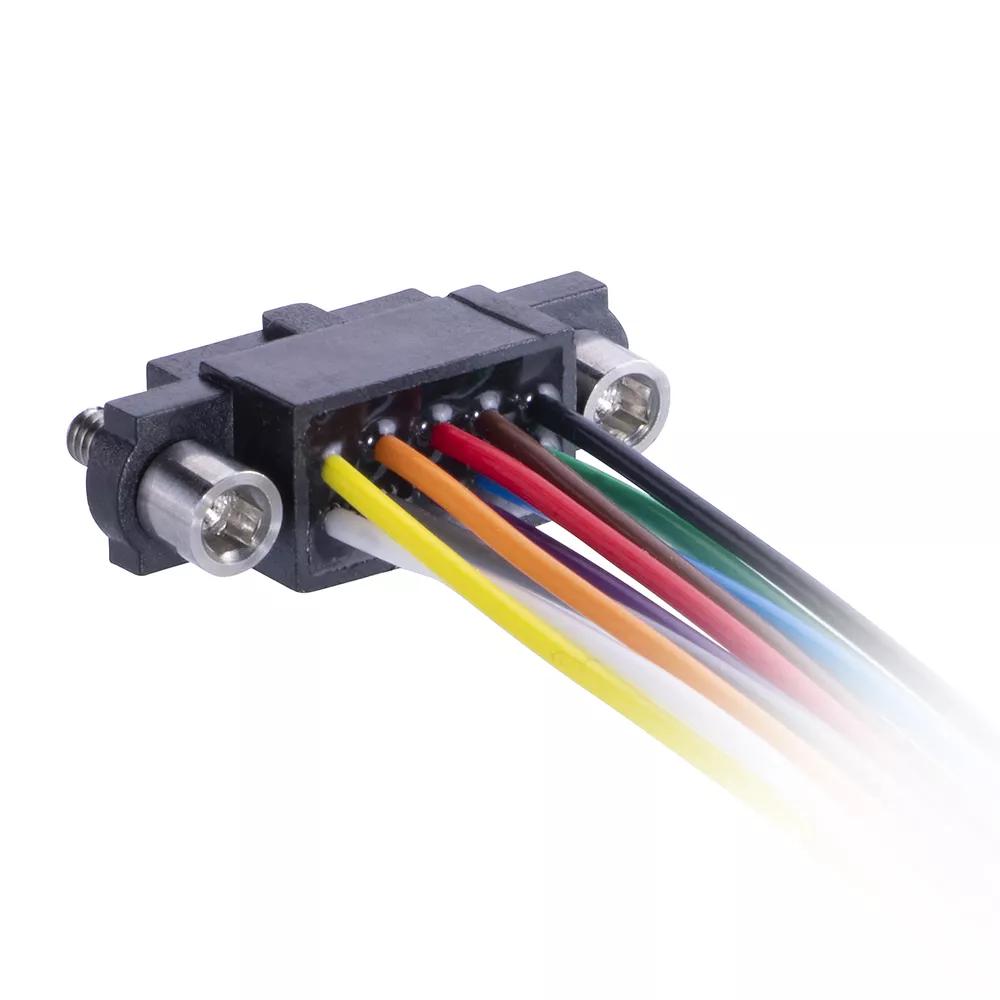

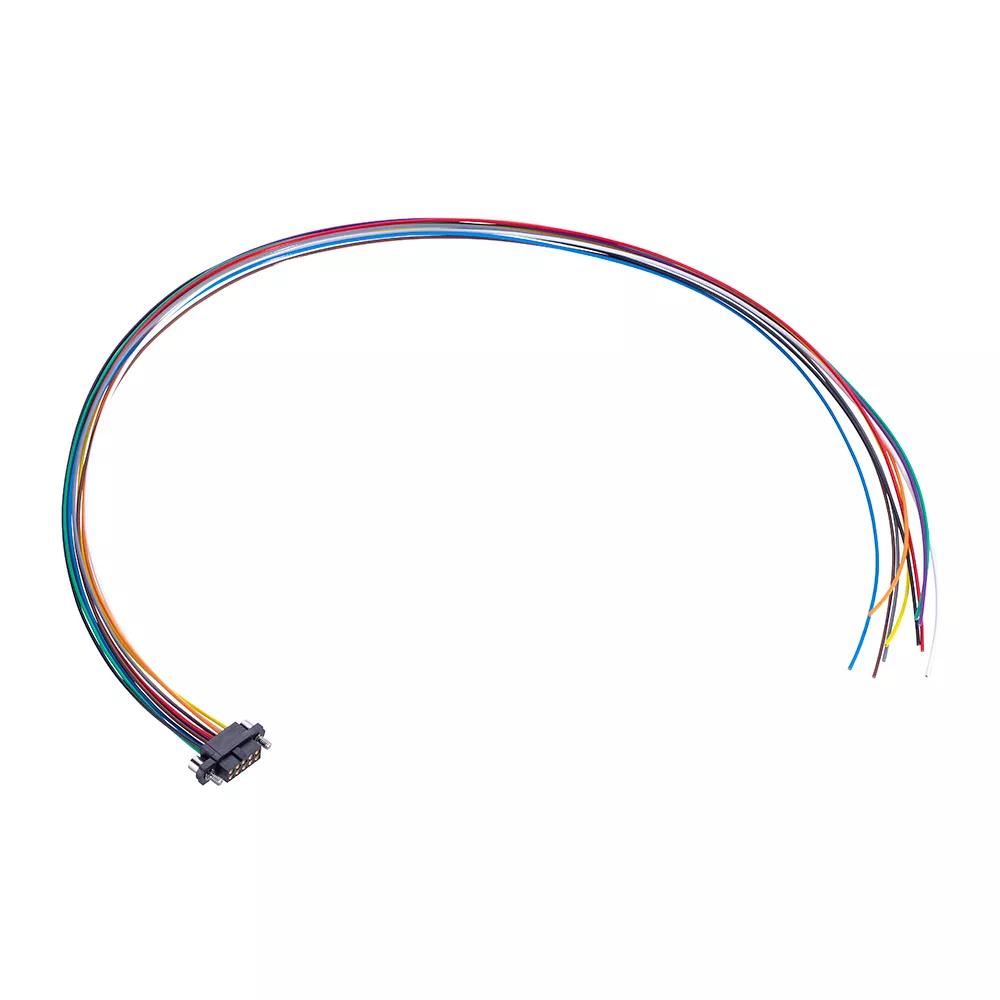

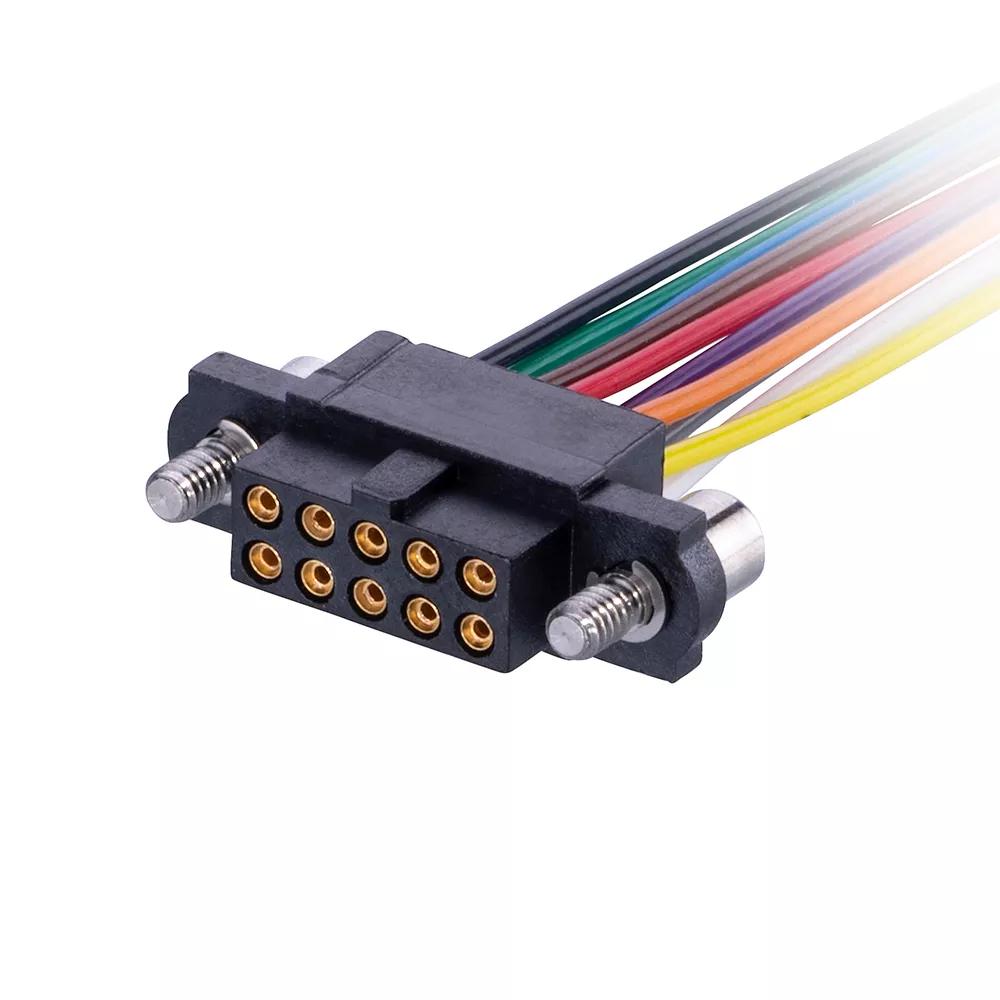

- Female Single-Ended with multicolor 24 AWG cable, 450mm – 10 contacts (5+5). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area. Backpotted inside 1mm rear extended wall.
- Manufactured with the M80-4861005A Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
450.30 x 20.00 x 5.50
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
How can we help you?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
