Active

M80-FE21068F2-0450L

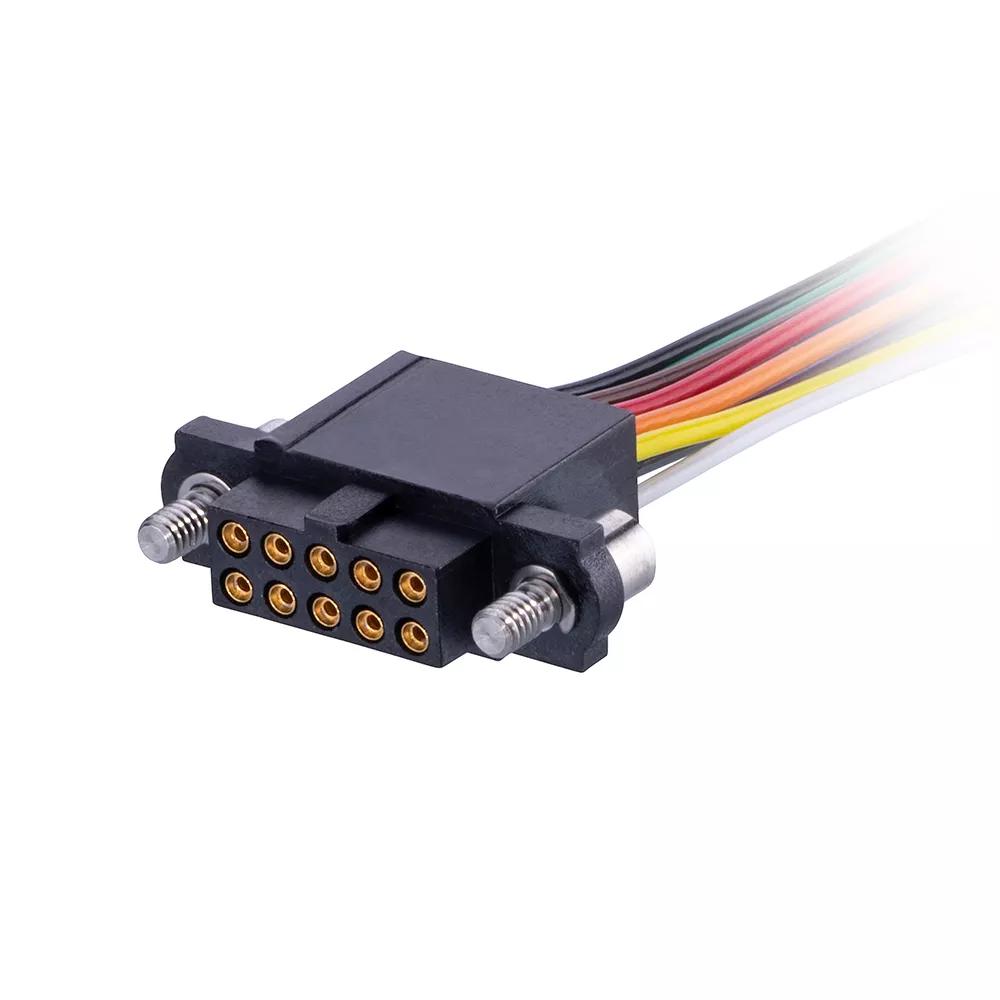

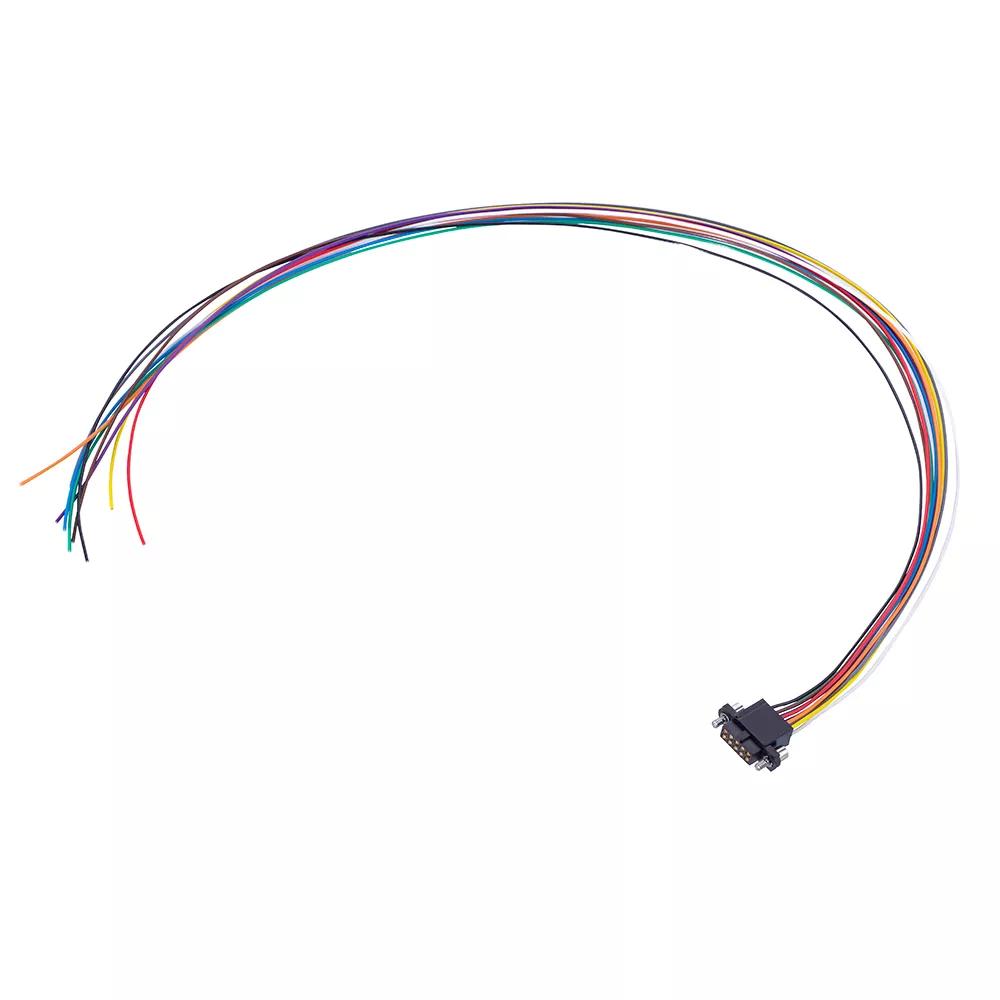

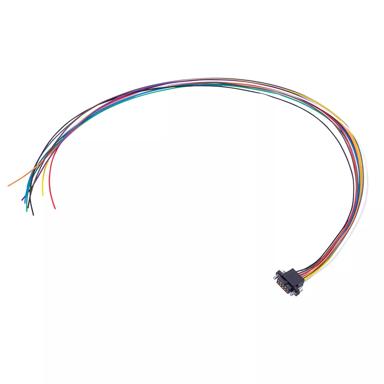

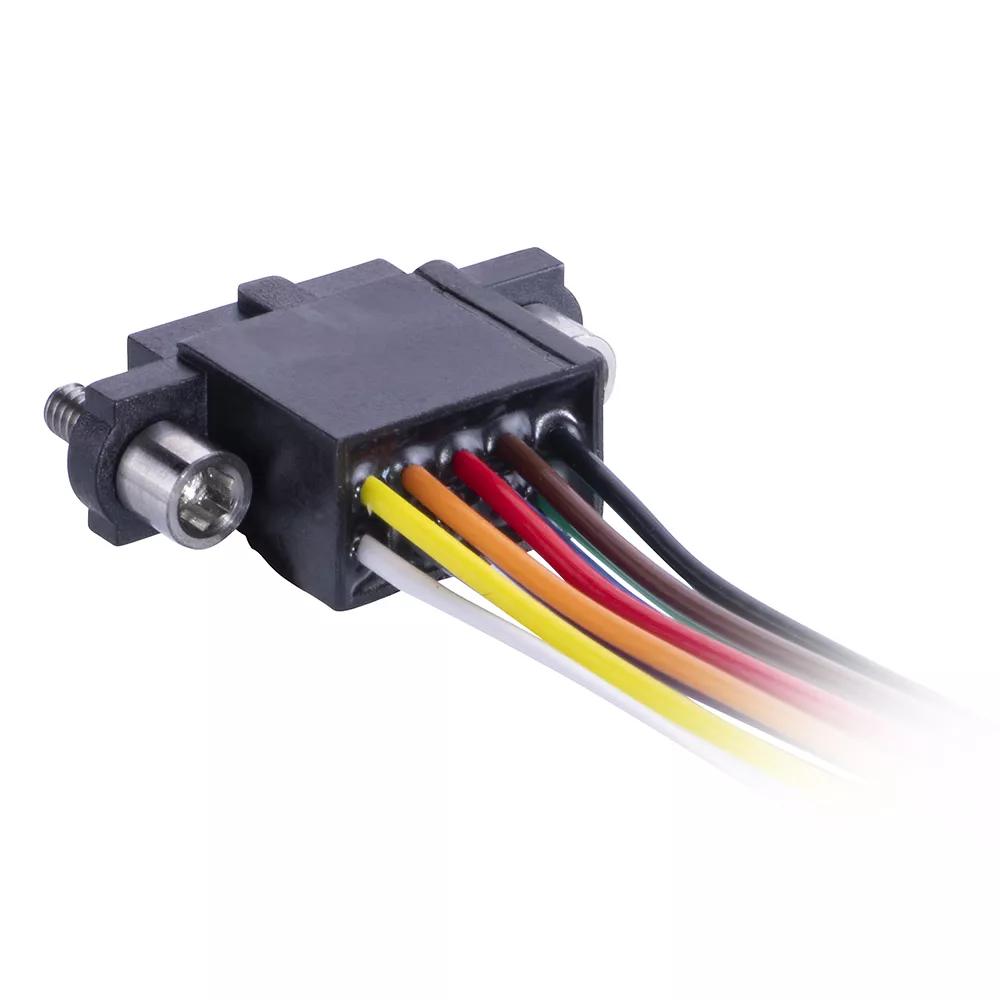

5+5 Pos. Female DIL 24AWG Cable Assembly, 450mm, single-end, Extended Wall, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Female Single-Ended with multicolor 24 AWG cable, 450mm – 10 contacts (5+5). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area. Backpotted inside 5mm rear extended wall.
Manufactured with the M80-4861005 Double Row crimp connector kit. Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

Request Samples

Availability

M80-FE21068F2-0450L - 5+5 Pos. Female DIL 24AWG Cable Assembly, 450mm, single-end, Extended Wall, Jackscrews

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

24AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Socket Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

12.552g

Overall Dimensions (L x W x D) in mm:

450.30 x 20.00 x 5.50

Thread Size:

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Availability

13 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 9

Buy now

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 4

Buy now

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M80-FXXXX68F2-XXXXL.pdf

ZIP

M80-FE21068F2-XXXXL CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

PDF

Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration, Shock and Bump

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

Catalog page - Datamate J-Tek Female Cable Assemblies

PDF

Catalog page - Datamate J-Tek Mating Profiles

PDF

Catalog page - Datamate J-Tek Specification, Pin Numbering

PDF

Catalog page - Datamate Introduction

PDF

Product Summary - Datamate Cable Assemblies Off-The-Shelf

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors

PDF

Outgassing data for Harwin products (plastics)

PDF

Plating thickness on Datamate signal contacts & T-Contact
