M80-FD20268L0-0150L
2 Pos. Female SIL 24AWG Cable Assembly, 150mm, single-end, for Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
32 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description

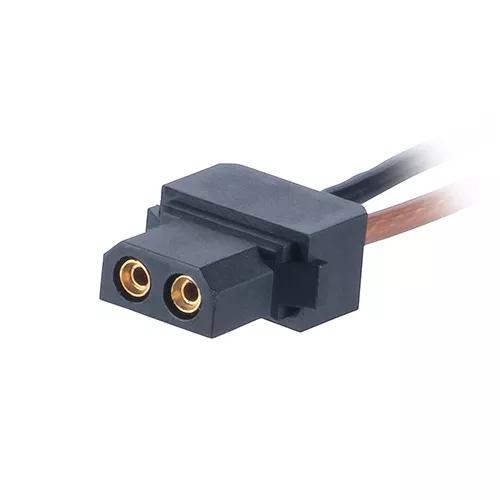

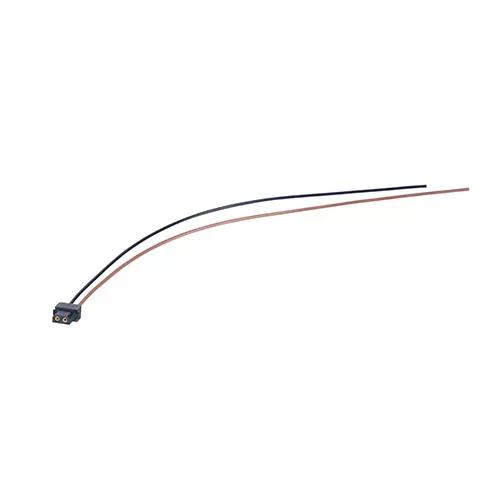

- Female Single-Ended with multicolor 24 AWG cable, 150mm (6″) – 2 contacts. Compatible housing style for male connectors with latches (L-Tek). Gold finish on connector contact area.
- Manufactured with the M80-8980205 Single Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable Assembly
Cable Conductor Size:
24AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Style of Latches:
Compatible with latches
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PBT
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.966g
Overall Dimensions (L x W x D) in mm:
150.00 x 7.15 max x 3.40
Mating Profiles:
Frequently Asked Questions Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Was this answer useful?
