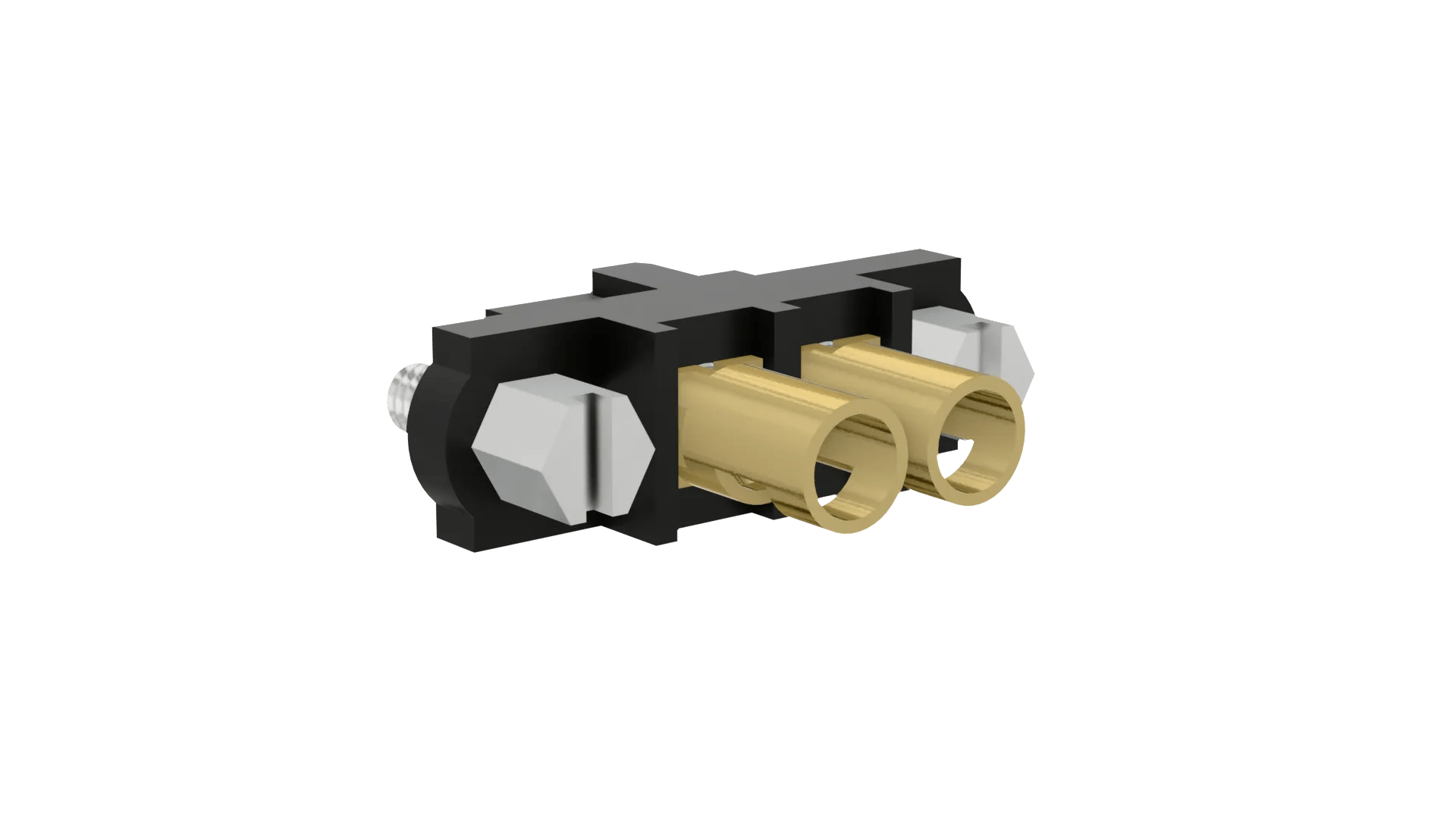

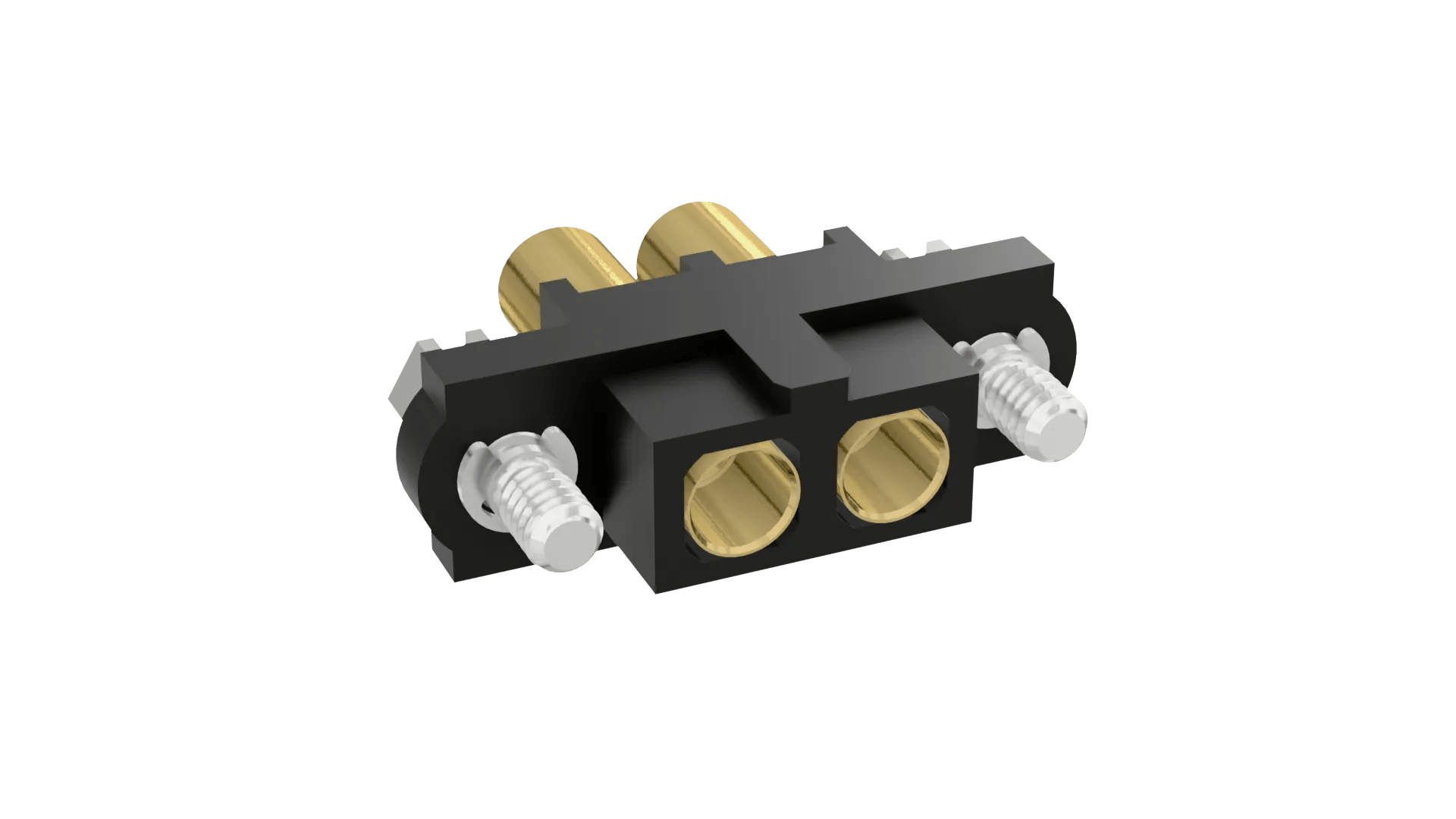

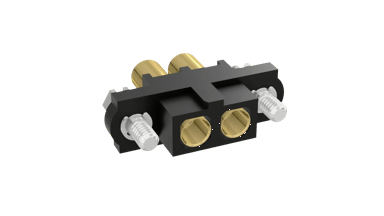

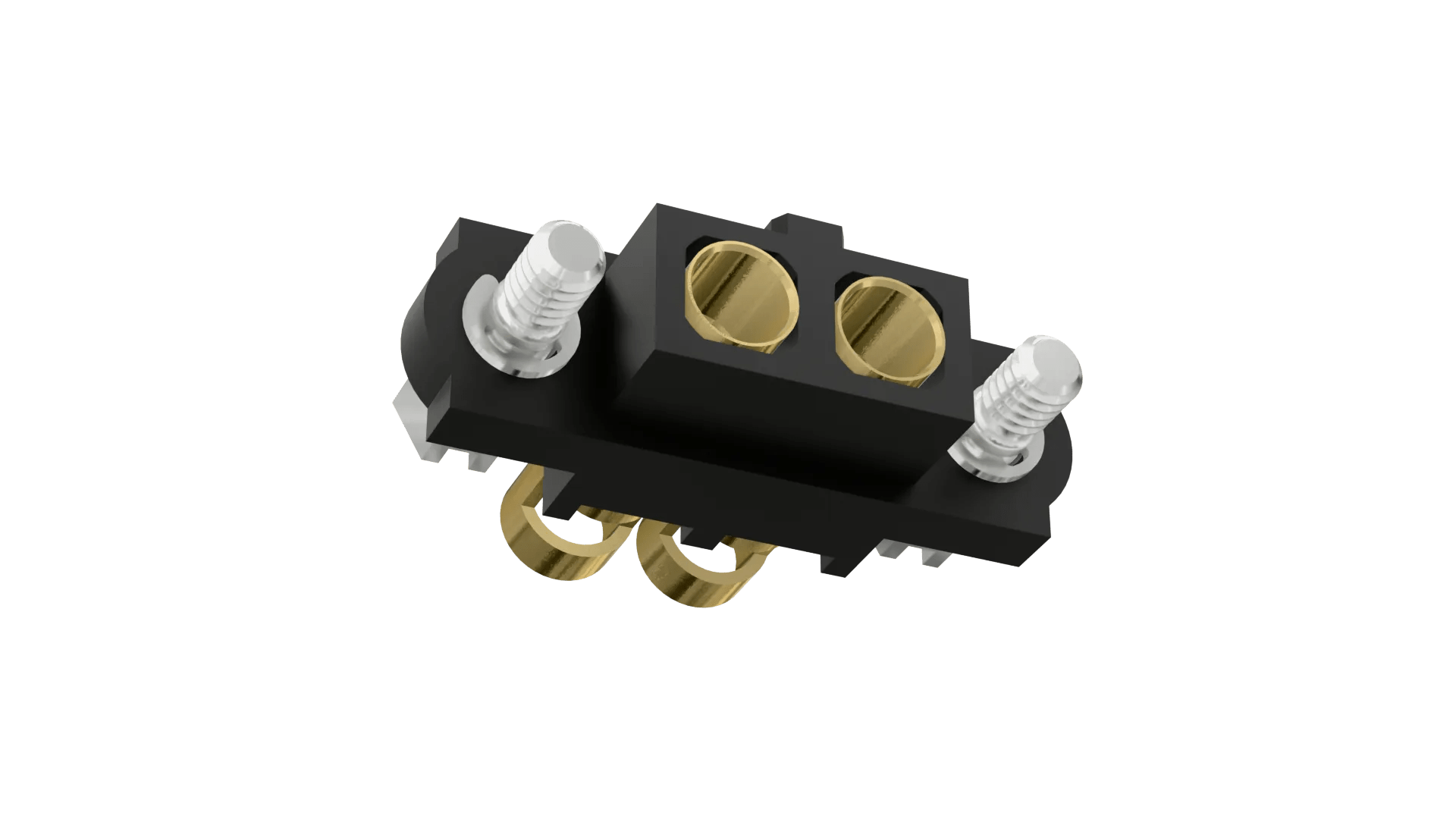

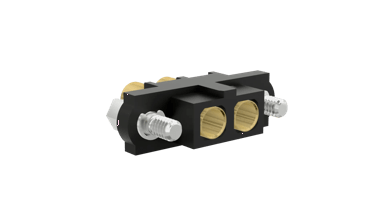

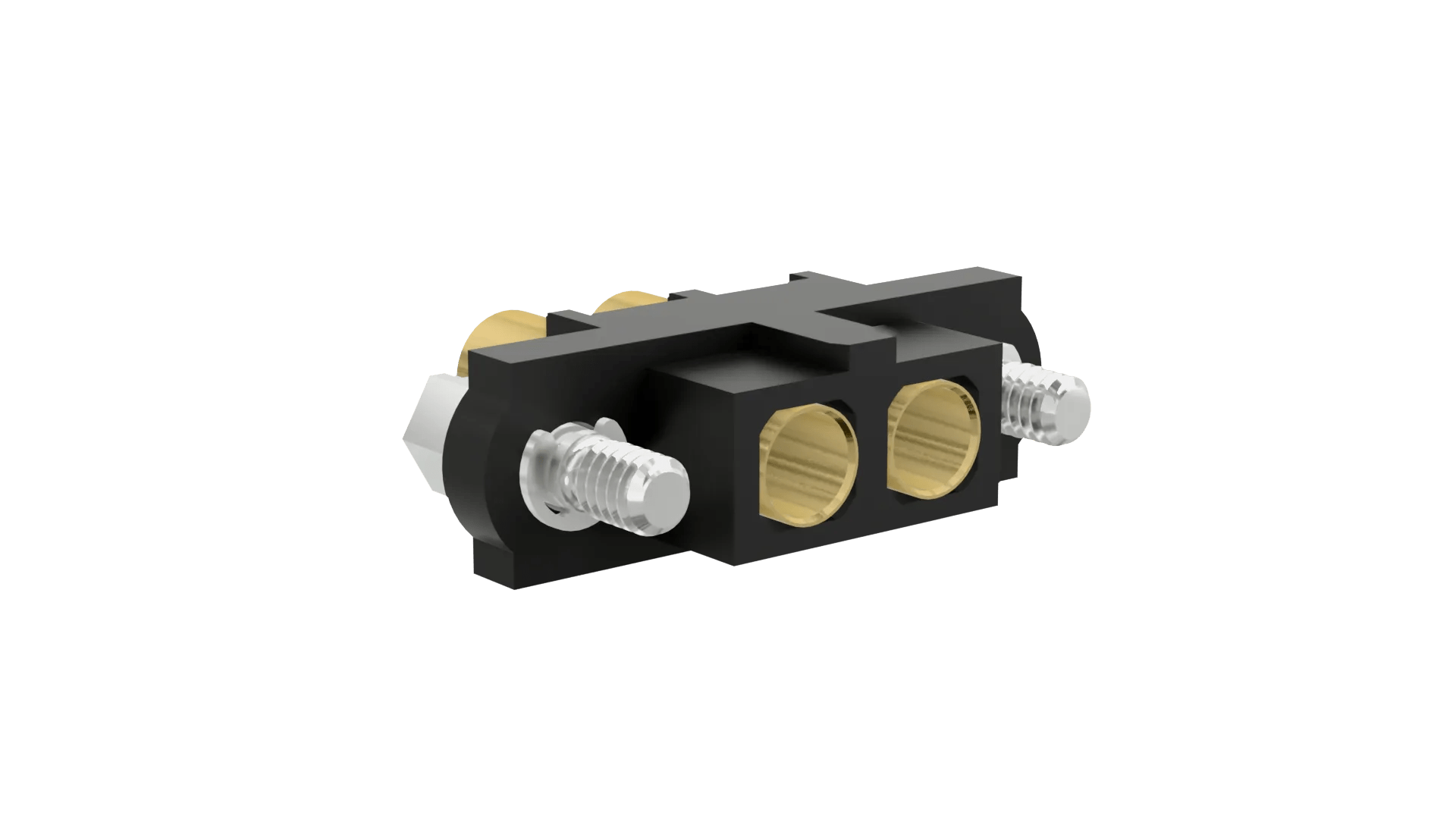

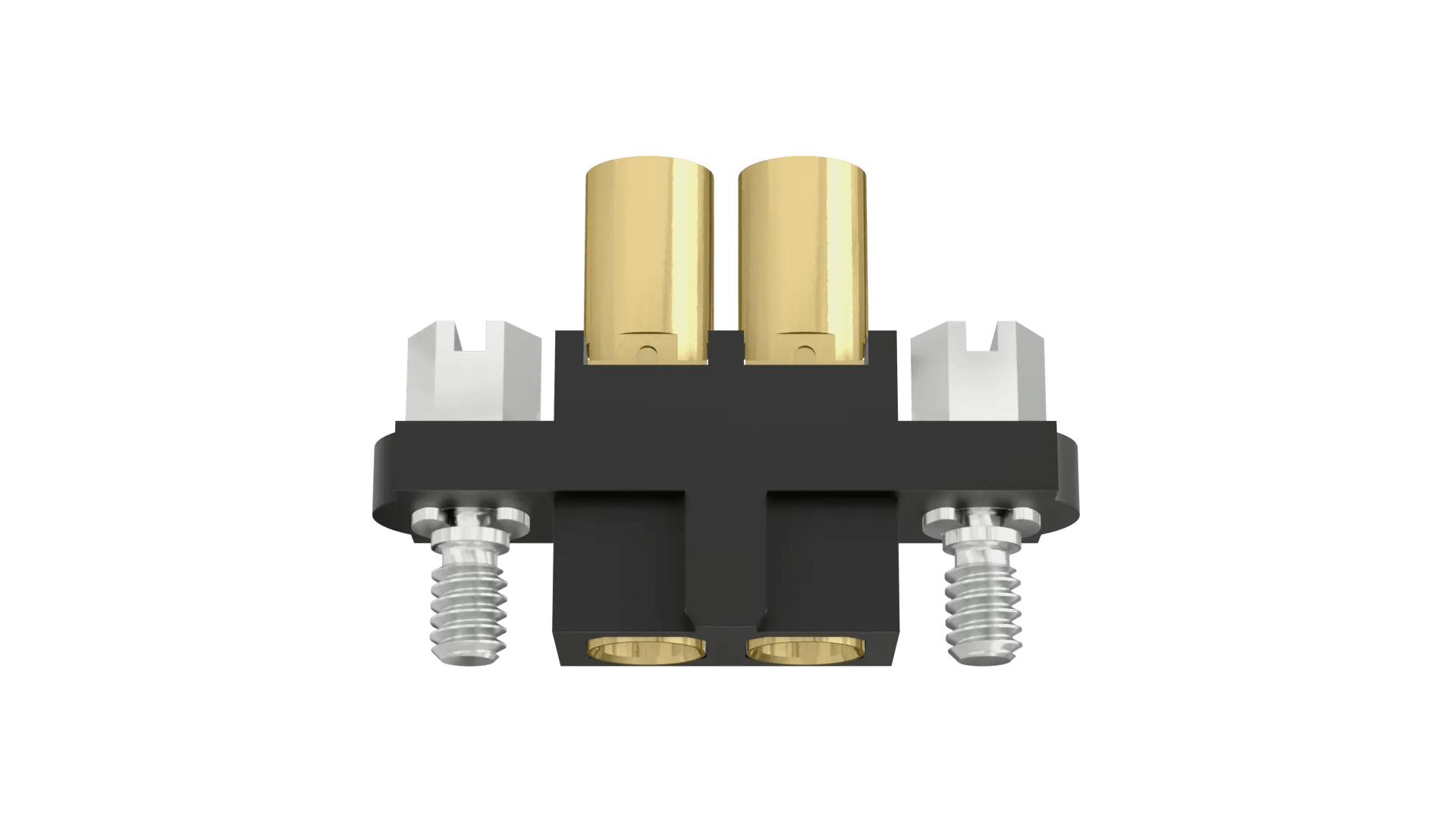

2 Pos. Female SIL 12AWG Cable Assembly, 150mm, single-end, Jackscrew
4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Female Single-Ended with white 12 AWG cable, 150mm (6″) – 2 contacts.
- Manufactured with the M80-4000000F1-02-325-00-000 female Single Row solder connector kit.
- Fitted with floating jackscrews, hex slotted head. Gold finish on connector contact area.
EU RoHS Status:
Cable Conductor Size:
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.30 x 18.00 x 5.50
M80-FC325F1-02-XXXXL CAD Model (ZIP file containing STP and IGES)Download
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
